Cylinder Head Assembly

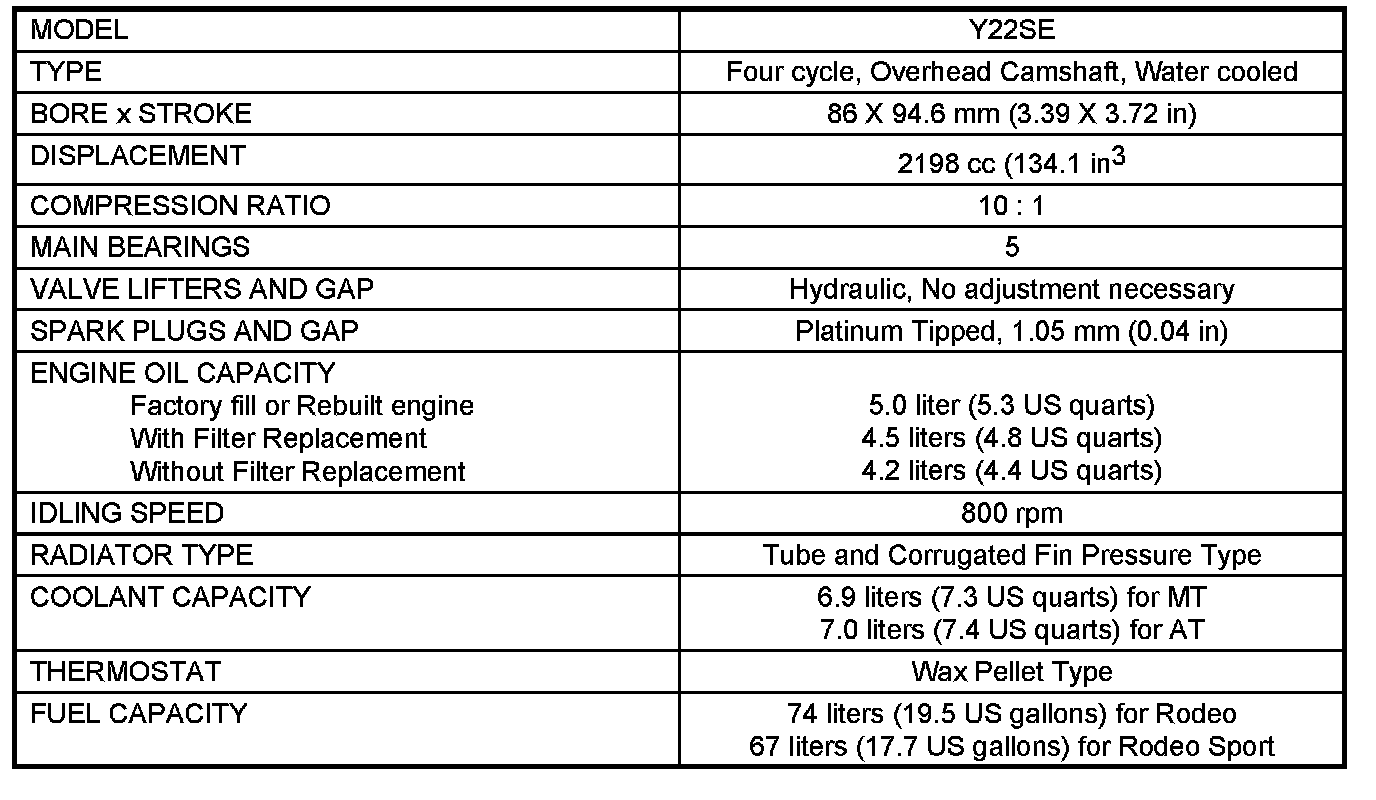

Engine Main Specifications

Torque Specifications

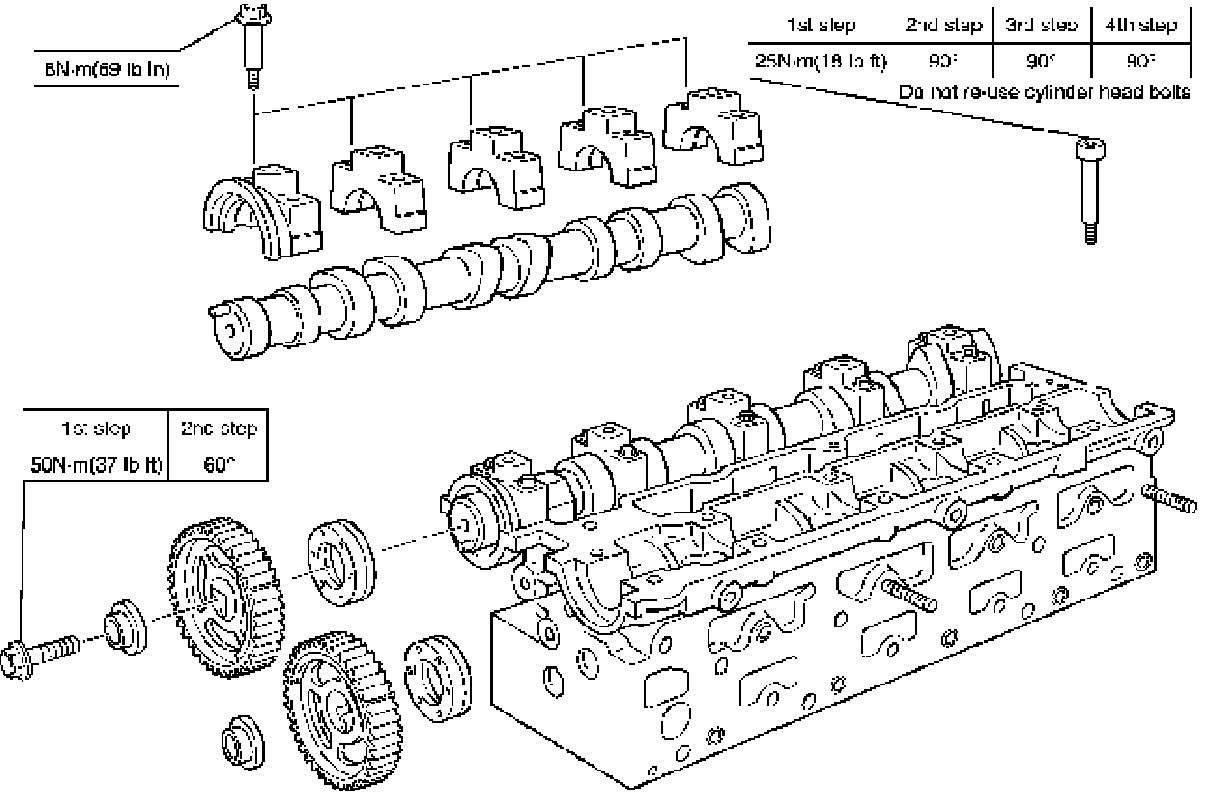

Camshaft Bracket, Timing Gear Camshaft Side, Cylinder Head

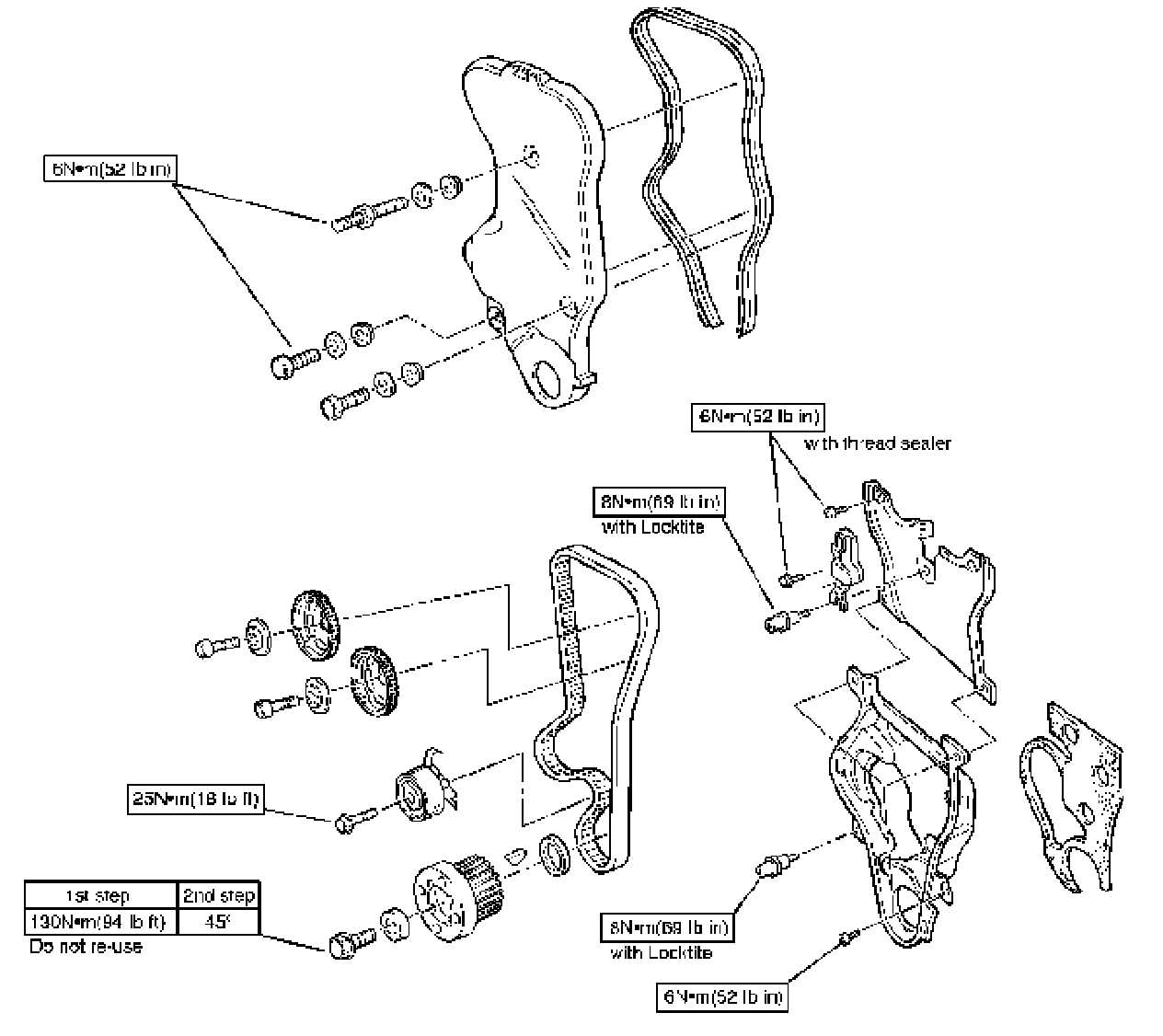

Timing Gear Crankshaft (Center Bolt), Timing Belt Cover Front, Timing Belt Cover Rear, Timing Belt Tensioner, Camshaft Angle Sensor

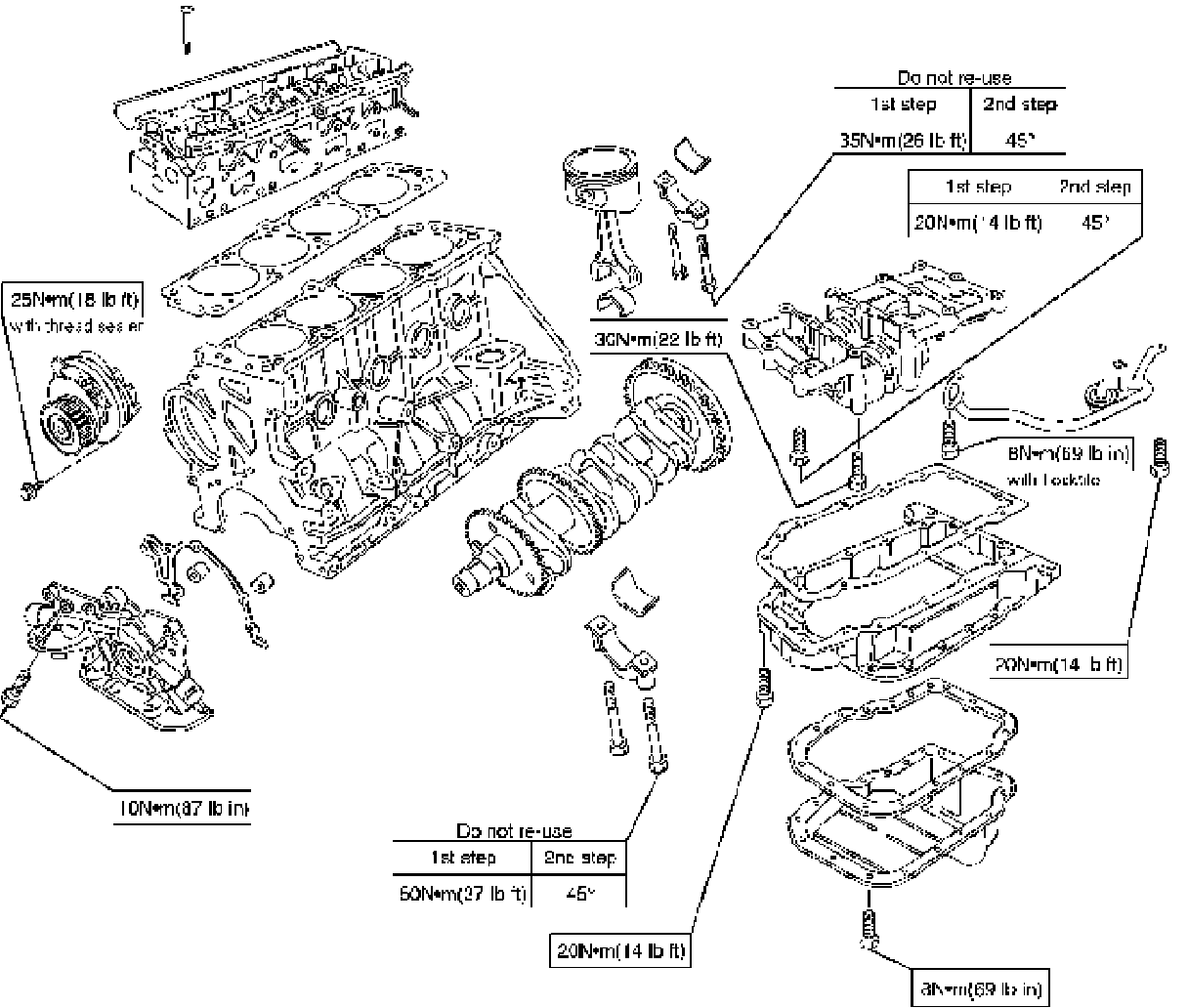

Crankshaft Main Bearing, Oil Pan Support, Oil Pan, Balance Unit Assembly, Cone rod Cap, Oil Pump, Oil Strainer

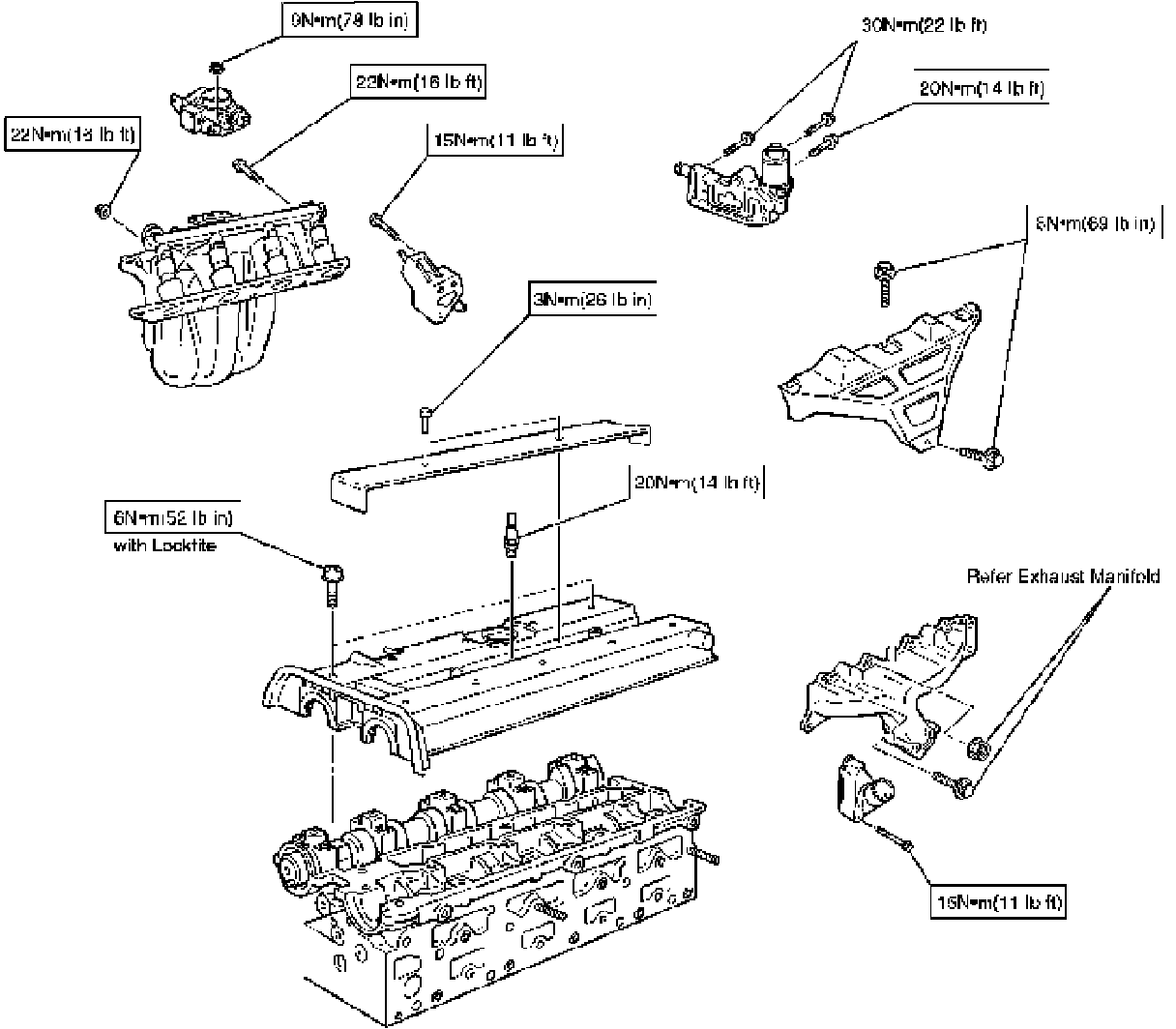

Spark Plug, Throttle Body, EGR Valve Adaptor Assembly, Bypass Housing Assembly, Thermostat Assembly, Inlet Manifold Assembly, Exhaust Manifold Assembly, Heat Shield, Ignition Cable Cover

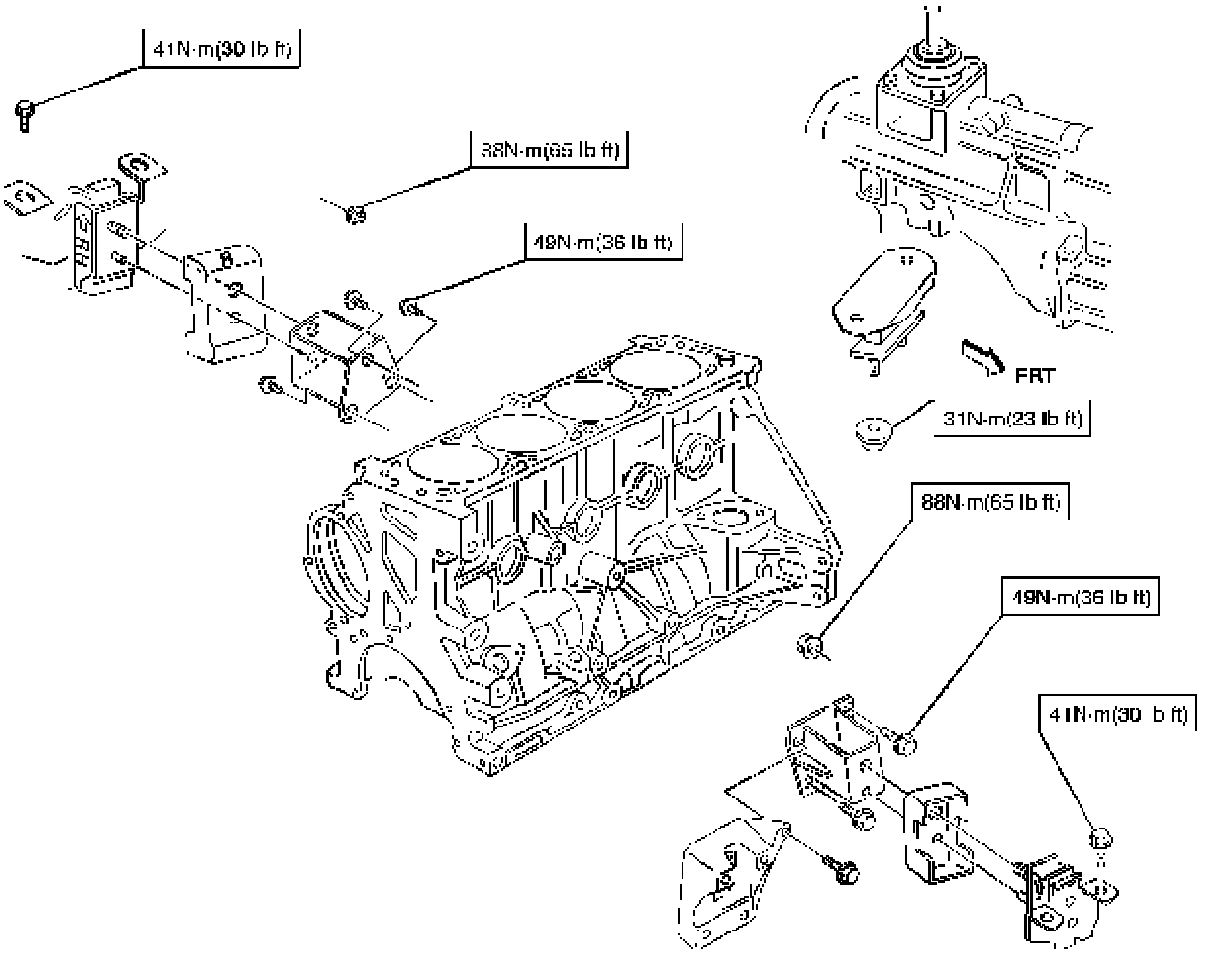

Engine Mount

Refer to procedure for cylinder head bolts tightening torque and sequence and cylinder head service specifications. Service and Repair
