Home >> Isuzu Truck >> 2003 >> Rodeo 2WD L4-2.2L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Schematic Diagrams

Schematic Diagrams

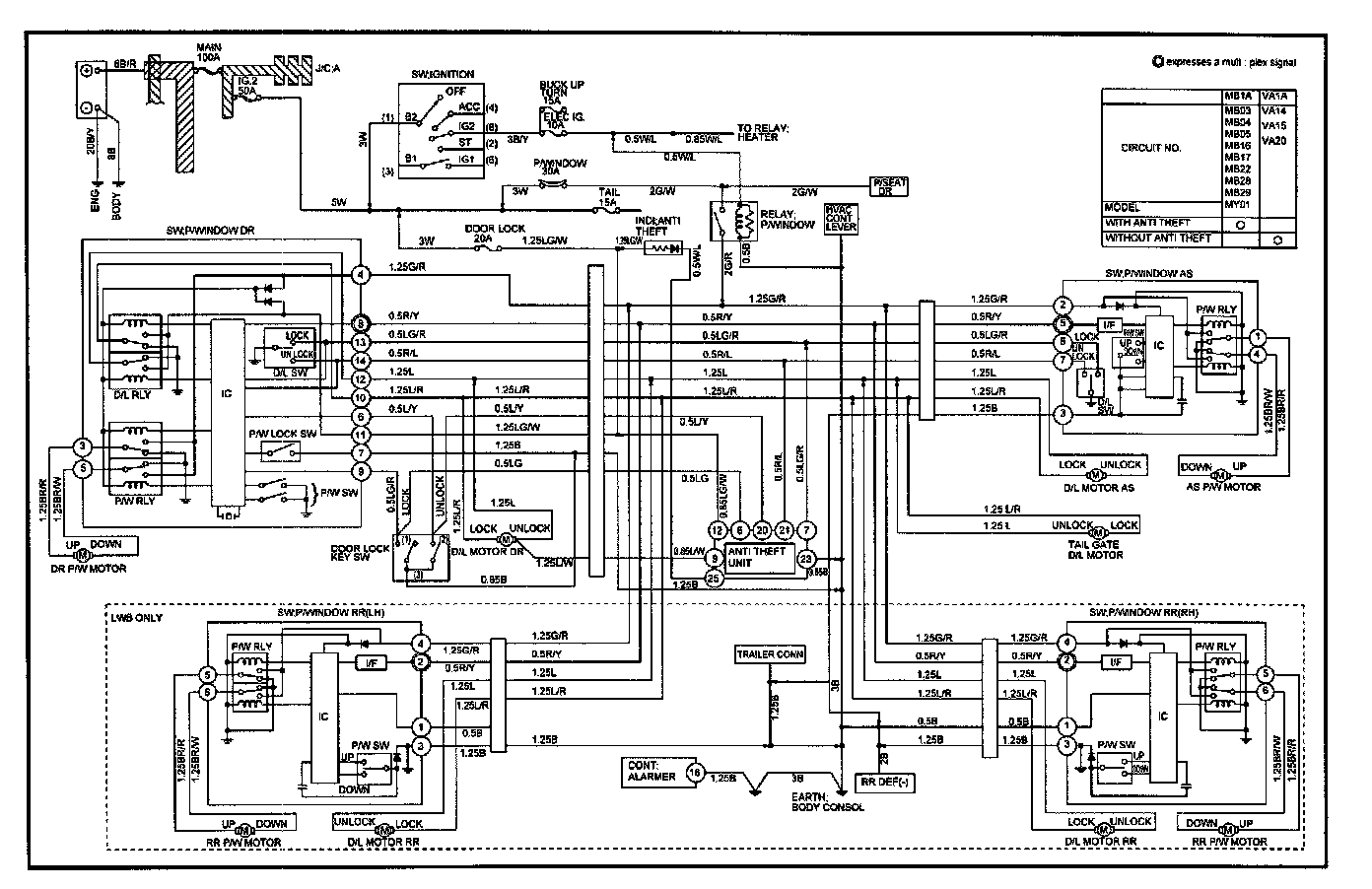

Power Window And Door Lock:
