Home >> Isuzu Truck >> 2004 >> Rodeo 2WD V6-3.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Refrigerant Pressure Sensor / Switch >> Locations

Refrigerant Pressure Sensor / Switch: Locations

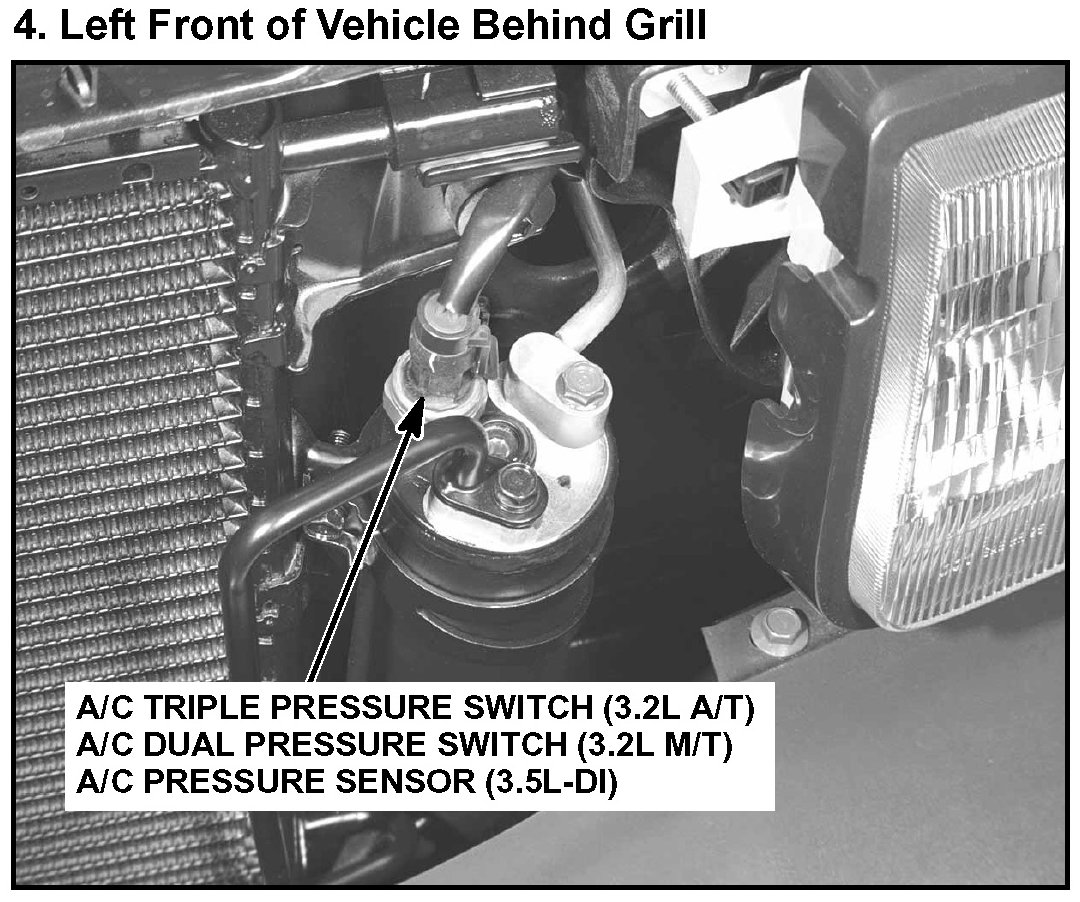

4.Left Front Of Vehicle Behind Grill:
