Isuzu
>>
1982
>>
I-Mark L4-1817cc (G180z)
>>
Repair and Diagnosis
>>
Diagrams
>>
Emission Control Systems
Emission Control Systems

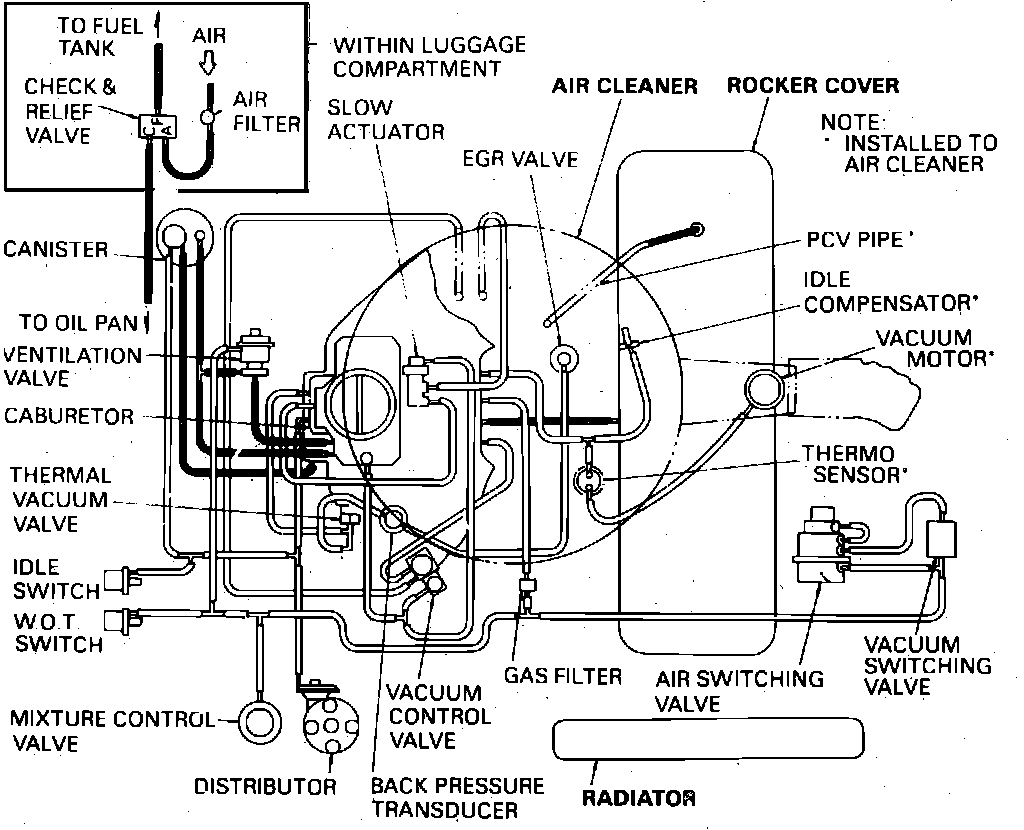

Fig. 2 Emission control vacuum hose routing:
