Blower Motor Relay: Testing and Inspection

Blower Relay Testing:

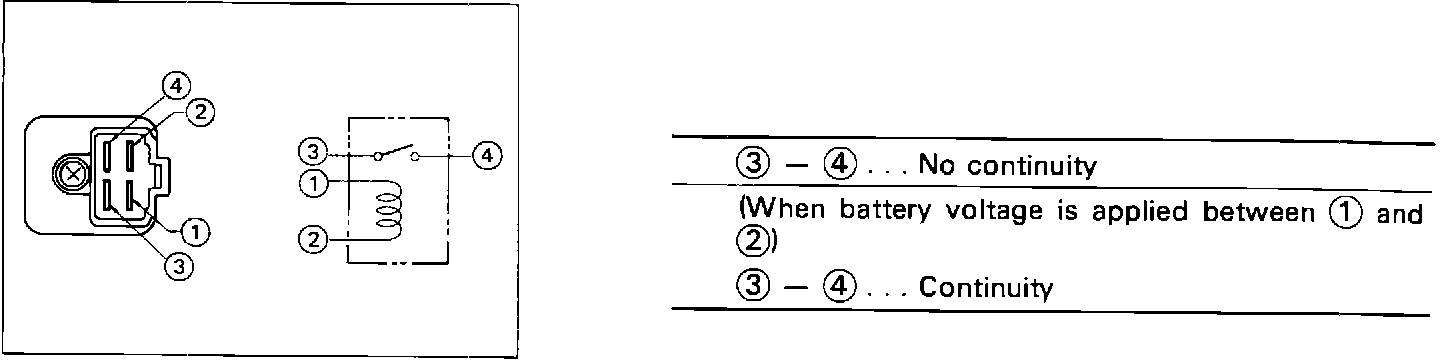

1. Remove relay from blower unit and check continuity between terminals as described on image chart.
2. If not as specified, replace relay.
