Output Shaft: Service and Repair
BORG WARNER 66OUTPUT SHAFT AND RING GEAR
Overhaul
Dismantling

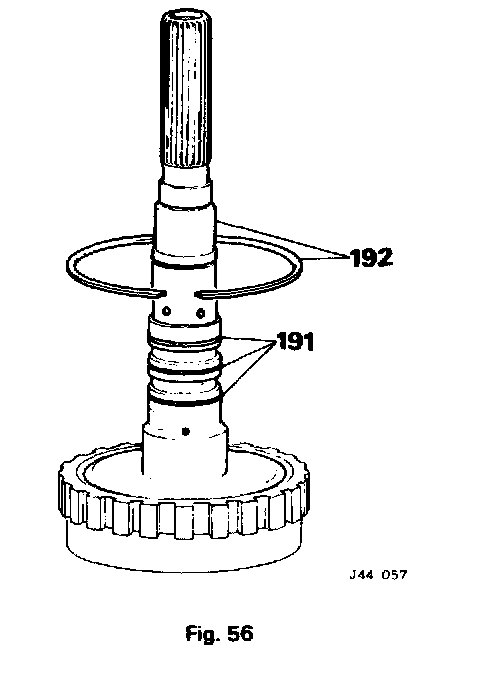

Fig. 56:
191. Remove and discard the sealing rings from the output shaft (Fig. 56).
192. Remove the snap-ring retaining the Output shaft; withdraw the shaft (Fig. 56).
Inspection
193. Check the drillings in the output shaft for obstruction; clear with compressed air Only.
194. Check the splines, sealing ring grooves and gear teeth for burrs or signs of damage; renew if damaged. Minor burrs may, however, be removed with a very fine abrasive.
195. Check bush for scores or evidence of metal transfer. Should damage be evident, Output shaft must be renewed.
Reassembling
Reverse operations 191 and 192.
CAUTION: Ensure that the gaps in the sealing rings are staggered.
