Parking Brake Warning Switch: Service and Repair

Parking Brake Switch

Removal

Vehicles with manual transmission

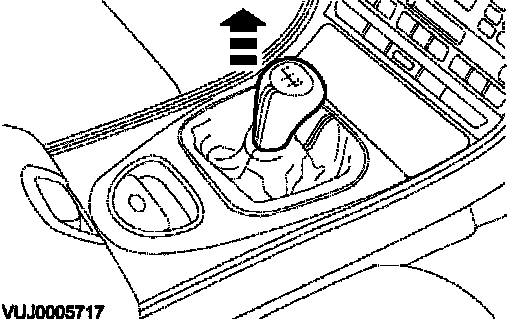

1. Remove the gearshift lever.

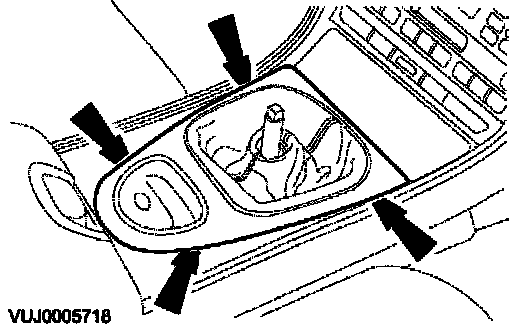

2. Remove the gearshift lever trim cover.

Vehicles with automatic transmission

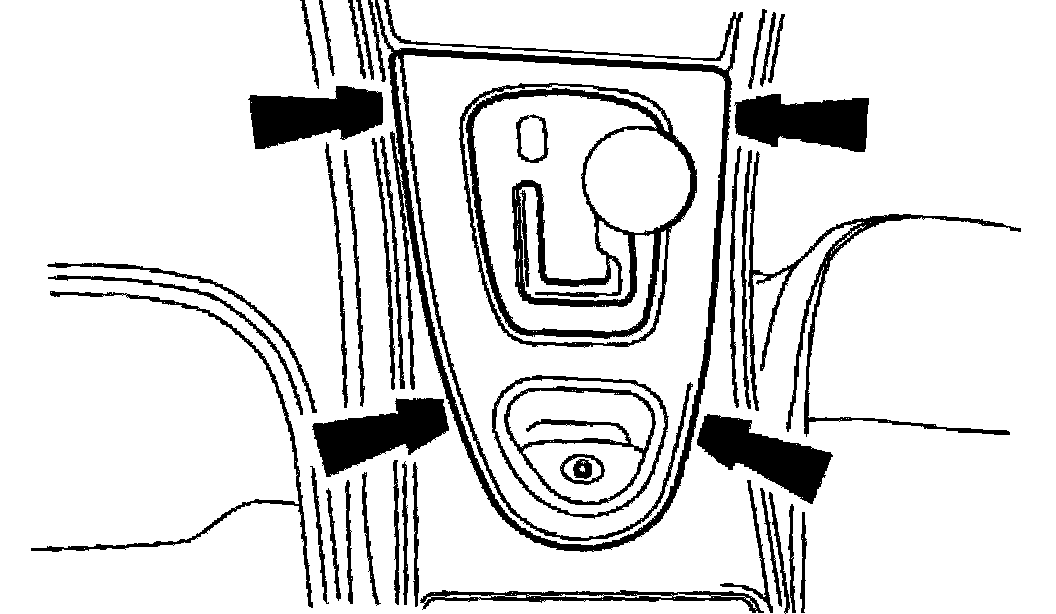

3. Remove the J gate surround.

All vehicles

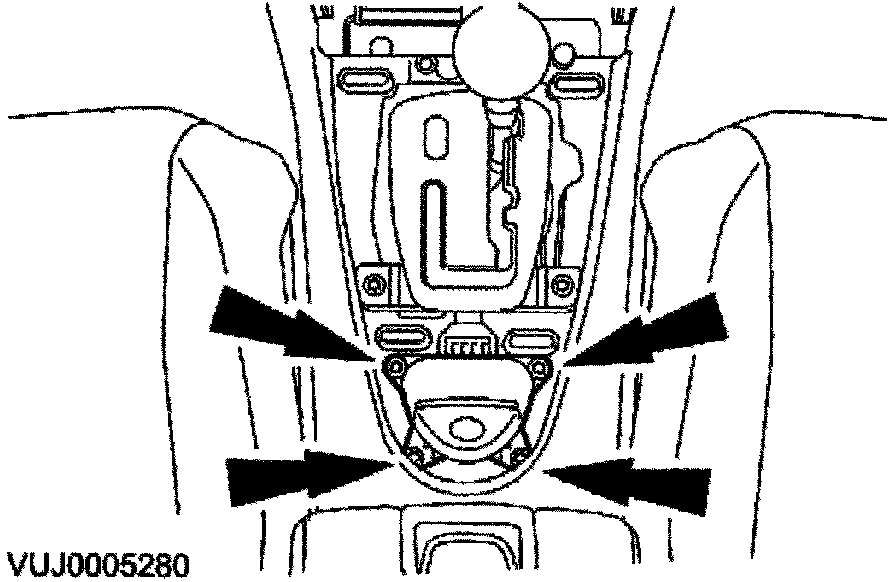

4. Remove the parking brake switch retaining screws.





5. Remove the parking brake switch.

Installation
1. To install, reverse the removal procedure.
