Driver Side Register Duct

Driver Side Register Duct (82.20.49)

Removal
1. Lower and extend the steering column to its maximum rearward position.
2. Remove the instrument cluster.

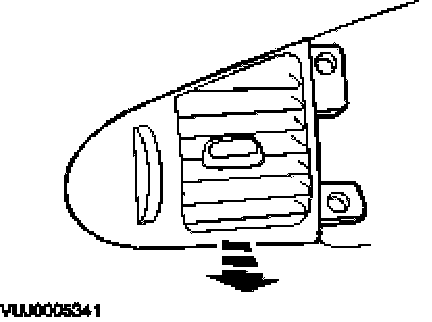

3. Remove the driver side register.

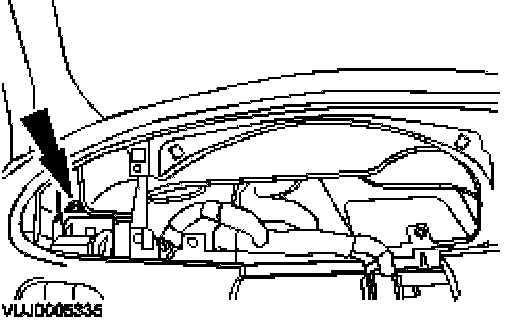

4. Remove the driver side register duct retaining screw.

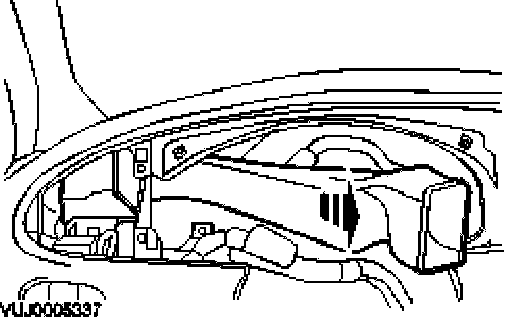

5. Detach the driver side register duct.
- Release the driver side register duct from the instrument panel.
- Detach the driver side register duct.







6. Remove the driver side register duct.







Installation
1. To install, reverse the removal procedure.
- Tighten to 3 Nm.
