Passenger Side Register

Passenger Side Register (82.20.40)

Removal

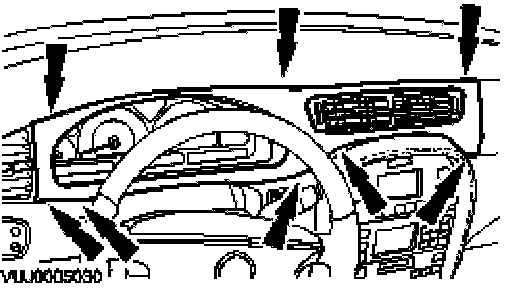

1. Remove the instrument panel finish panel.

CAUTION: Make sure damage does not occur to the instrument panel finish panel.

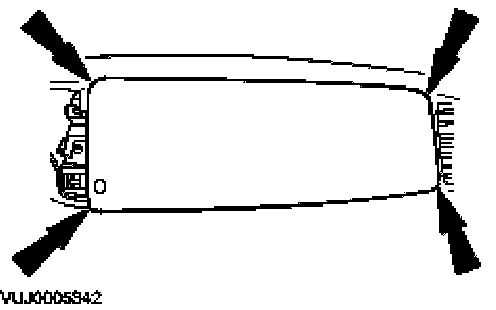

2. Remove the passenger air bag module finish panel.

CAUTION: Make sure damage does not occur to the air bag module finish panel.

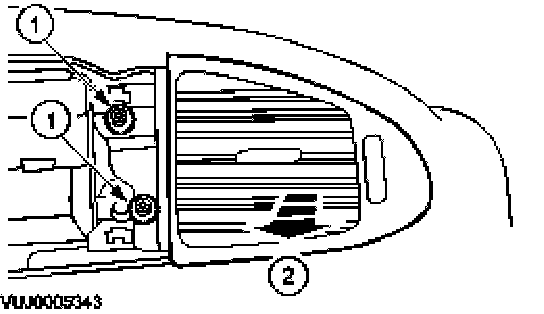

3. Remove the passenger side register.
- Remove the passenger side register retaining screws
- Remove the passenger side register.







Installation
1. To install, reverse the removal procedure.
