Camshaft Bearing

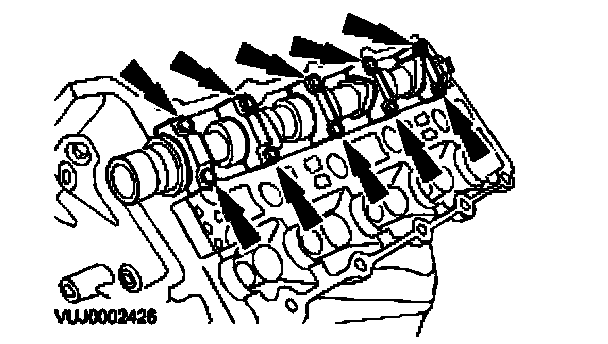

Camshaft RH - VIN Range: M45255->N52206





CAUTION: Alternate bolt tightening to correctly seat the camshaft bearing caps.

Install the camshaft bearing cap bolts evenly.
Tighten to 10 Nm.

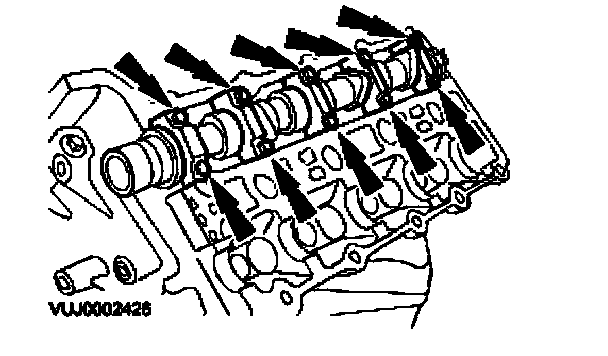

Camshaft RH - VIN Range: N52207->N99999





CAUTION: Alternate bolt tightening to correctly seat the camshaft bearing caps.

Install the camshaft bearing cap bolts evenly.
Tighten to 10 Nm.
