Fluid Filter - A/T: Service and Repair

Fluid Pan, Gasket and Filter (44.24.07)
Removal
1. Disconnect the battery ground cable.
2. Drain the transmission.

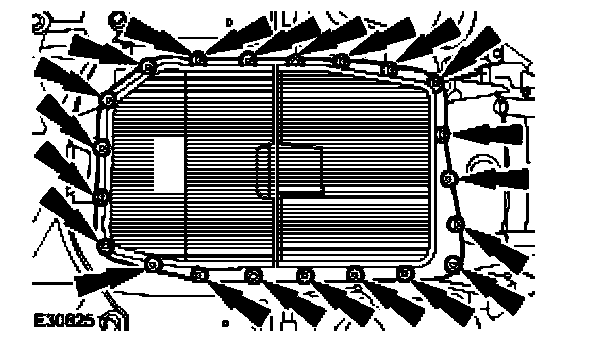

3. Remove the fluid pan, gasket and filter.
^ Remove the retaining bolts.

Installation

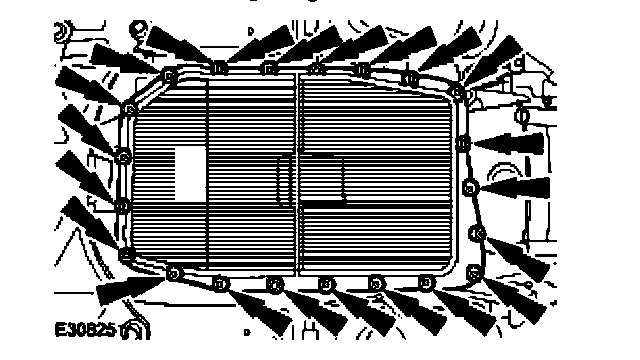

1. Install the new fluid pan, gasket and filter.
^ Tighten to 8 Nm.

2. Lower the vehicle.
3. Connect the battery ground cable.
4. Fill the transmission.
