Driver Side Register

Driver Side Register (82.20.39)

Removal
1. Remove the instrument panel finish panel.

CAUTION: Make sure damage does not occur to the instrument panel finish panel.

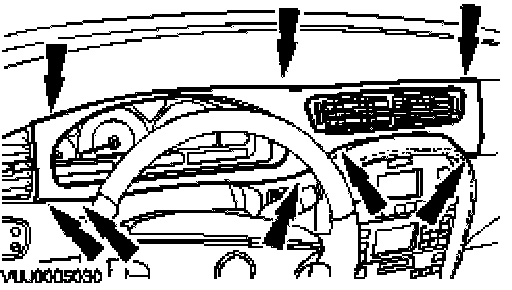

2. Remove the instrument cluster finish panel.
- Remove the retaining screws.
- Remove the instrument cluster finish panel.

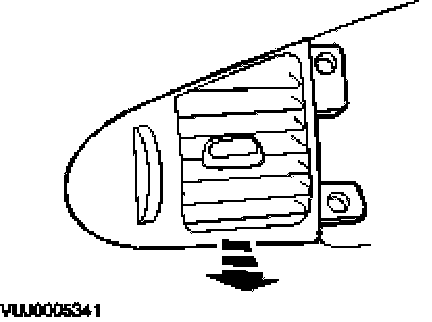

3. Remove the driver side register.







Installation
1. To install, reverse the removal procedure.
