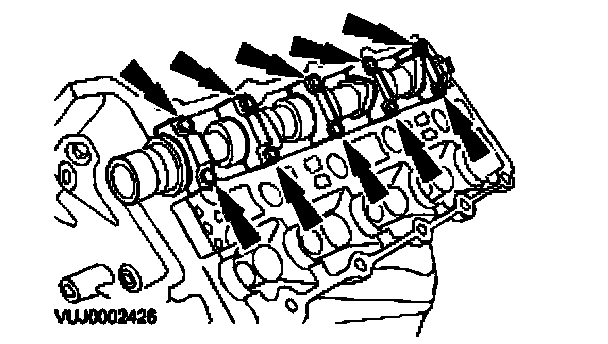

Camshaft Bearing

Camshaft Bearing Cap







First Pass: Alternate bolt tightening to correctly seat the camshaft bearing caps.
Second Pass: Install the camshaft bearing cap bolts evenly.
Final Pass: Tighten 10 Nm
