Fig. 12.2 (Security System)

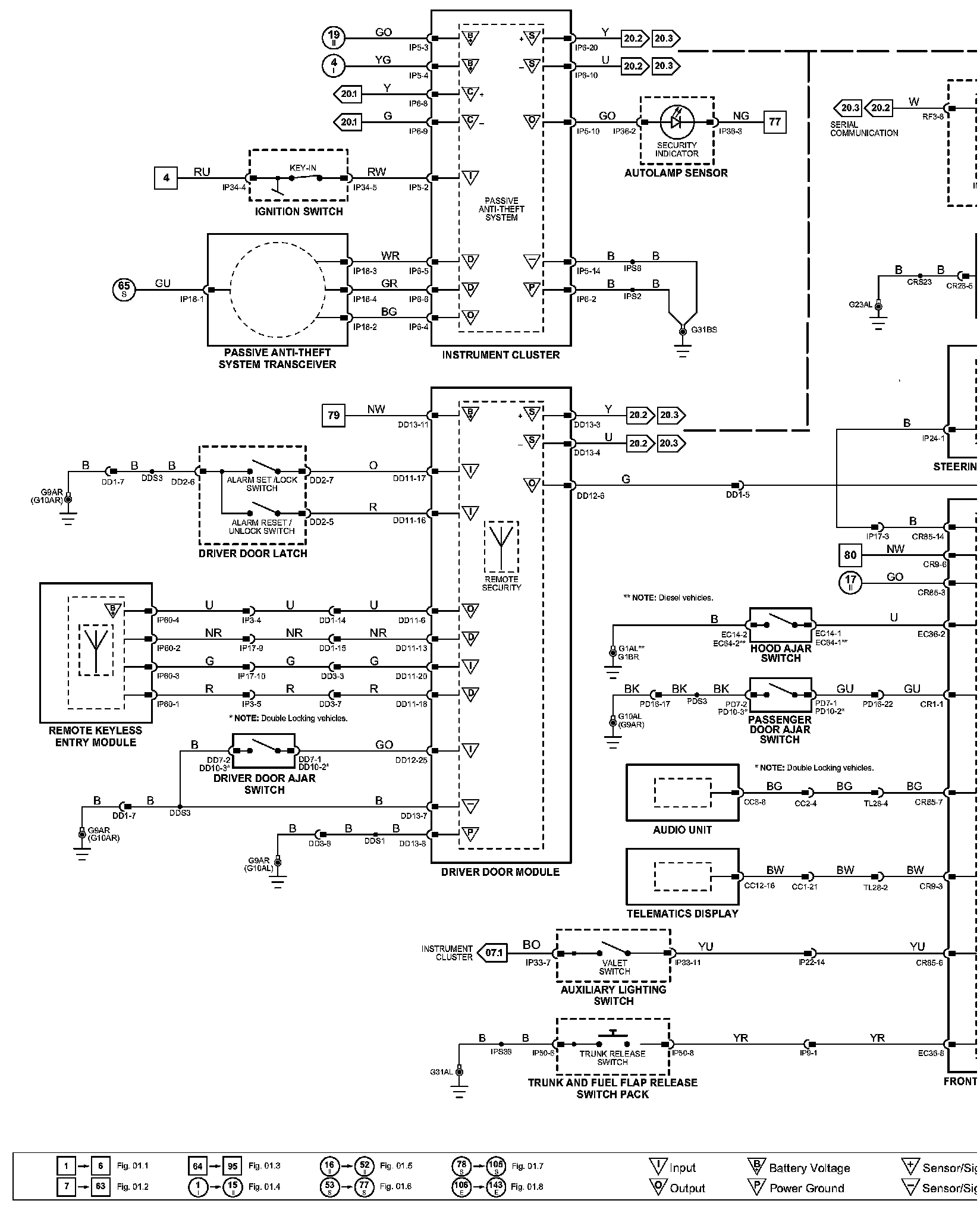

��>Diagram Figure 12.2:

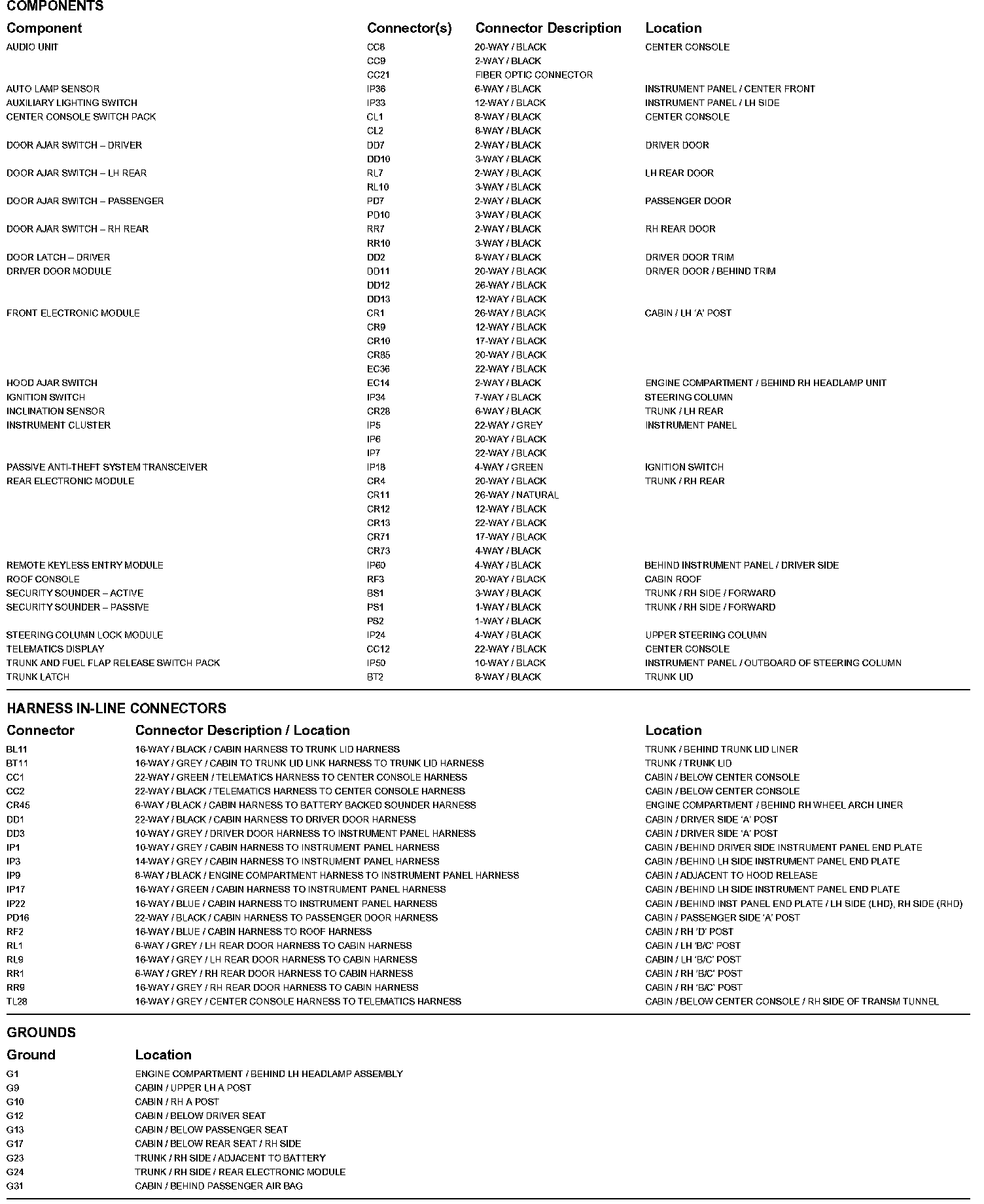

Diagram Data Sheet 12.2 (Part-1):

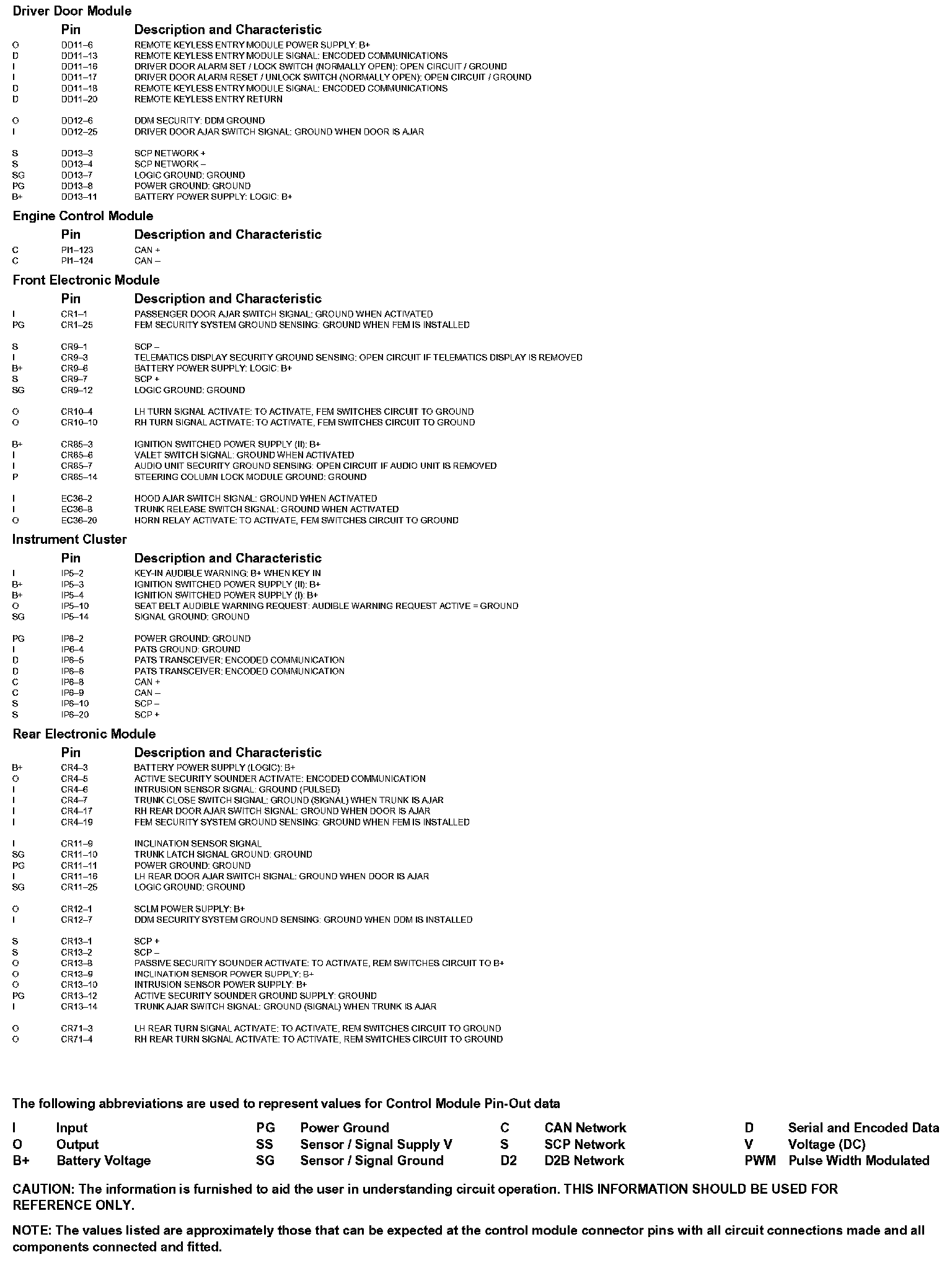

Diagram Data Sheet 12.2 (Part-2):
