Receiver Dryer: Service and Repair

Desiccant Bag - 3.5L/4.2L

Installation
1. Install new desiccant bag retaining screw O-ring seals.
- Lubricate the new O-ring seals with A/C refrigerant oil.

CAUTION: Do not leave the desiccant bag exposed to atmosphere for longer than five minutes.

2. Install the desiccant bag.

NOTE: Un-cap the exposed port.

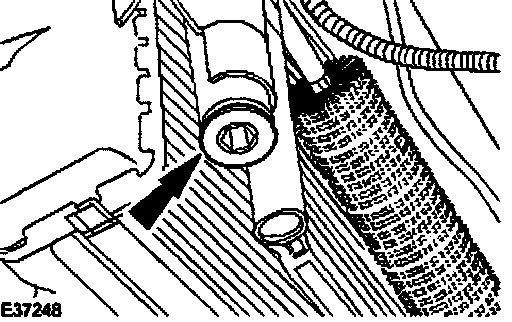

3. Install the retaining screw.
- Tighten to 22 Nm.







4. Clean off any oil residue that may contain A/C system flourescent dye.
5. Install the radiator lower cowl.

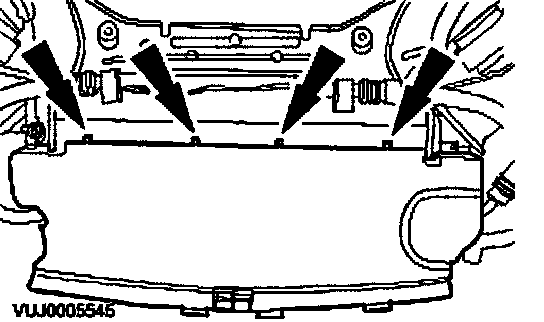

6. Install the radiator splash shield.
7. Lower the vehicle.
8. Carry out the A/C system evacuation and charging procedure.
9. Carry out the A/C system flourescent dye leak detection procedure.
