Leak Detection Valve: Service and Repair

Evaporative Emission Canister Vent Solenoid (17.15.45)

Removal

WARNING:
- Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel related components. Highly flammable vapors are always present and may ignite. Failure to follow these instructions may result in personal injury.
- Do not carry or operate cellular phones when working on or near any fuel related components. Highly flammable vapours are always present and may ignite. Failure to follow these instructions may result in personal injury.

1. Raise and support the vehicle.

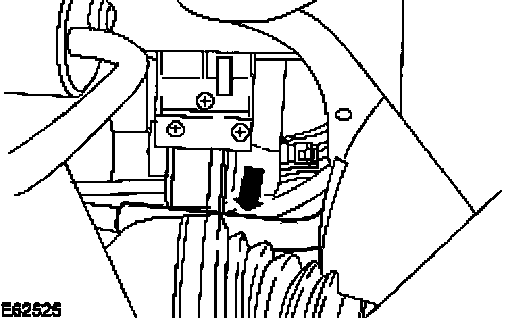

2. Disconnect the evaporative emission canister vent solenoid vapor hose.

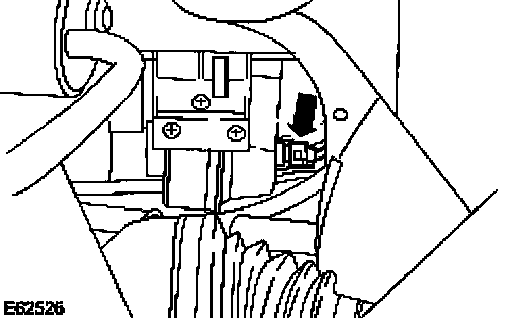

3. Disconnect the evaporative emission canister vent solenoid electrical connector.

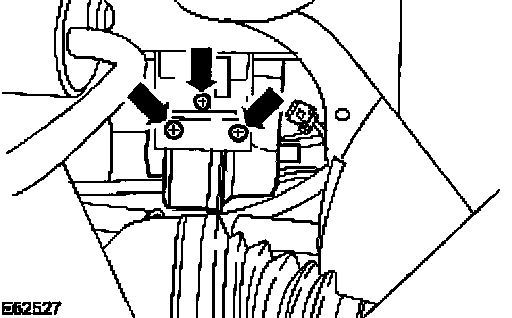

4. Remove the evaporative emission canister vent solenoid.
- Remove and discard the evaporative emission canister vent solenoid O-ring seal.







Installation

NOTE: Install a new evaporative emission canister vent solenoid O-ring seal.

1. To install, reverse the removal procedure.
- Tighten to 6 Nm.
