Navigation Display: Service and Repair

Navigation System Display Module (86.62.07)

Removal
1. Disconnect the battery ground cable.

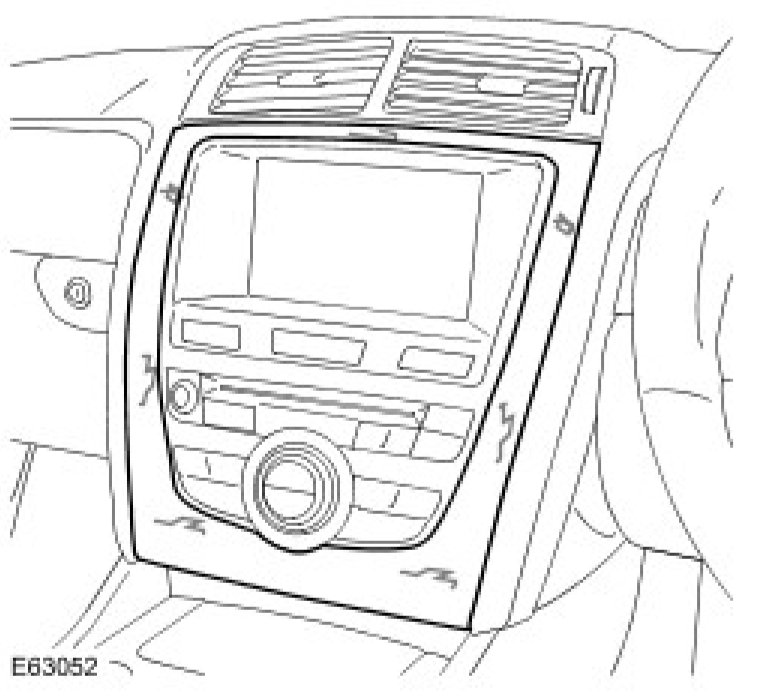

2. Remove the instrument panel center reinforcement trim panel.
- Release from the 5 clips.

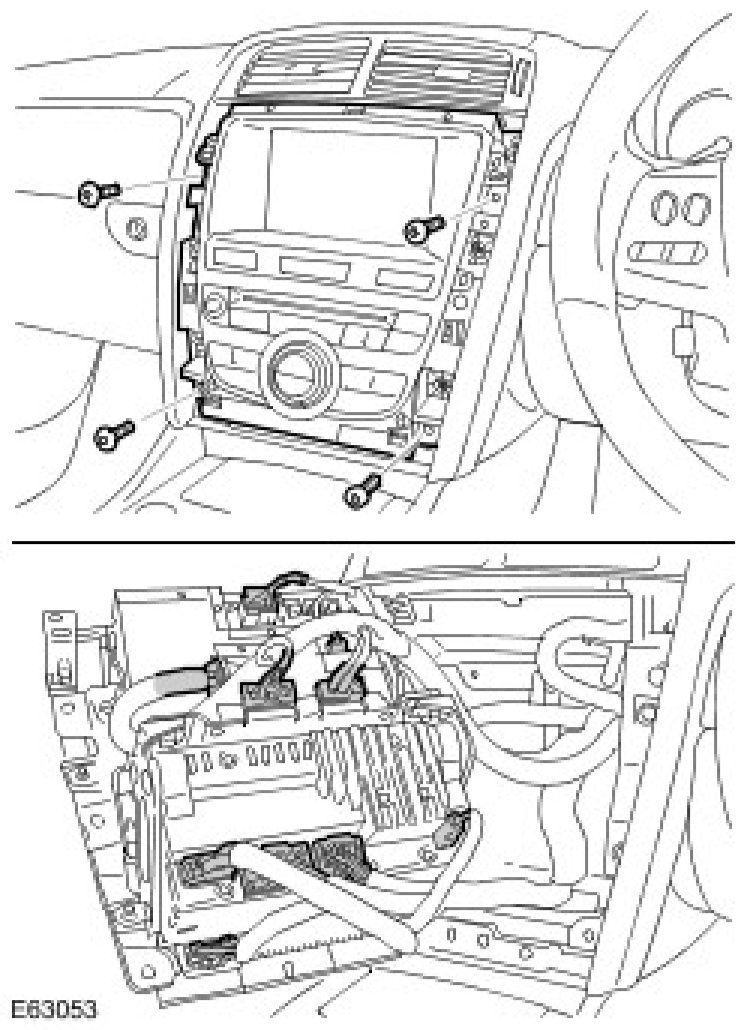

3. Release the navigation system module bracket.
- Remove the 4 Torx screws.
- Disconnect the 10 electrical connectors.
- Release the assembly.

CAUTION: Protect the surrounding trim from damage when changing the component.

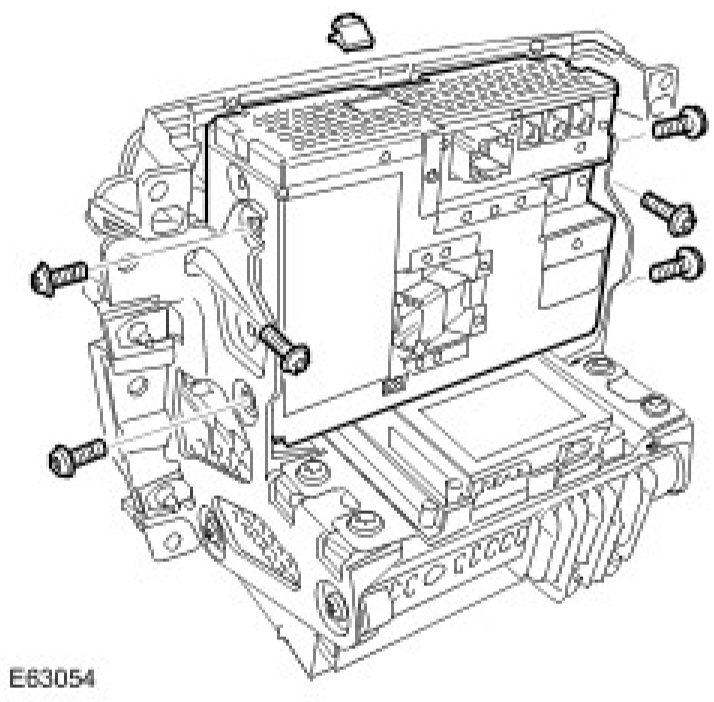

4. Remove the navigation screen module.
- Remove the trim panel veneer upper retaining clip.
- Remove the 2 Torx screws.
- Remove the 4 Torx bolts.

NOTE: Do not disassemble further if the component is removed for access only.







Installation
1. Install the navigation screen module.
- Tighten the Torx bolts to 6 Nm (4 lb.ft).
- Tighten the Torx screws.
- Install the clip.
2. Install the navigation system module bracket.
- Connect the electrical connectors.
- Tighten the Torx screws.
3. Install the instrument panel center reinforcement trim panel.
- Align the pegs and secure with the clips.
4. Connect the battery ground cable.
