Refrigerant Pressure Sensor / Switch: Service and Repair

Pressure Cutoff Switch (82.10.32)

Removal
1. Remove the cover and disconnect the battery ground cable.
2. Recover the A/C refrigerant.
3. Remove the engine cover.

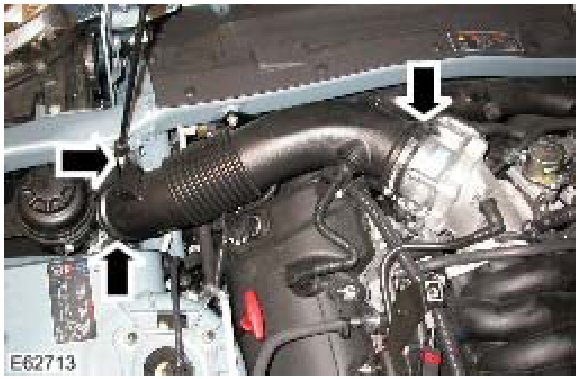

4. Remove the air intake duct.
- Remove the bolt.
- Release the 2 clips.

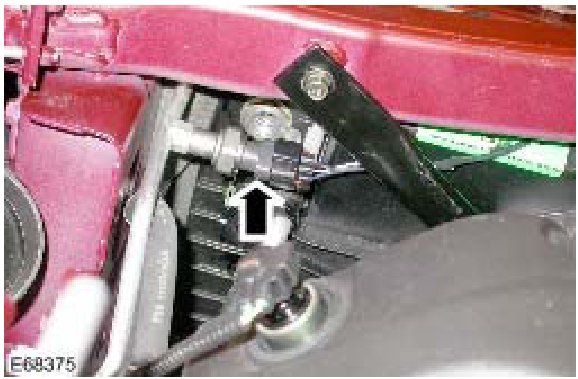

5. Remove the pressure cutoff switch.
- Disconnect the electrical connector.
- Remove and discard the O-ring seal.

CAUTION: Before disconnecting or removing components, ensure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.







Installation
1. Install the pressure cutoff switch.
- Clean the components.
- Install a new O-ring seal.
- Tighten the cutoff switch to 10 Nm (7 lb.ft).
- Connect the electrical connector.

NOTE: Lubricate the O-ring seals with clean refrigerant oil.

2. Install the air intake duct.
- Tighten the clips.
- Tighten the bolt to 10 Nm (7 lb.ft).
3. Recharge the A/C system.
4. Install the engine cover.
5. Connect the battery ground cable and install the cover.
