Front Impact Severity Sensor

Front Impact Severity Sensor

Removal

NOTE: The LH front impact severity sensor is illustrated, removal of the RH sensor is a similar procedure.

1. Open the hood.

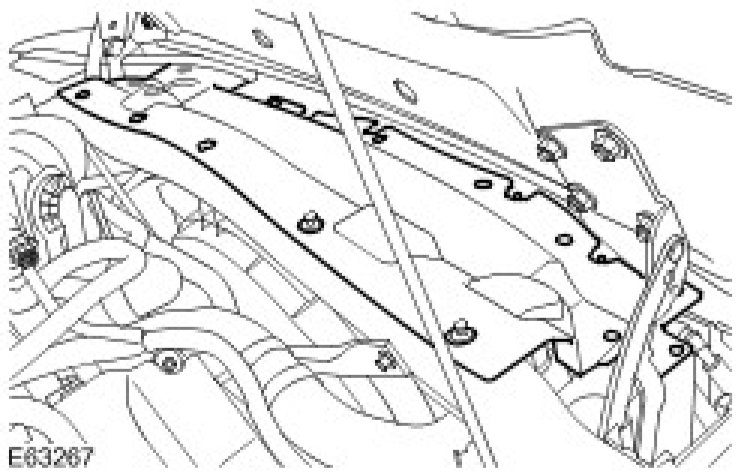

2. Remove the fan cowl.
- Remove the 15 clips.







3. Remove the front impact severity sensor.
- Remove the 2 bolts.
- Disconnect the electrical connector.







Installation
1. Install the front impact severity sensor.
- Connect the electrical connector.
- Tighten the bolts to 8 Nm (6 lb.ft).
2. Install the fan cowl.
- Secure with the clips.
