Ignition Lock Solenoid: Service and Repair

Steering Column Lock Actuator

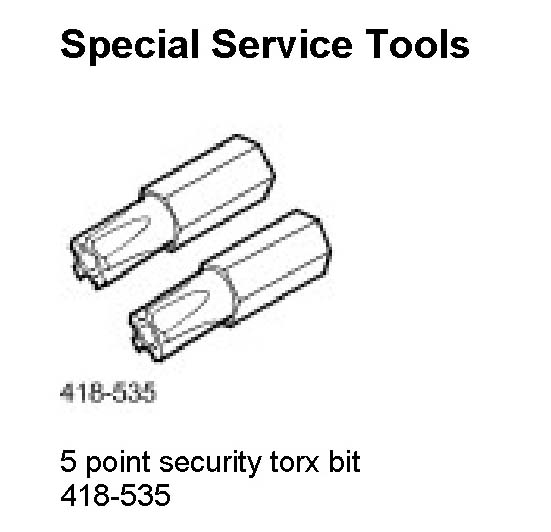

Special Service Tools





Removal
1. Remove the steering column. <<211-04>>
2. Remove the steering column lock actuator.

^ Using the special tool, remove the steering column lock actuator retaining bolts.





Installation
1. To install, reverse the removal procedure.

^ Tighten to 9 Nm.
