Windshield Washer Pump: Service and Repair

Windshield Washer Pump (84.10.21)

Removal
1. Raise and support the vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Remove the RH fender splash shield.
3. Drain the washer reservoir fluid.
- Position a container to collect the fluid.

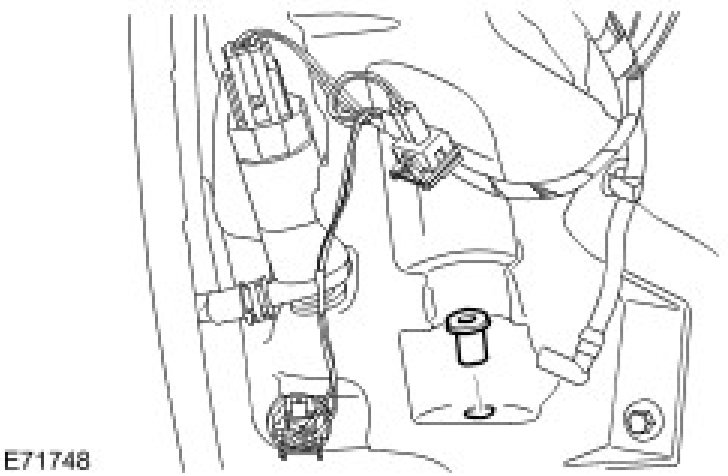

4. Remove the windshield washer pump.
- Disconnect the washer jet hose.
- Disconnect the electrical connector.







5. Remove and discard the seal.







Installation
1. Install a new seal.
2. Install the windshield washer pump.
- Connect and secure the electrical connector.
- Connect the washer jet hose.
3. Install the fender splash shield.
4. Refill the washer reservoir.
