Door Module
>>
Locations
>>
Module-Passenger-Door
Module-Passenger-Door
Module-Passenger-Door

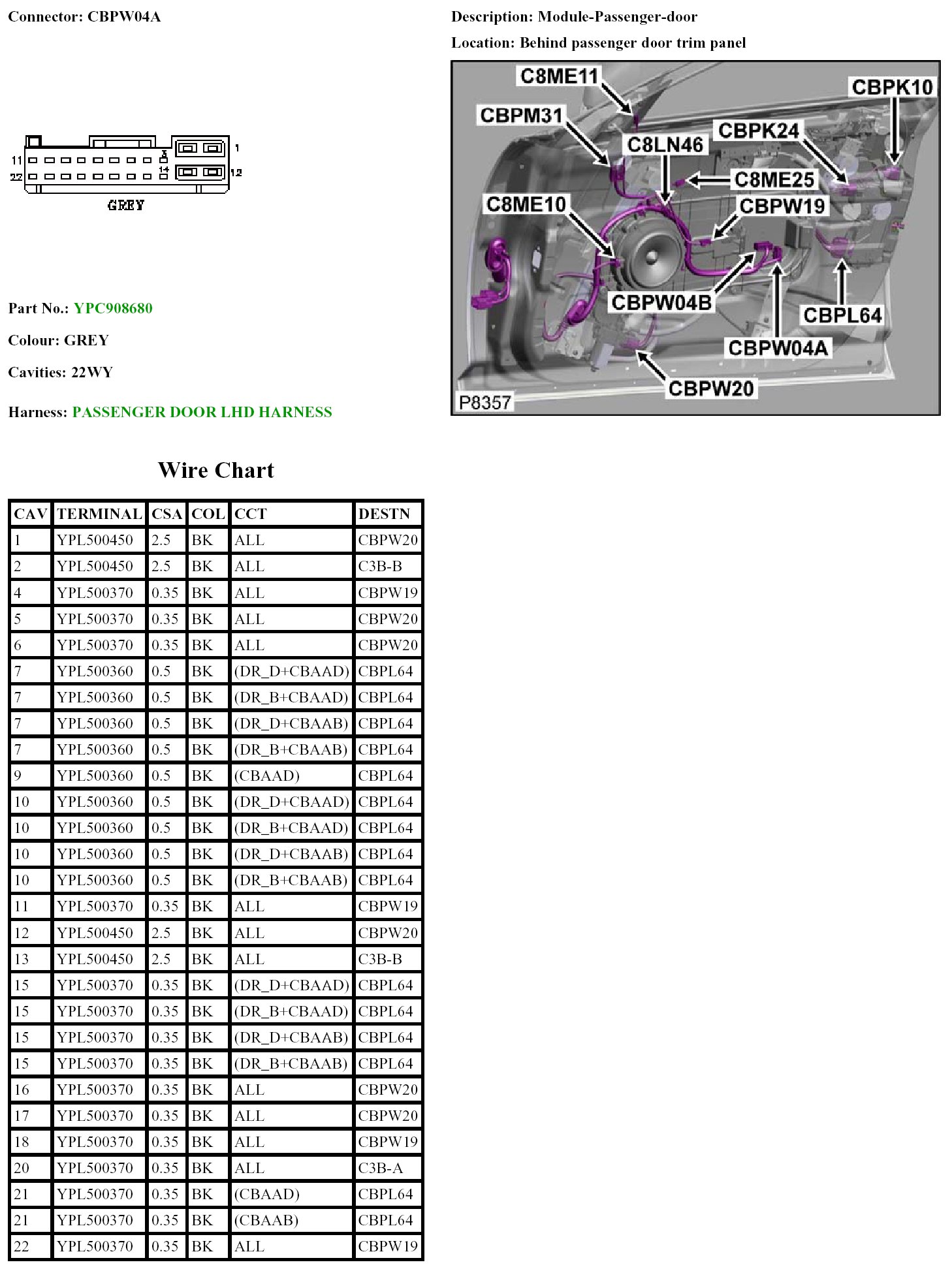

CBPW04A:

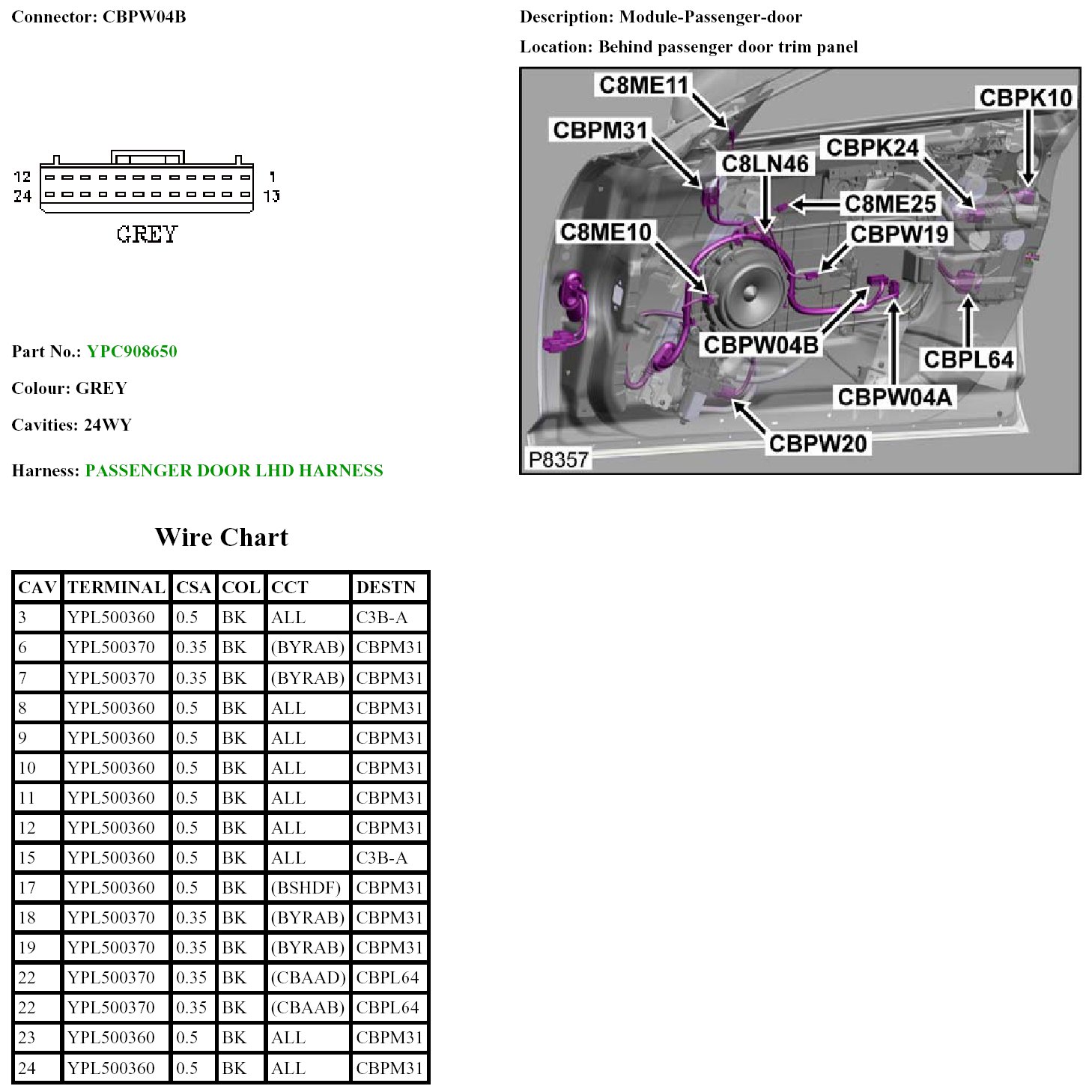

CBPW04B:
