Home >> Jaguar >> 2009 >> XF (X250) V8-4.2L SC >> Repair and Diagnosis >> Locations >> C2CA29 - C23-R >> C23-D

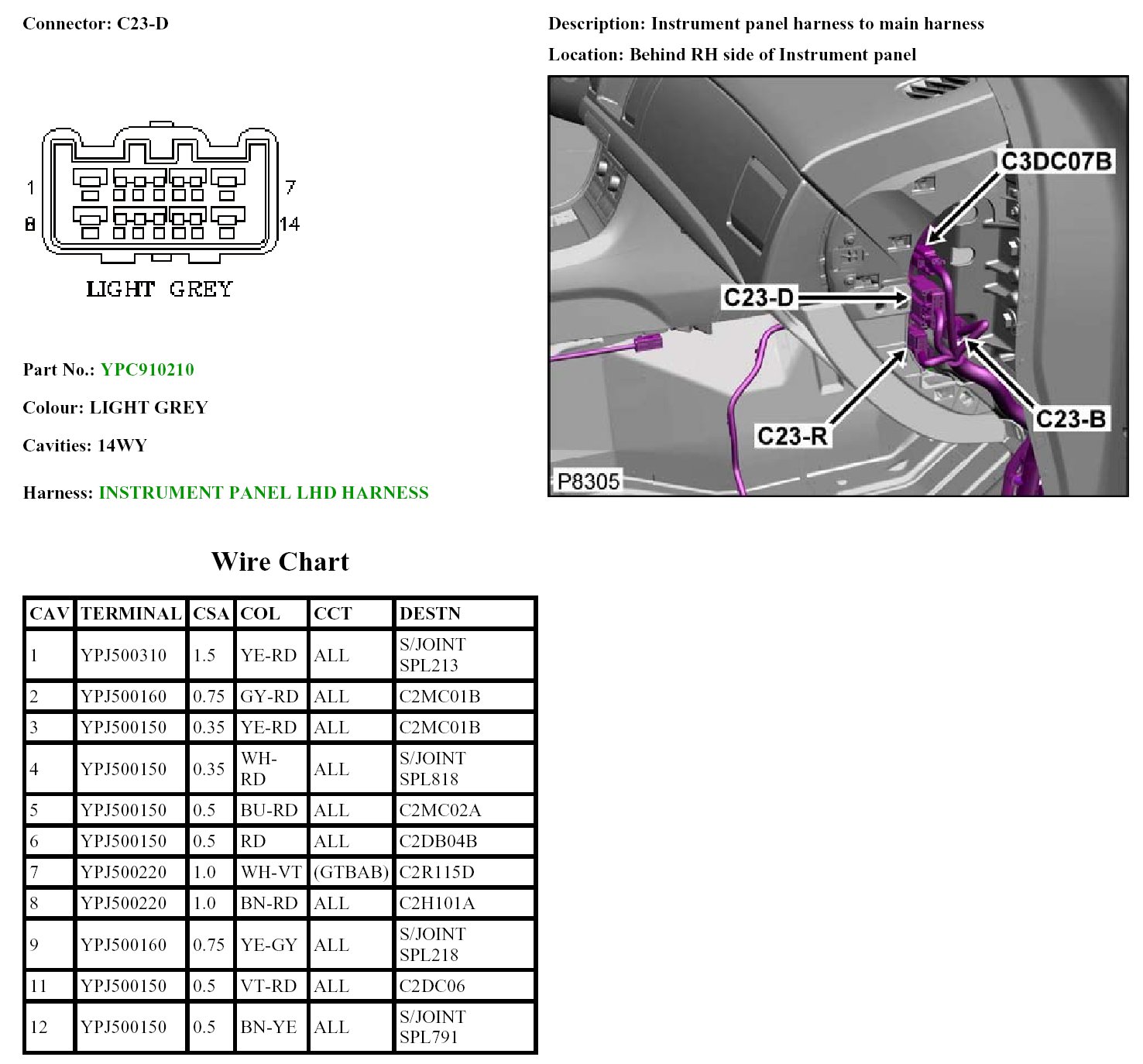

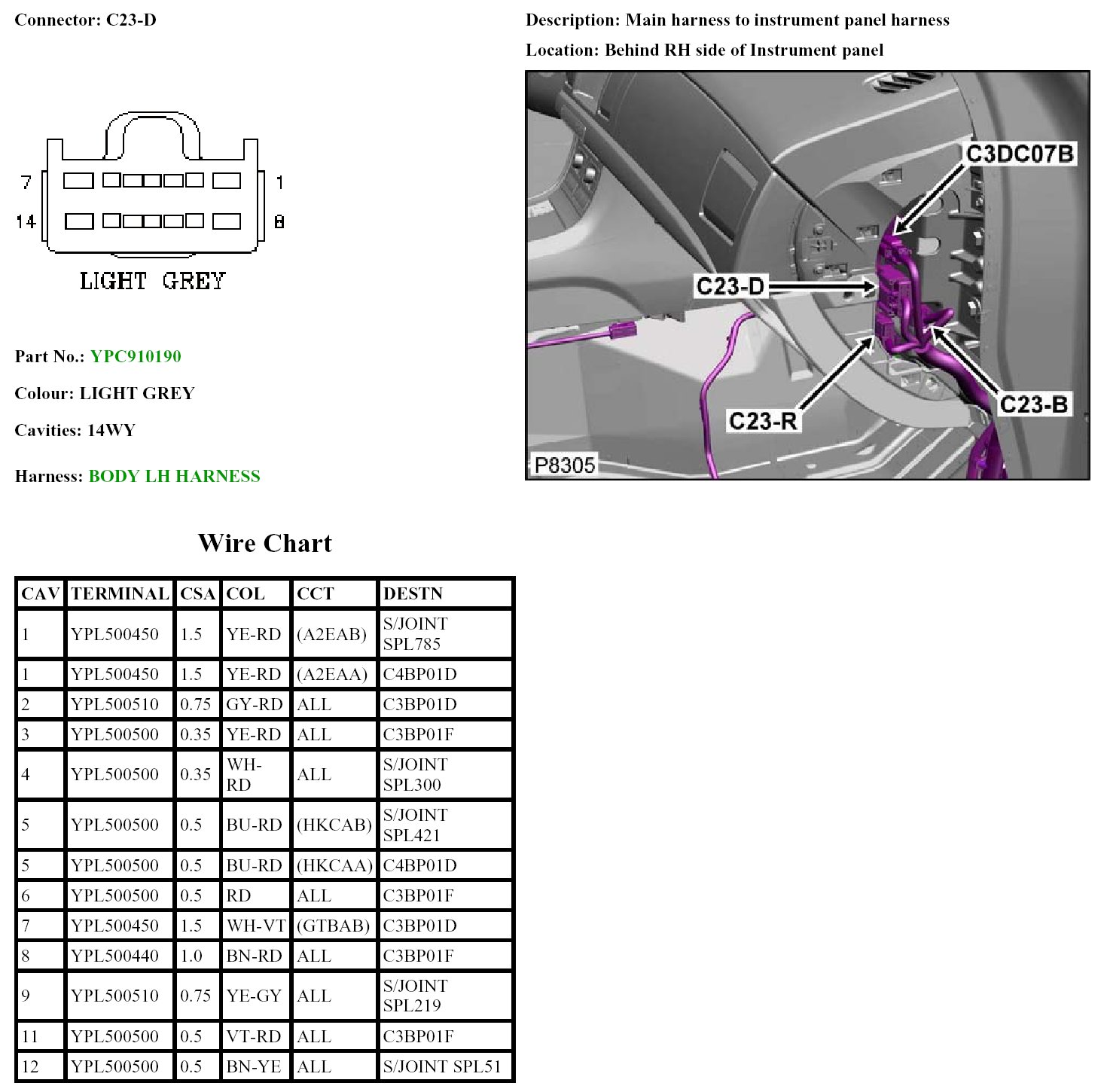

C23-D



C23-D


C23-D:




C23-D:
