Home
>>
Jaguar
>>
2009
>>
XF (X250) V8-4.2L SC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Catalytic Converter
>>
Locations
>>
Sensor-Temperature-Catalytic Converter-Upstream
Sensor-Temperature-Catalytic Converter-Upstream
Sensor-Temperature-Catalytic Converter-Upstream

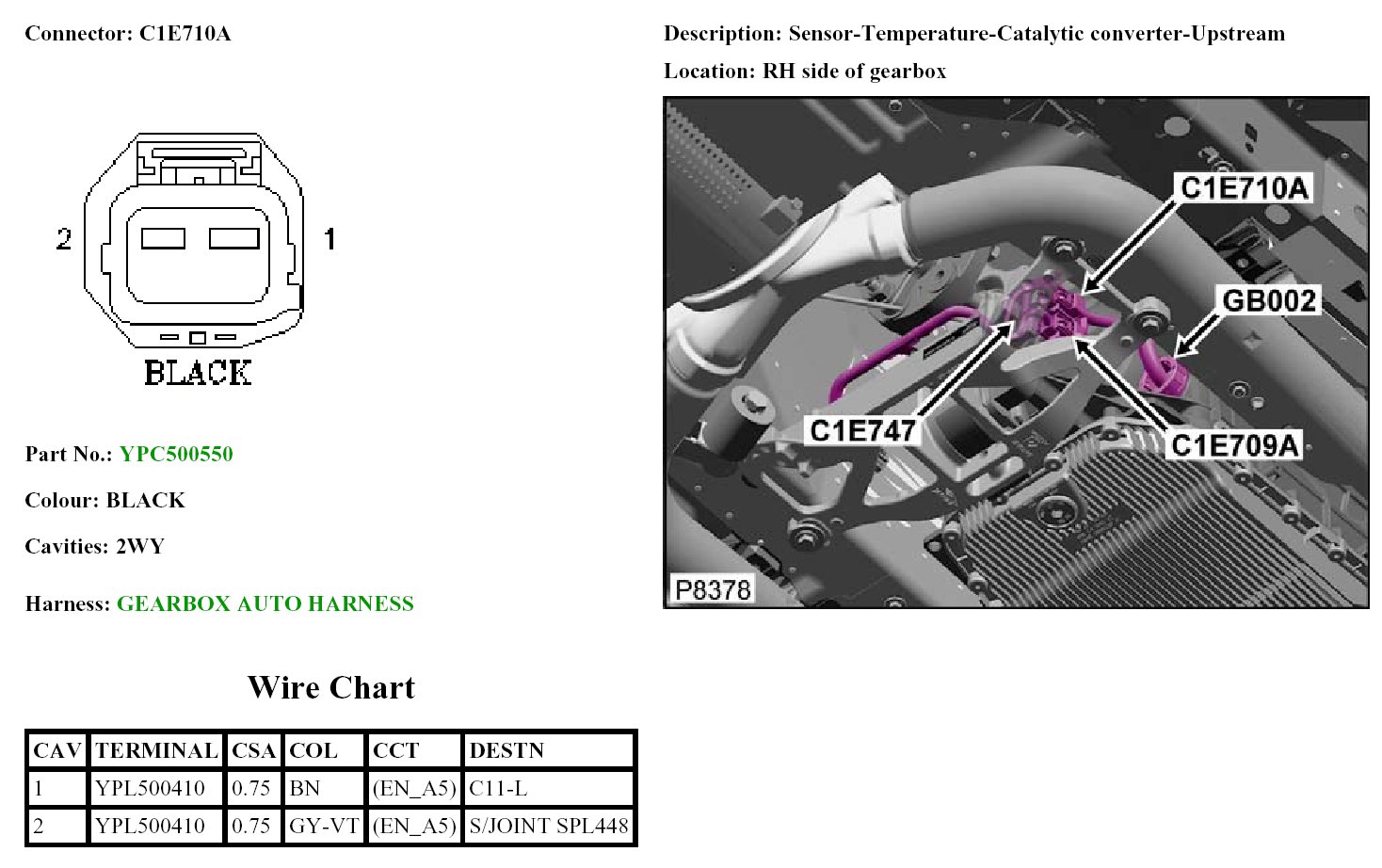

C1E710A:

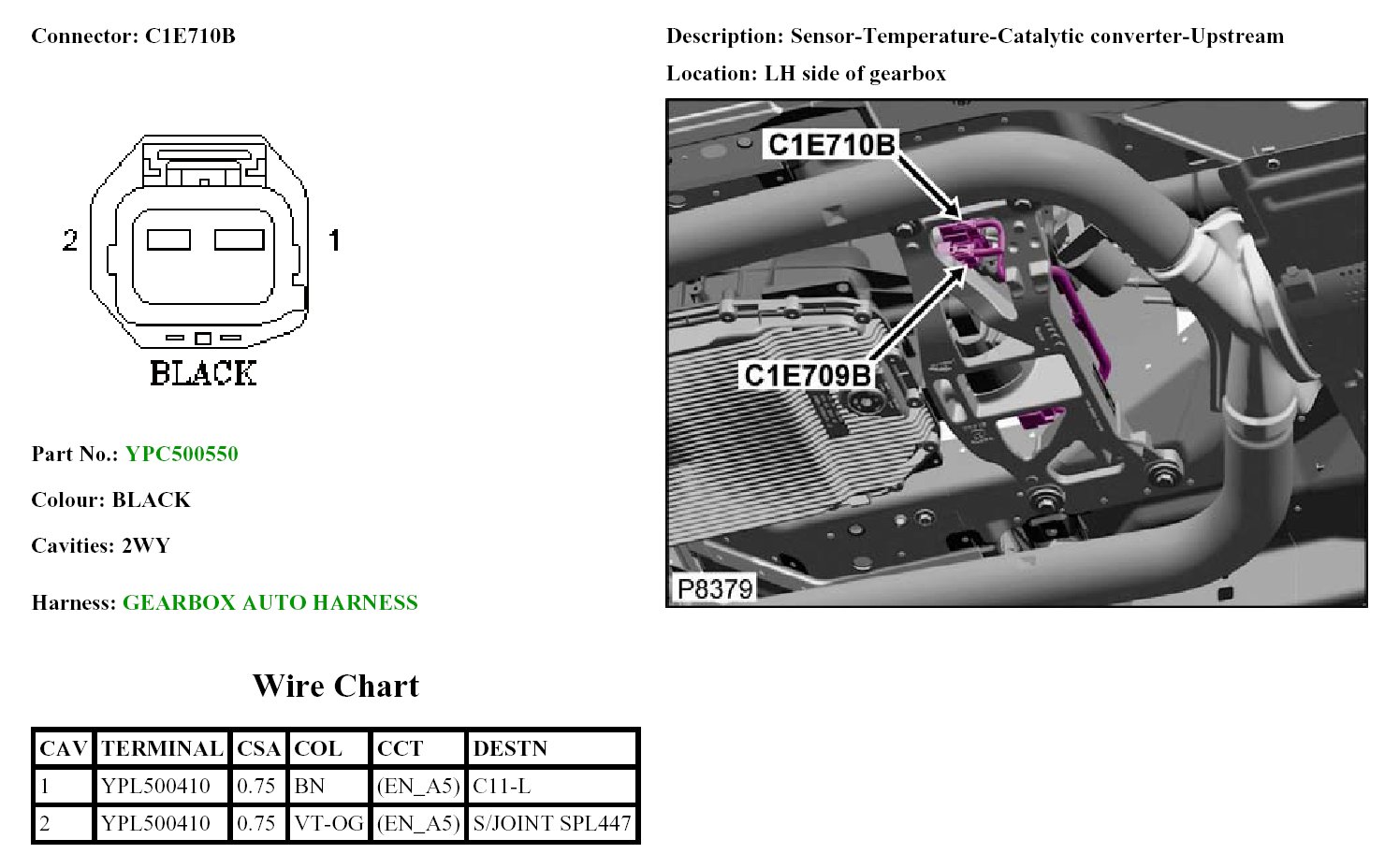

C1E710B:

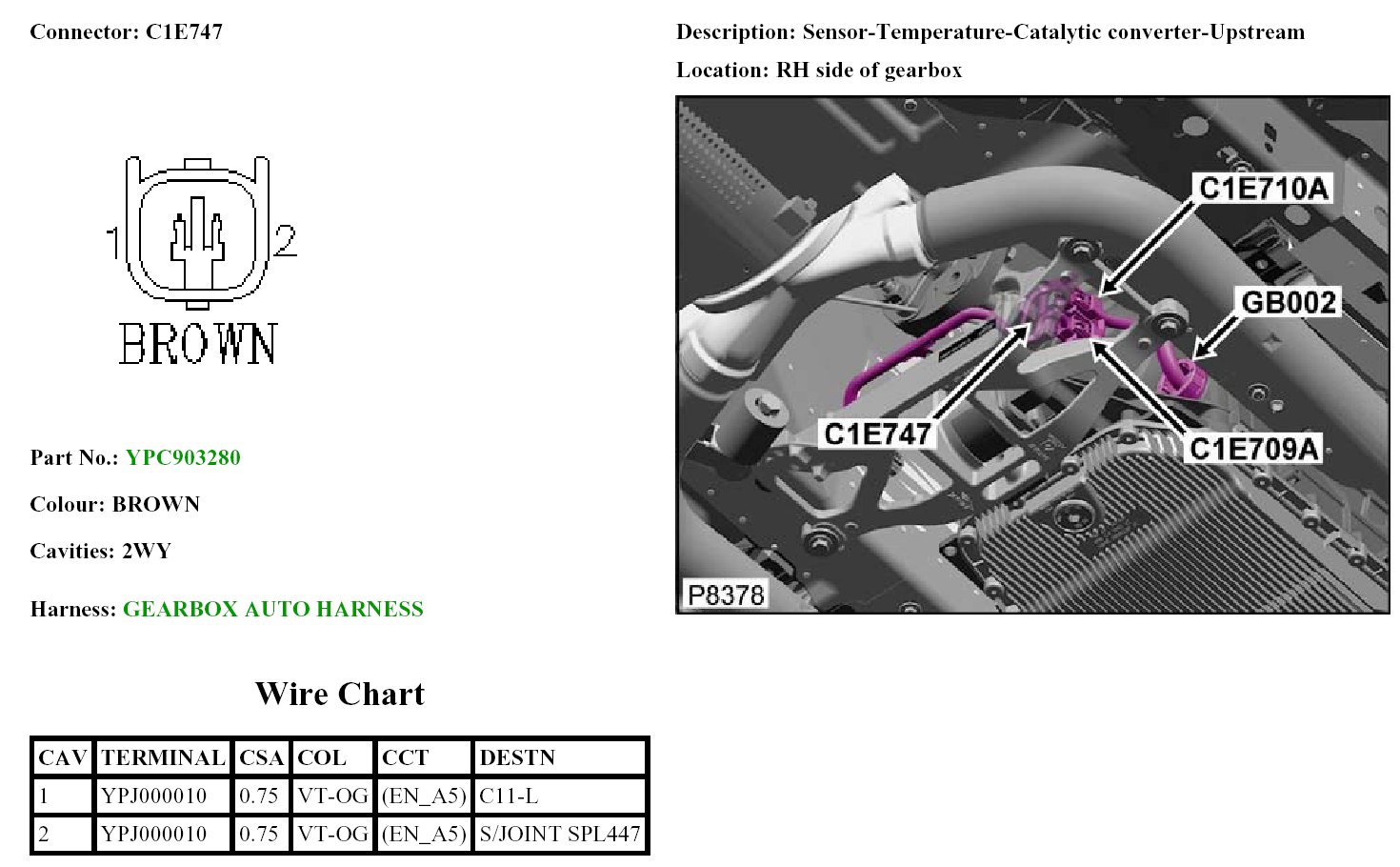

C1E747:
