Connector Locations

Harness In-Line Connectors

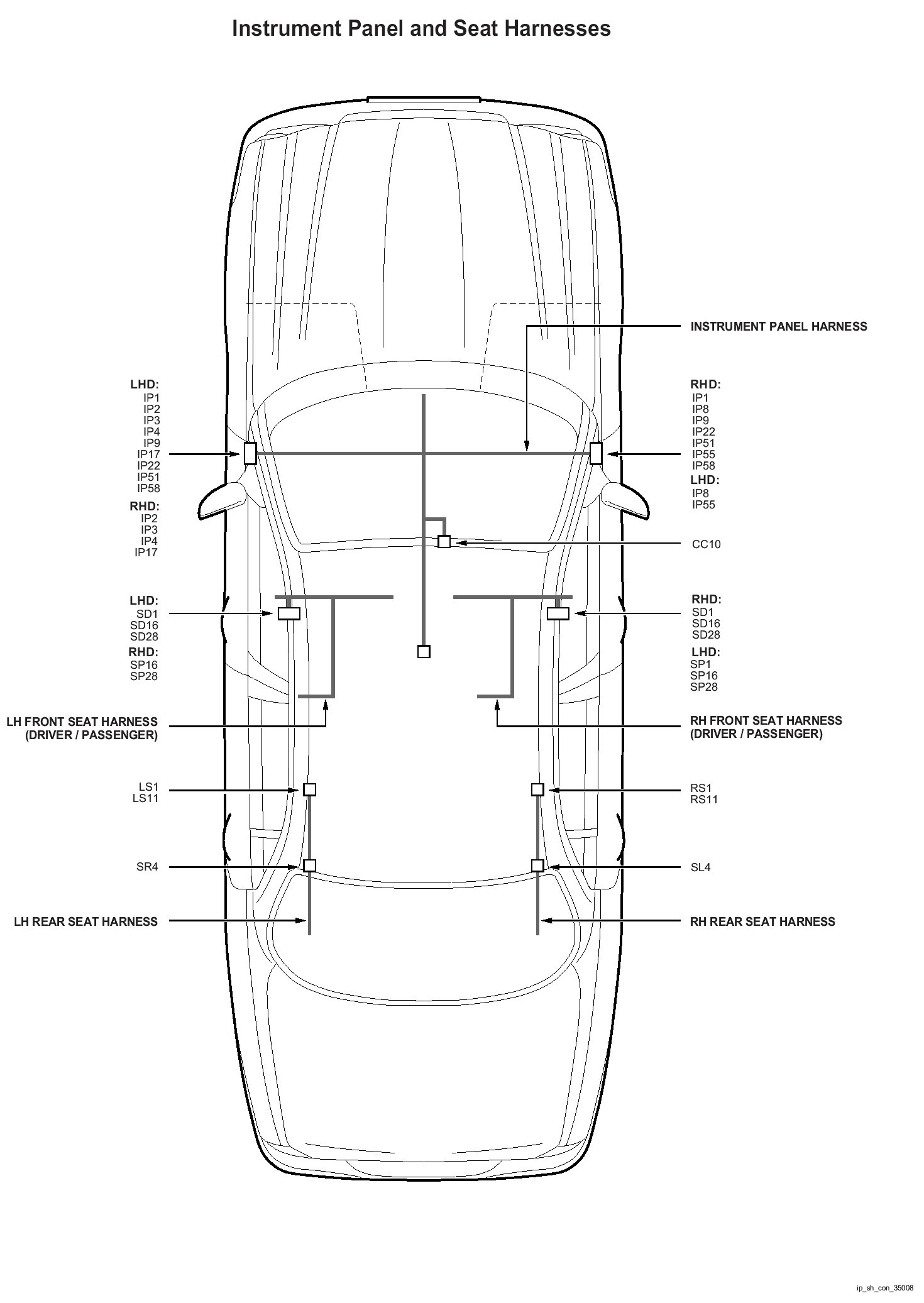

Harness In-Line Connectors:

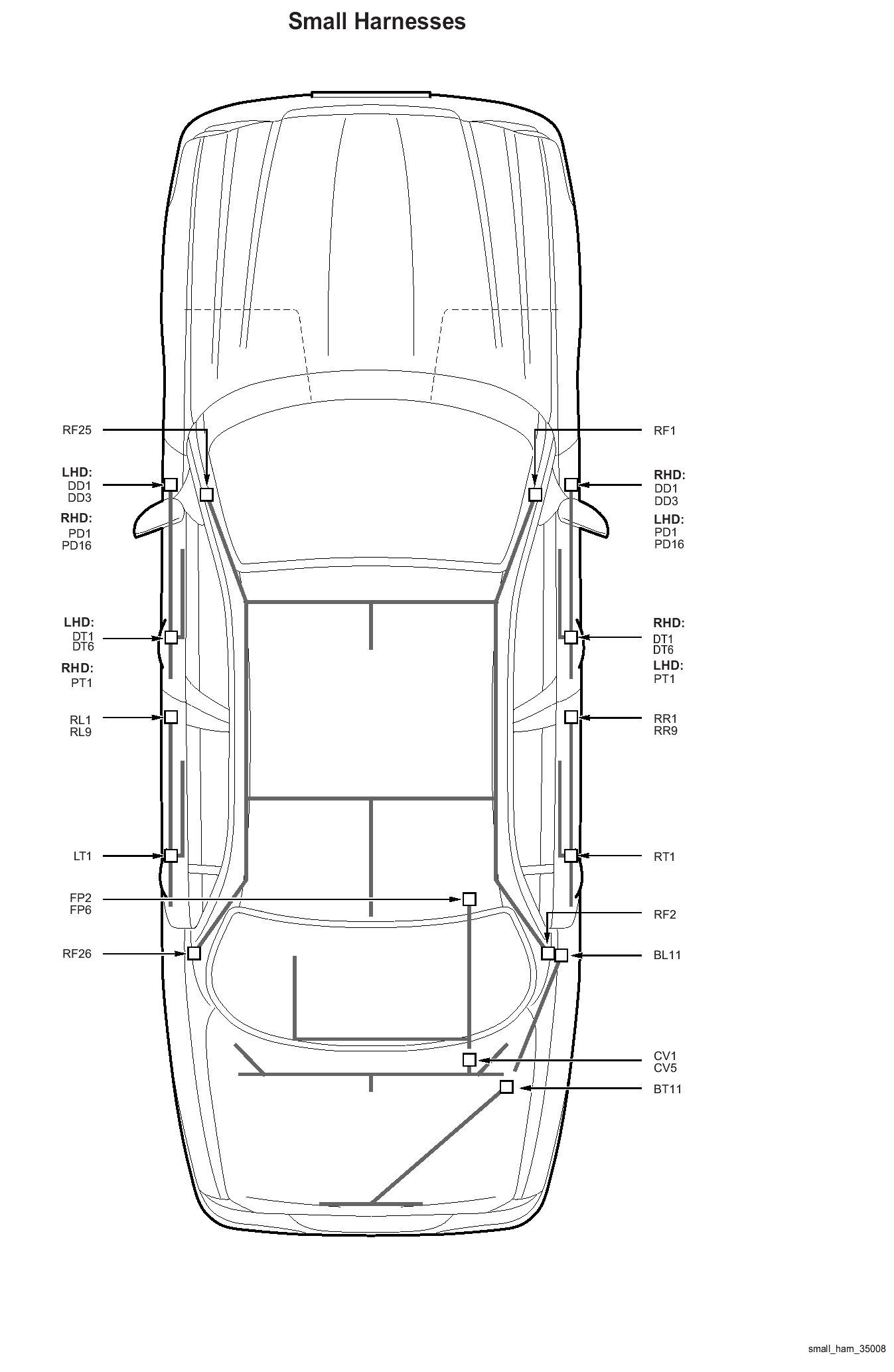

Harness In-Line Connectors:

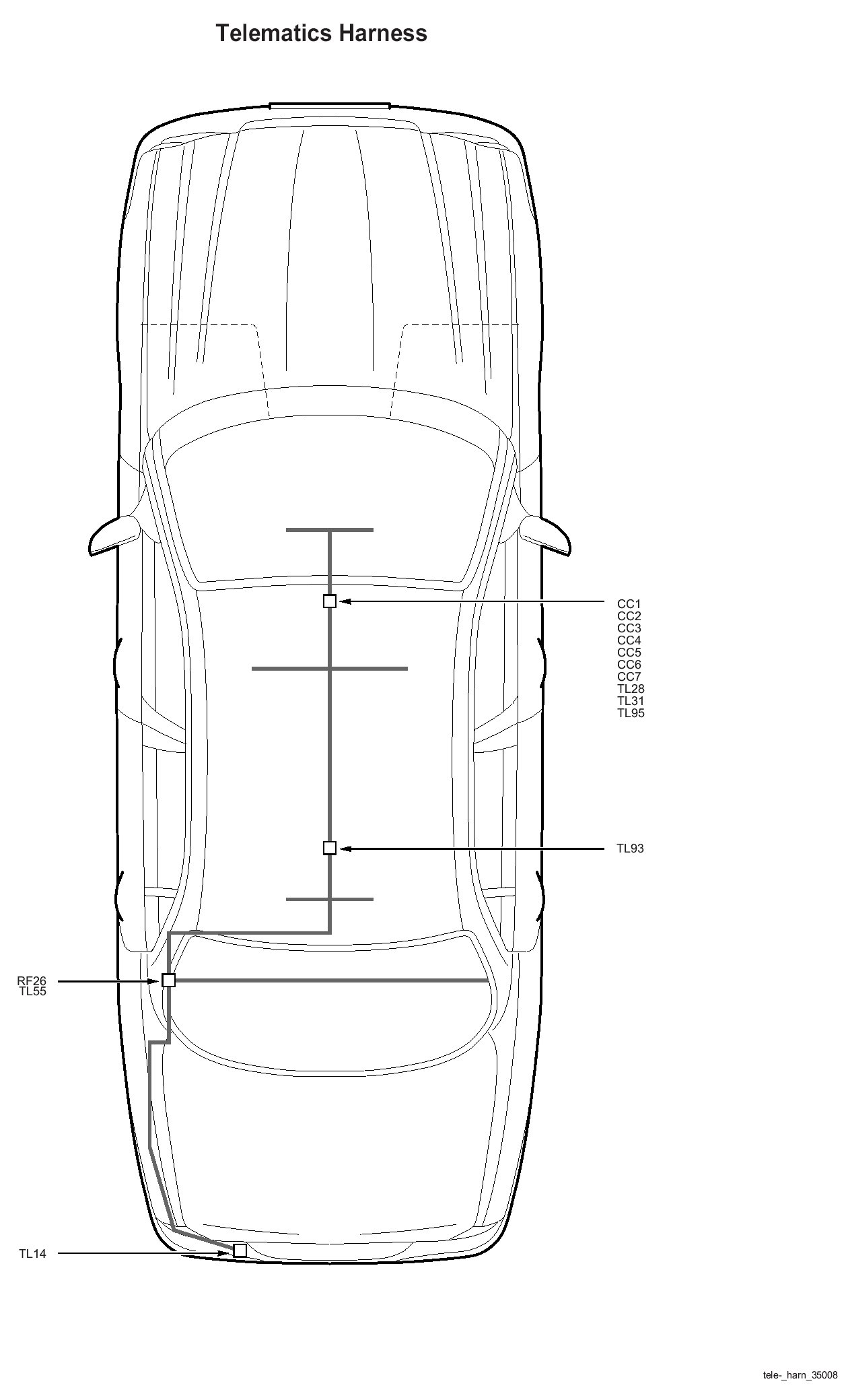

Harness In-Line Connectors:
