LEMON Manuals
: Even more car manuals for everyone
Home
>>
Jaguar
>>
2011
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
C3A-A - C3HS01A
>>

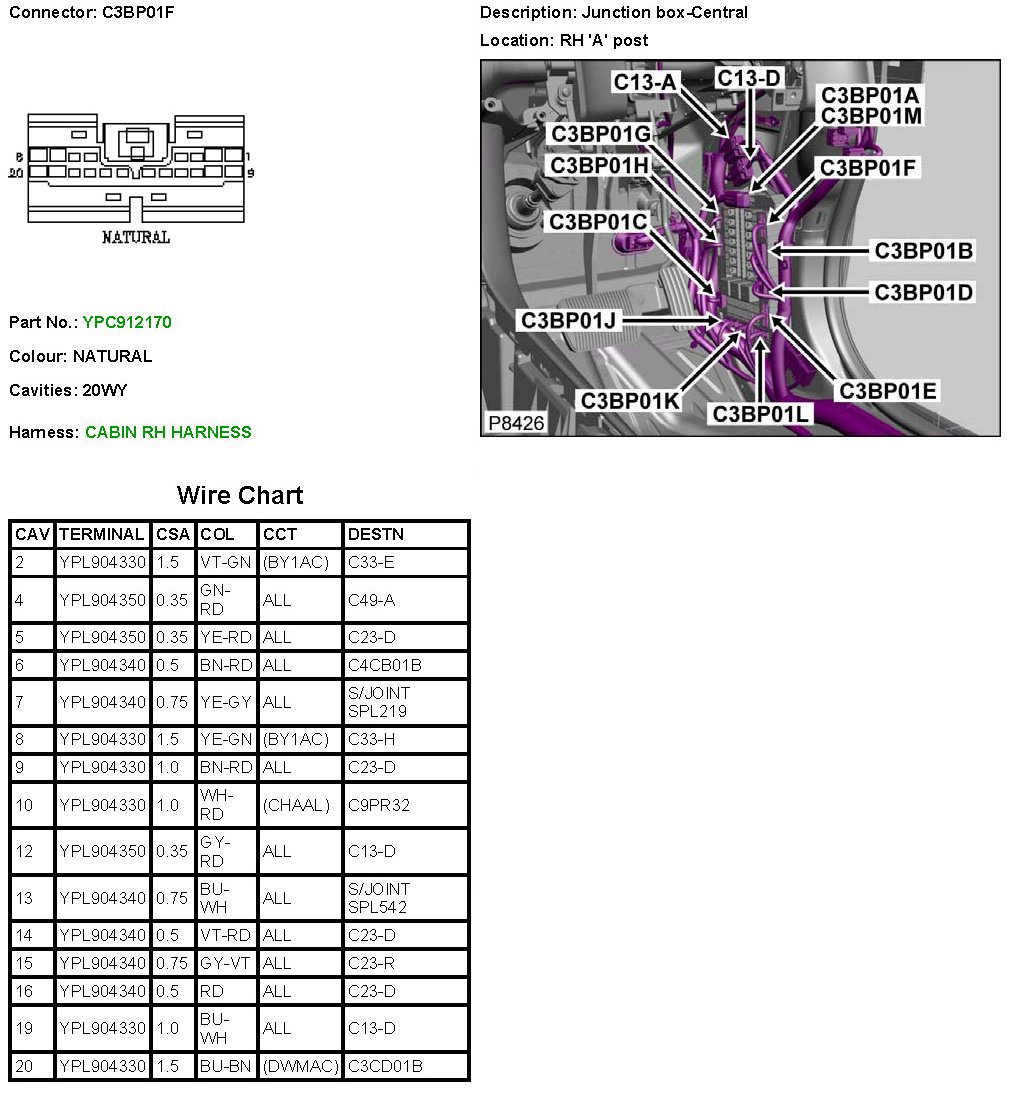

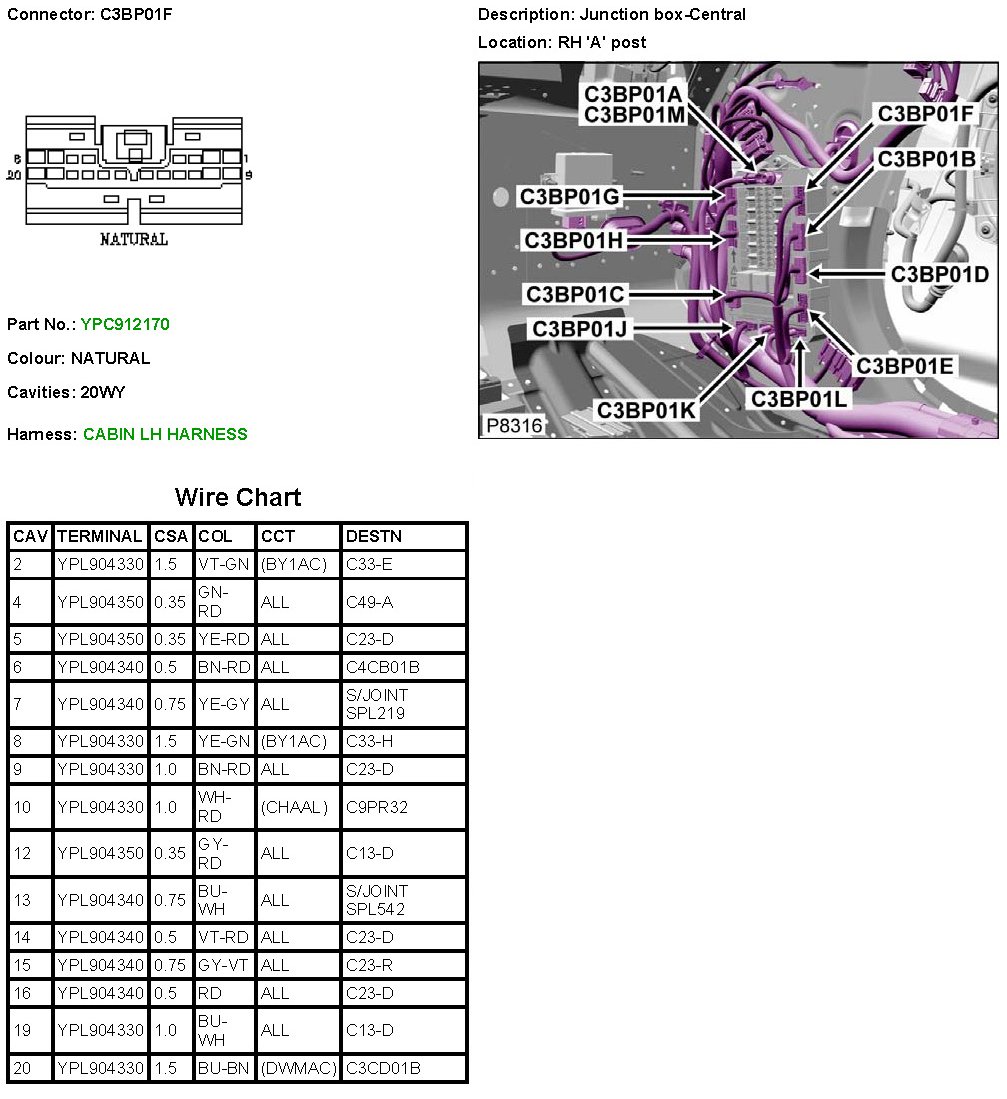

C3BP01F
C3BP01F
C3BP01F
C3BP01F:
C3BP01F:
