Home
>>
Jaguar
>>
2012
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>

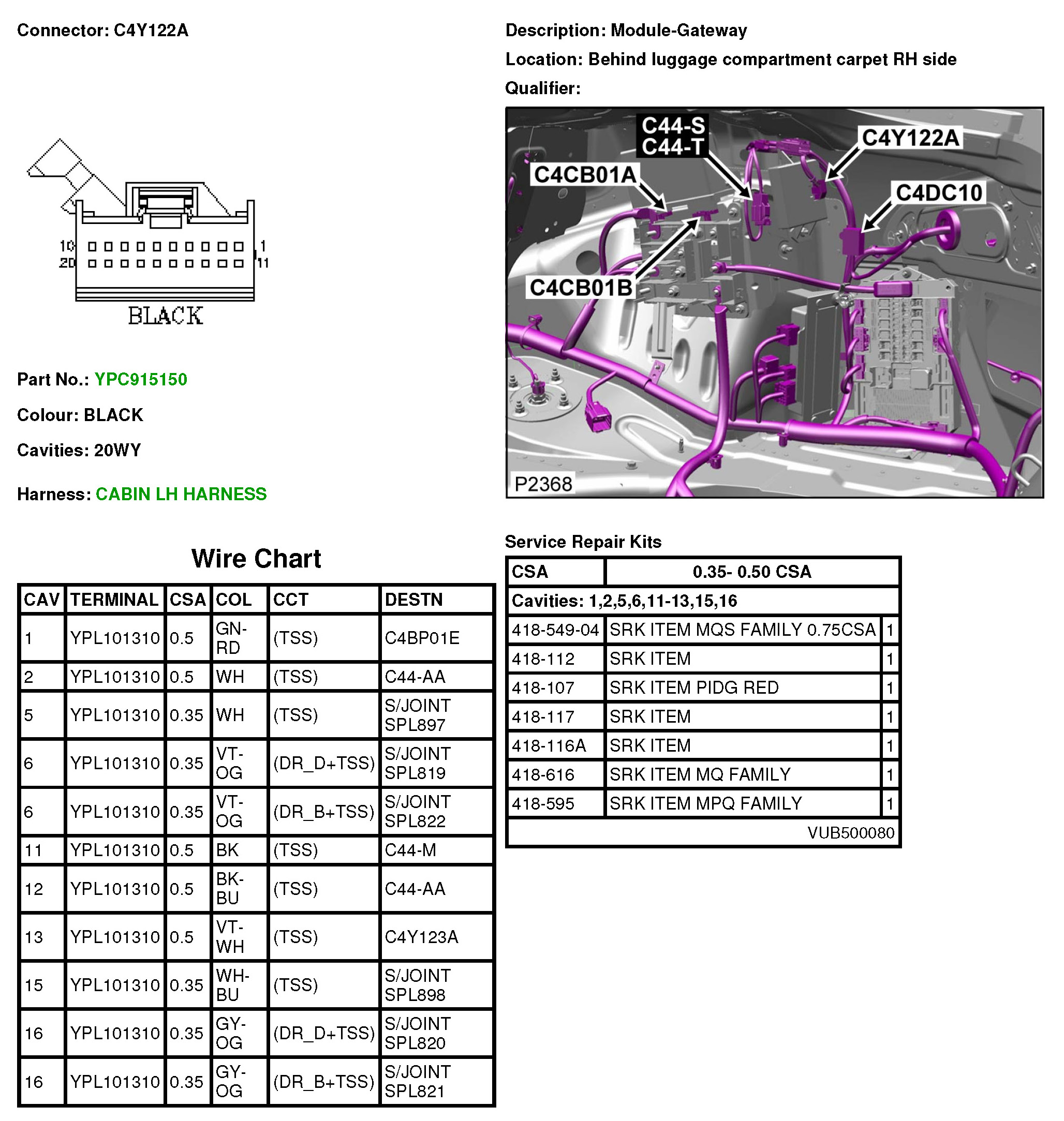

Connector Views
>>
Central Control Module
Central Control Module
C4Y122A
