XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Coolant Level Sensor
>>

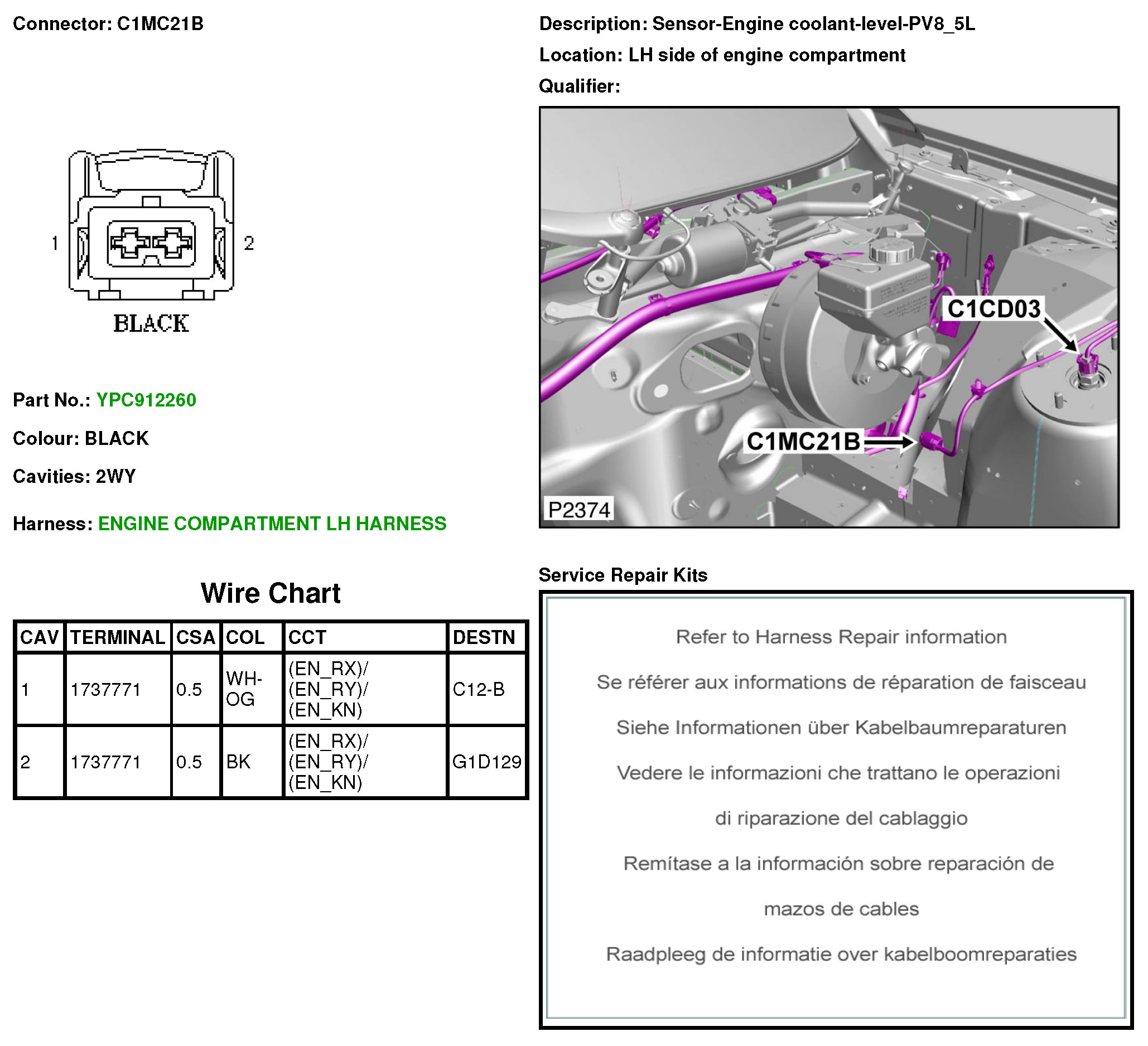

C1MC21B Sensor-Engine Coolant-Level
C1MC21B Sensor-Engine Coolant-Level
C1MC21B
