Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2012
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Steering Relay
>>

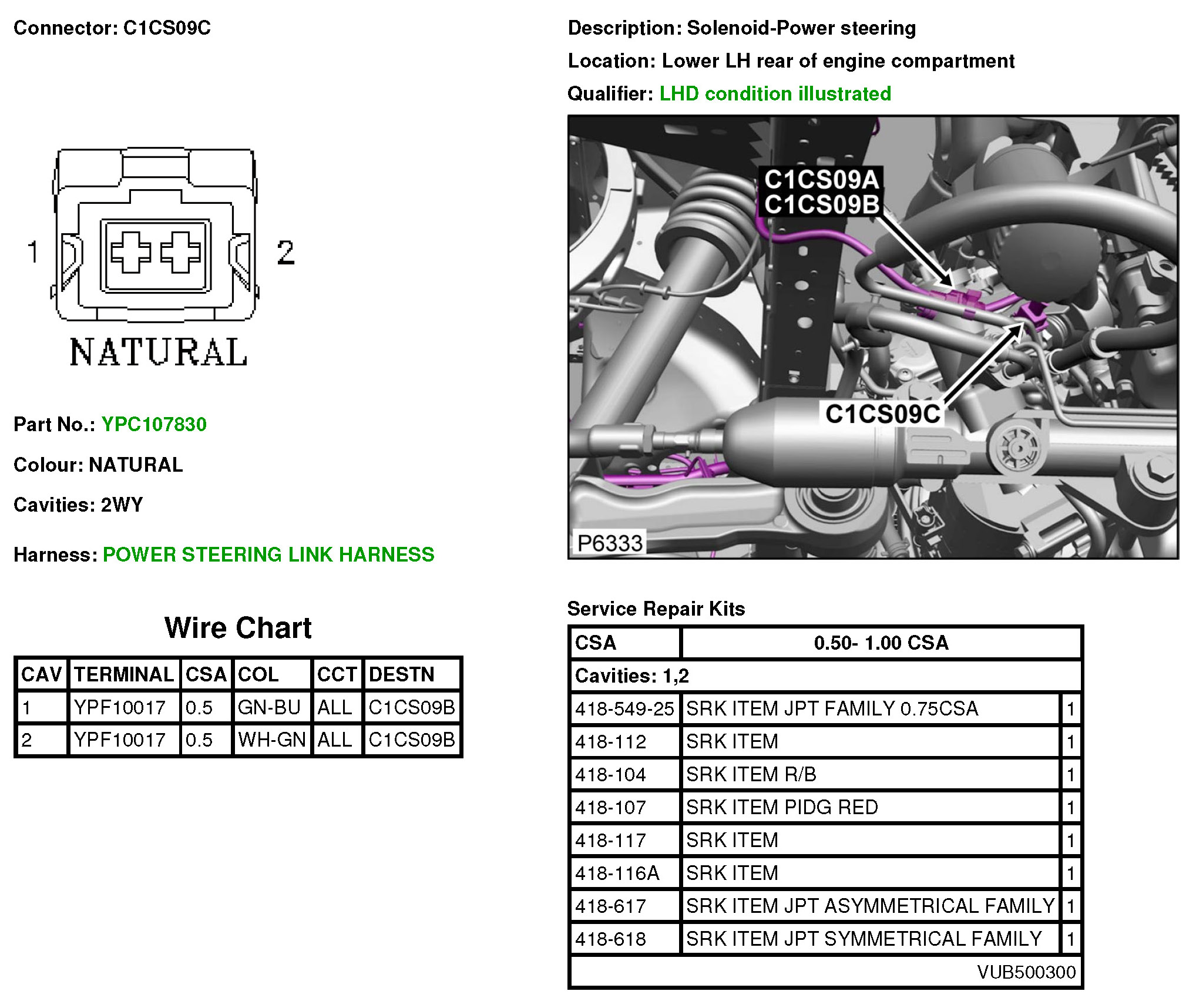

C1CS09CSolenoid-Power Steering
C1CS09CSolenoid-Power Steering
C1CS09C
