Jaguar
>>
2012
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio Tuner
>>

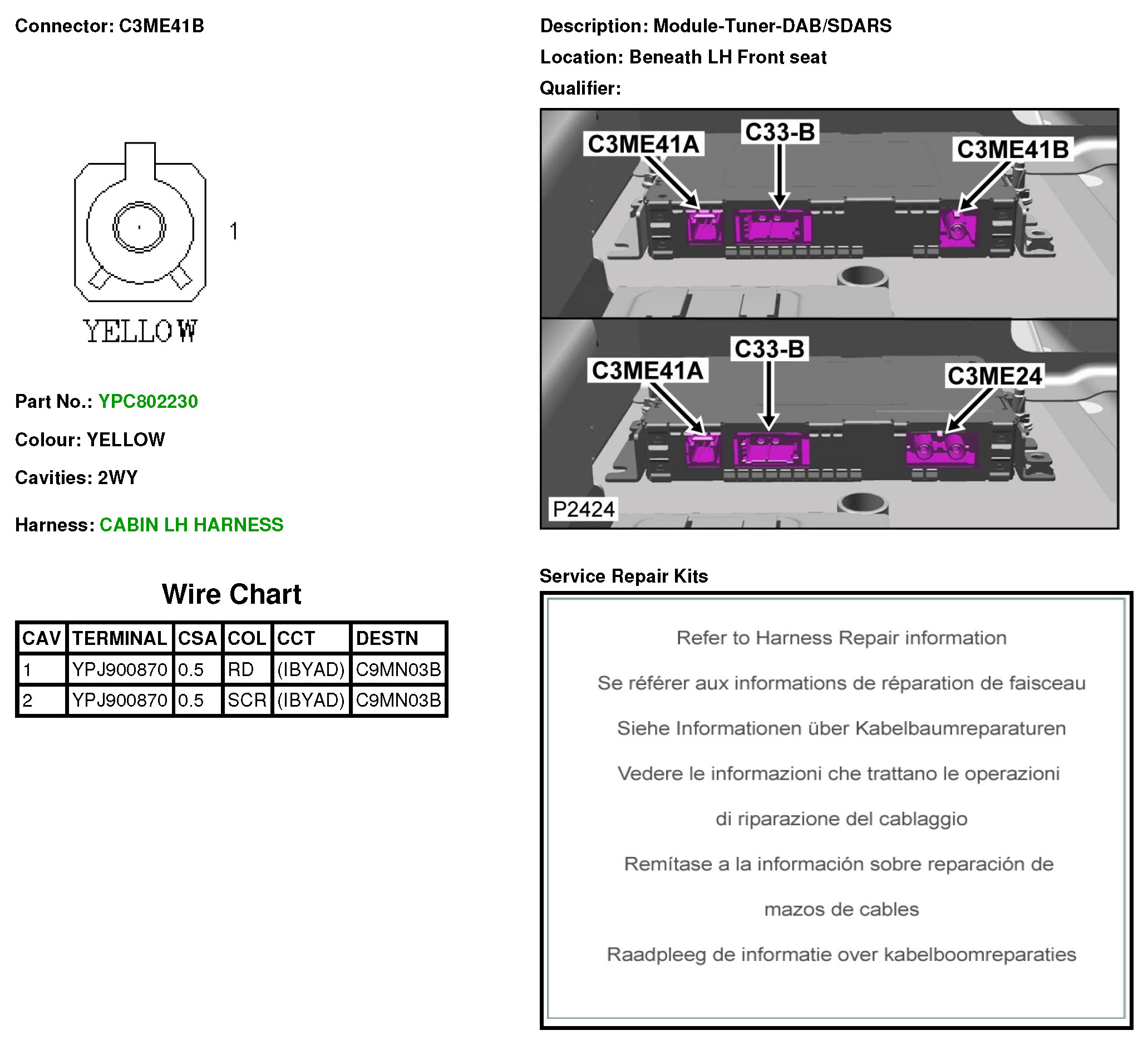

C3ME41B Module-Tuner-DAB/SDARS
C3ME41B Module-Tuner-DAB/SDARS
C3ME41B
