Tire Pressure Module
>>

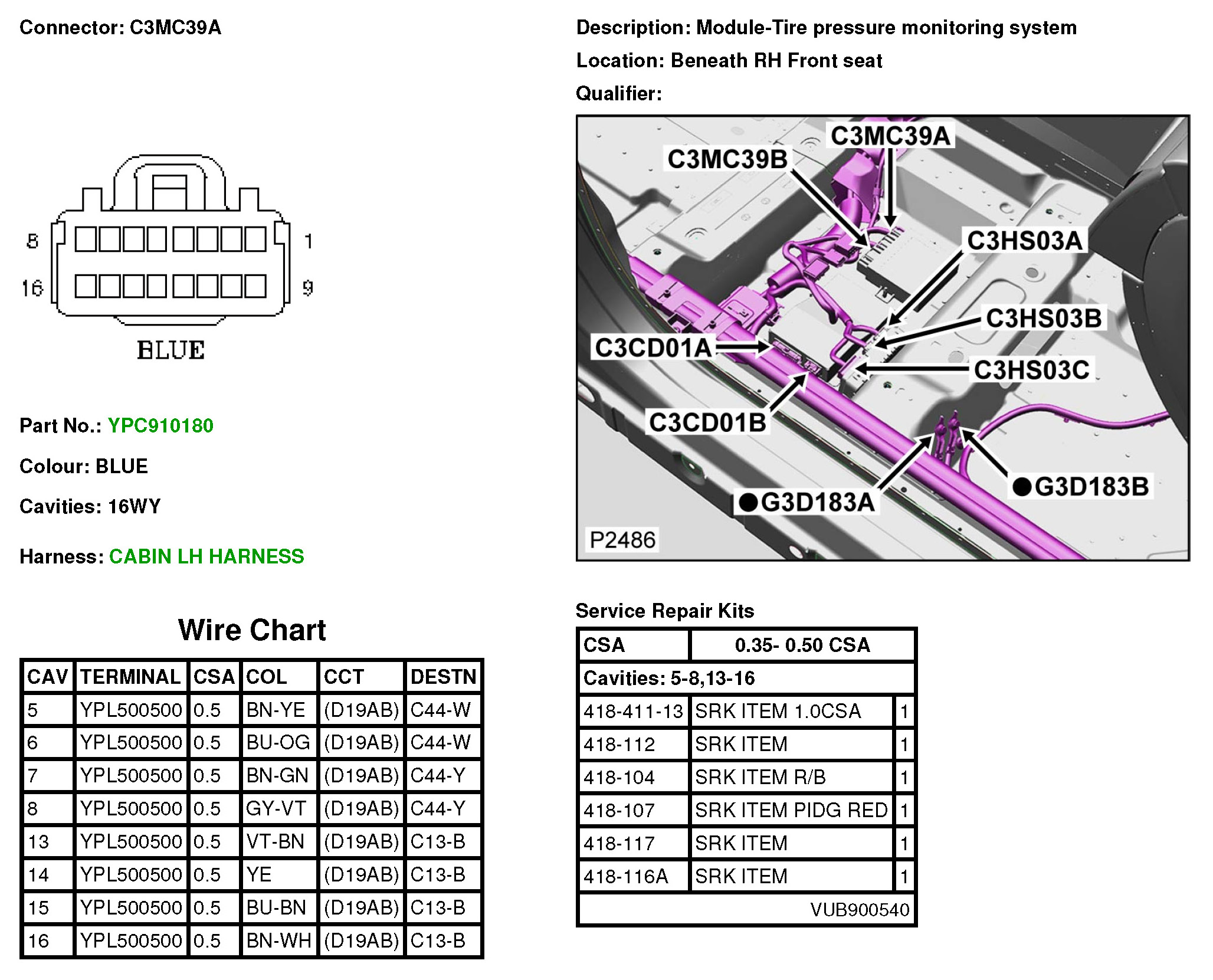

C3MC39A Module-Tire Pressure Monitoring System
C3MC39A Module-Tire Pressure Monitoring System
C3MC39A
