Home
>>
Jaguar
>>
2012
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Pedestrian Protection System
Pedestrian Protection System

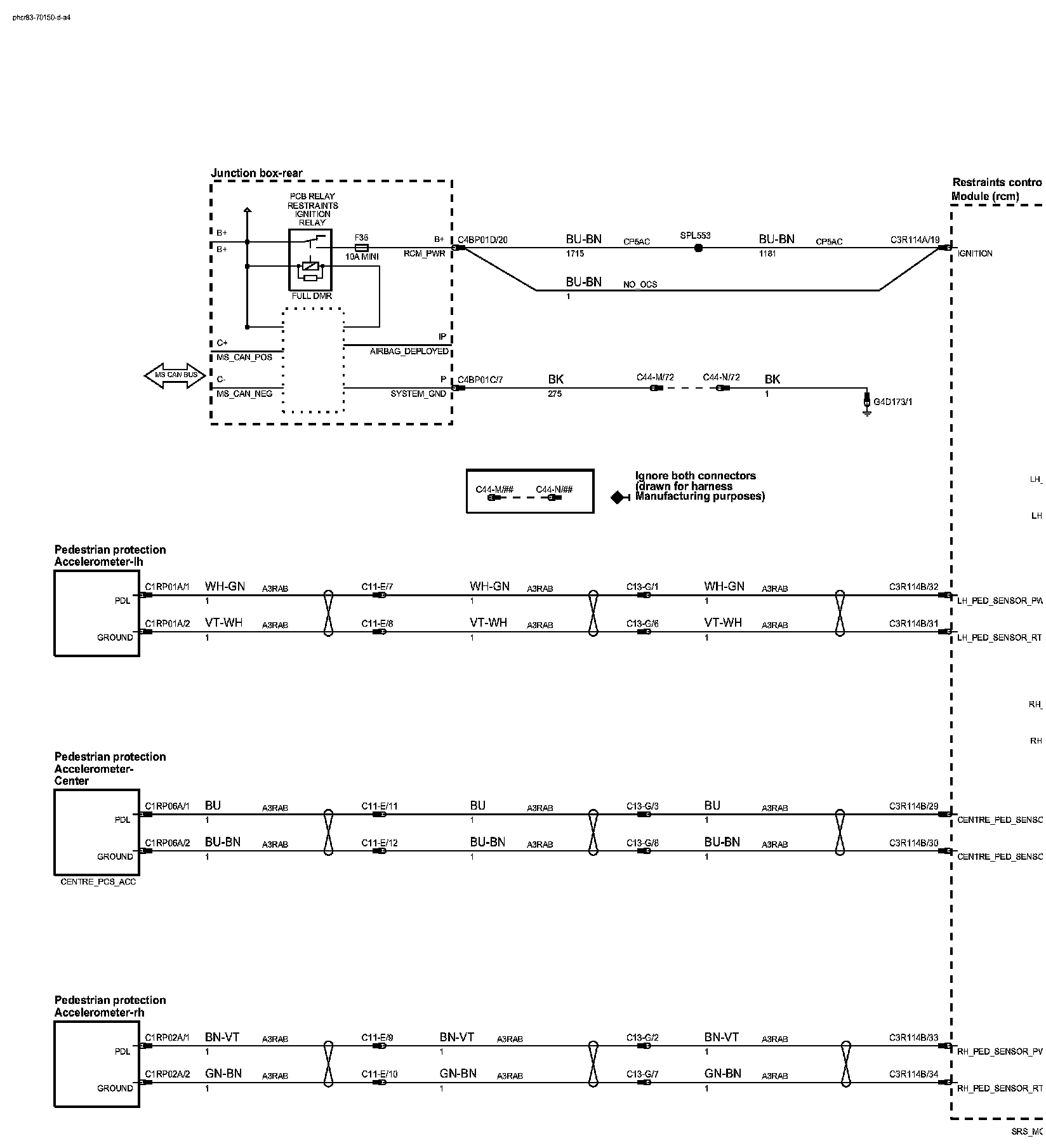

PEDESTRIAN PROTECTION SYSTEM
���2:
