Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2012
>>
XF (X250) V8-5.0L SC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Diagrams
>>

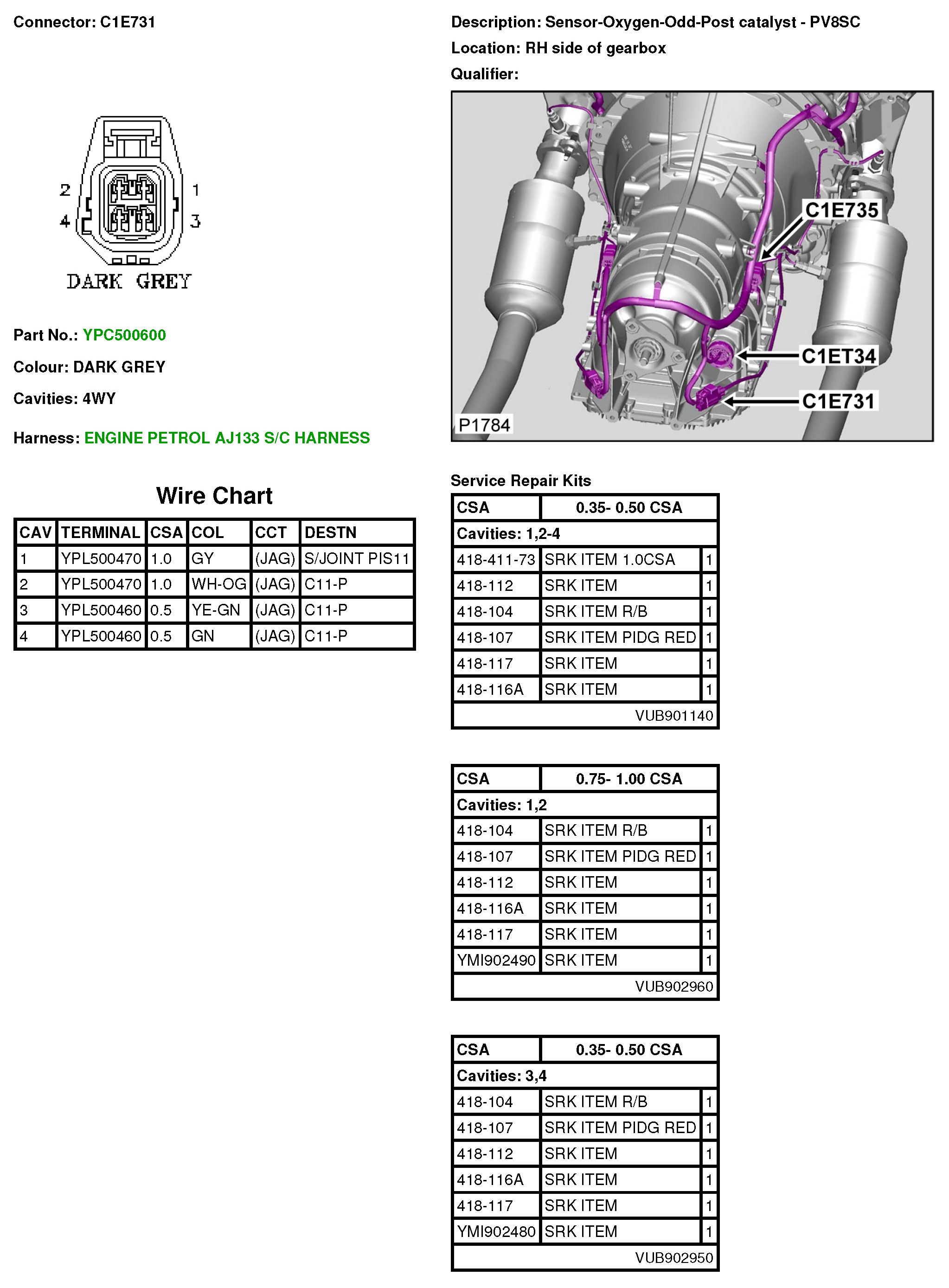

C1E731 Sensor-Oxygen-Odd-Post Catalyst
C1E731 Sensor-Oxygen-Odd-Post Catalyst
C1E731
