Home
>>
Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Combination Switch
>>

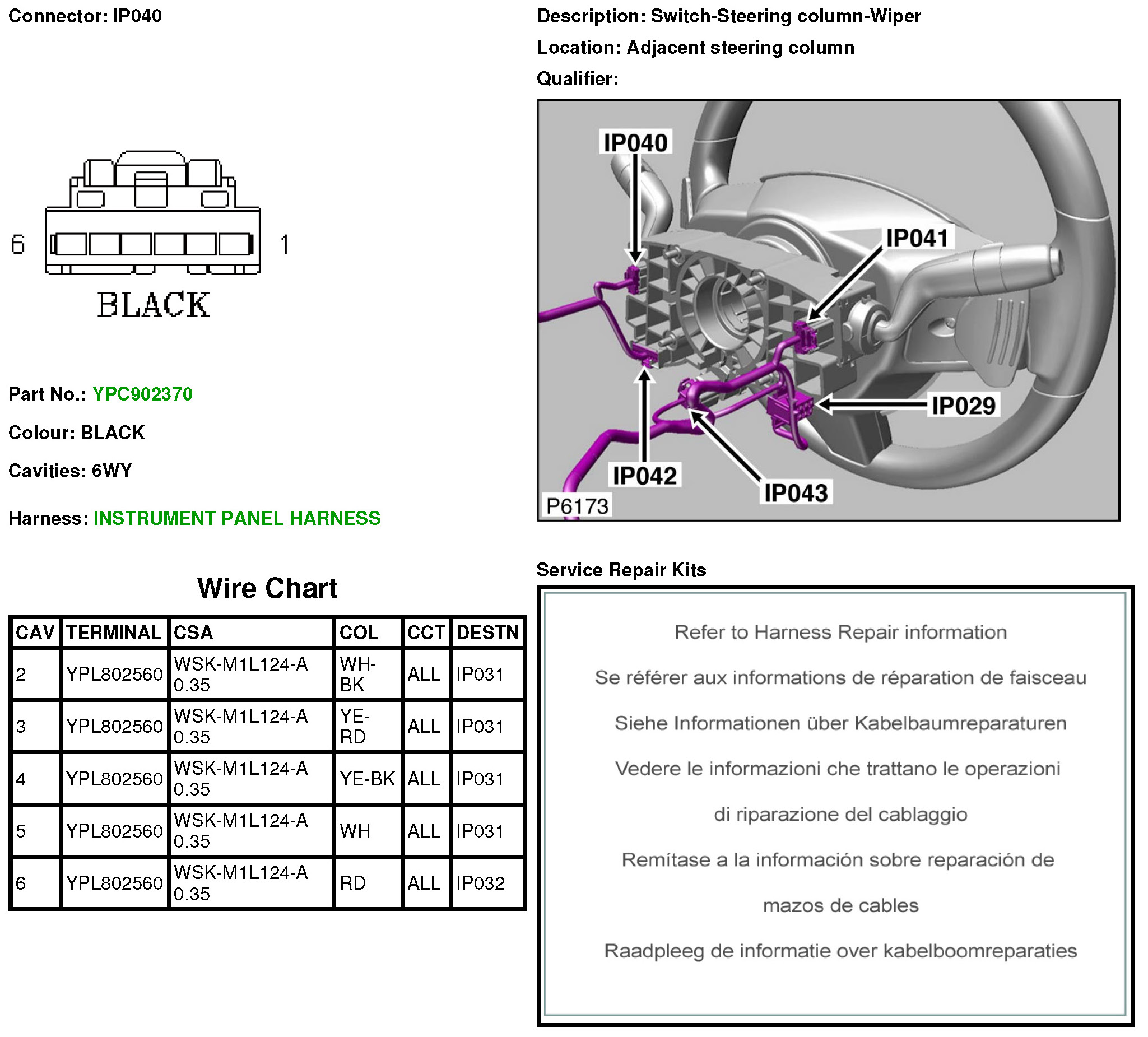

IP040 Switch-Steering Column-Wiper
IP040 Switch-Steering Column-Wiper
IP040
