Parking Assist Distance Sensor
>>

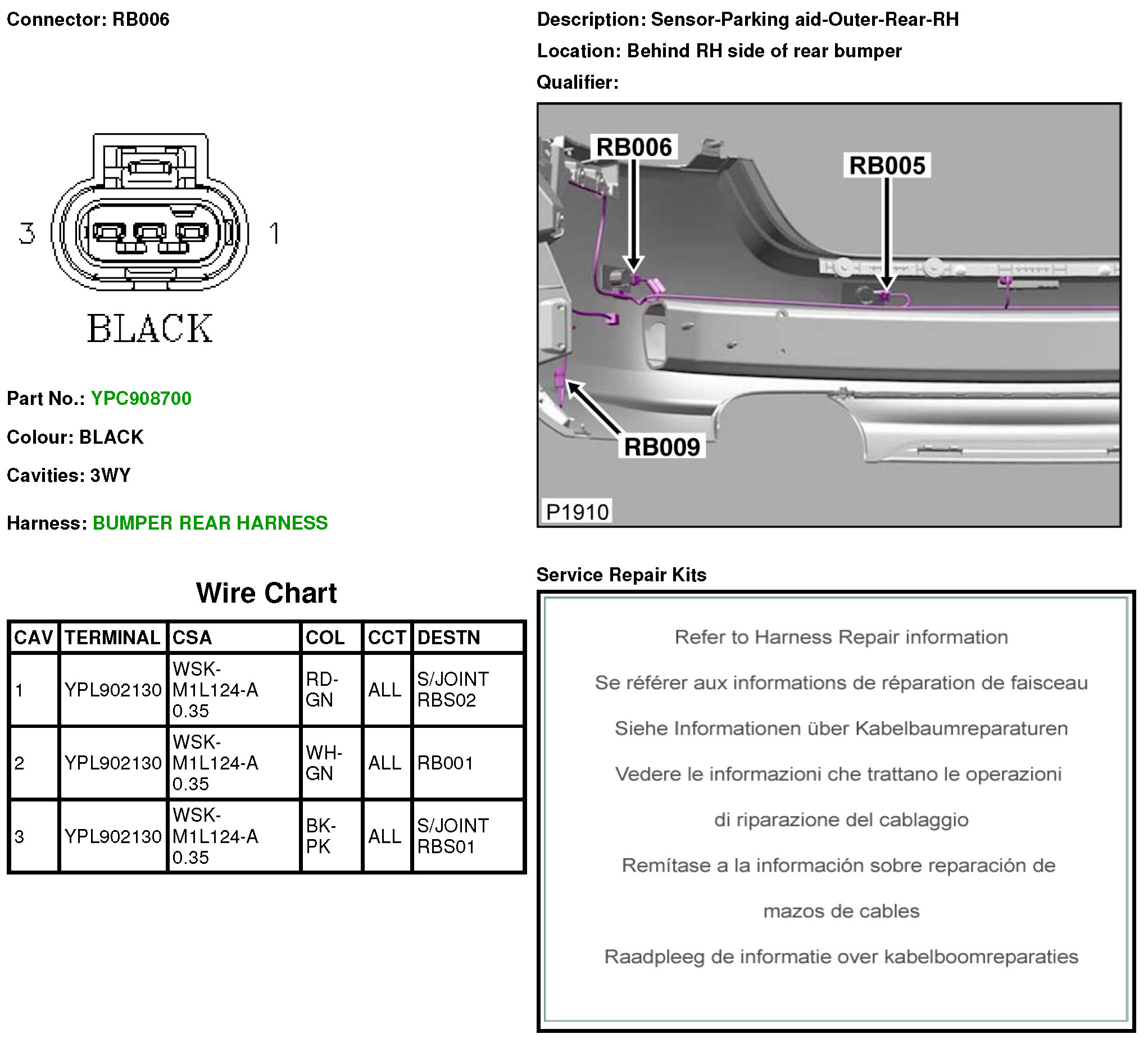

RB006 Sensor-Parking aid-Outer-Rear-RH
RB006 Sensor-Parking aid-Outer-Rear-RH
RB006
