Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Interrupt Connector/Switch
>>

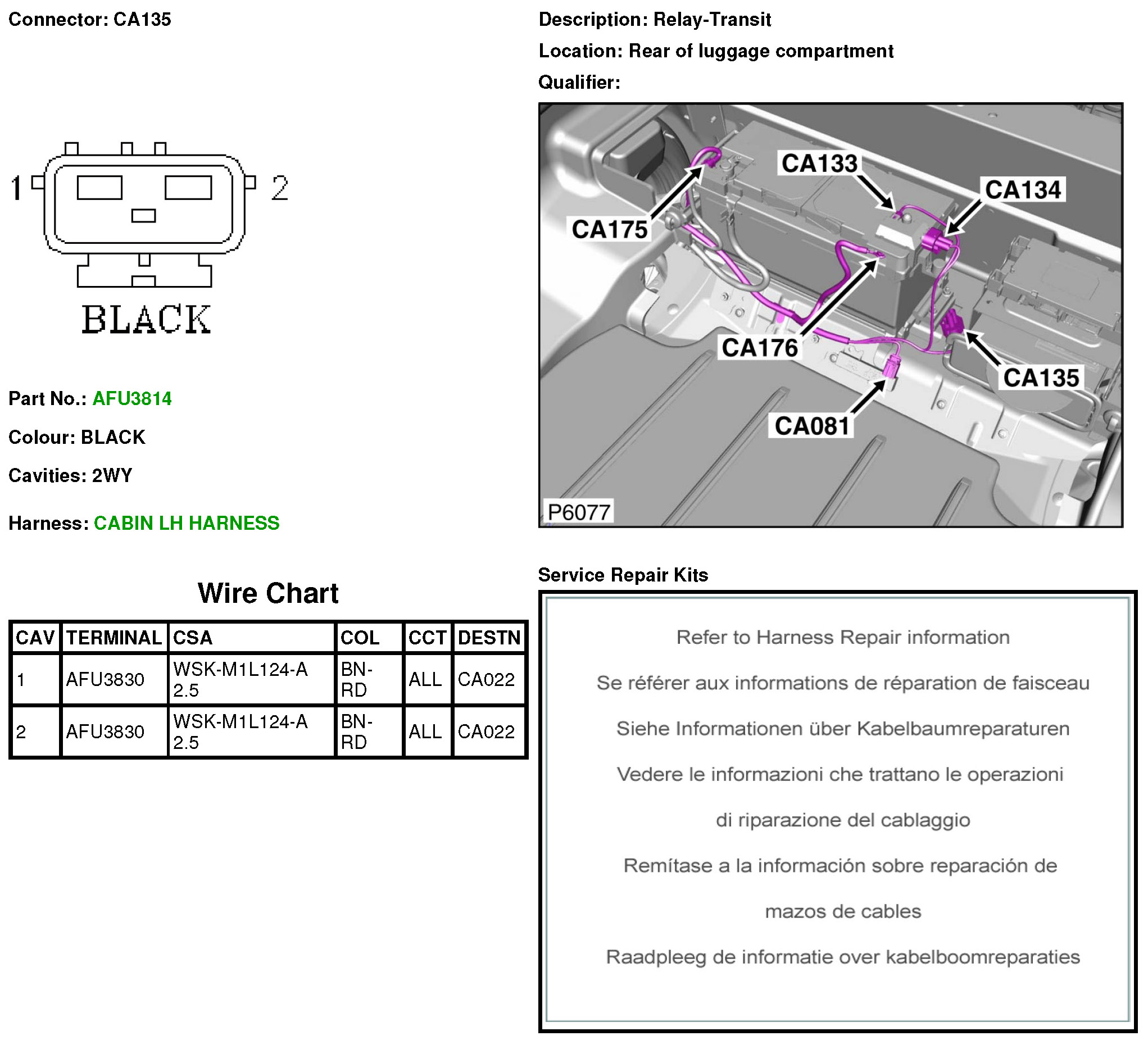

CA135 Relay-Transit
CA135 Relay-Transit
CA135
