Home
>>
Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tire Pressure Module
>>

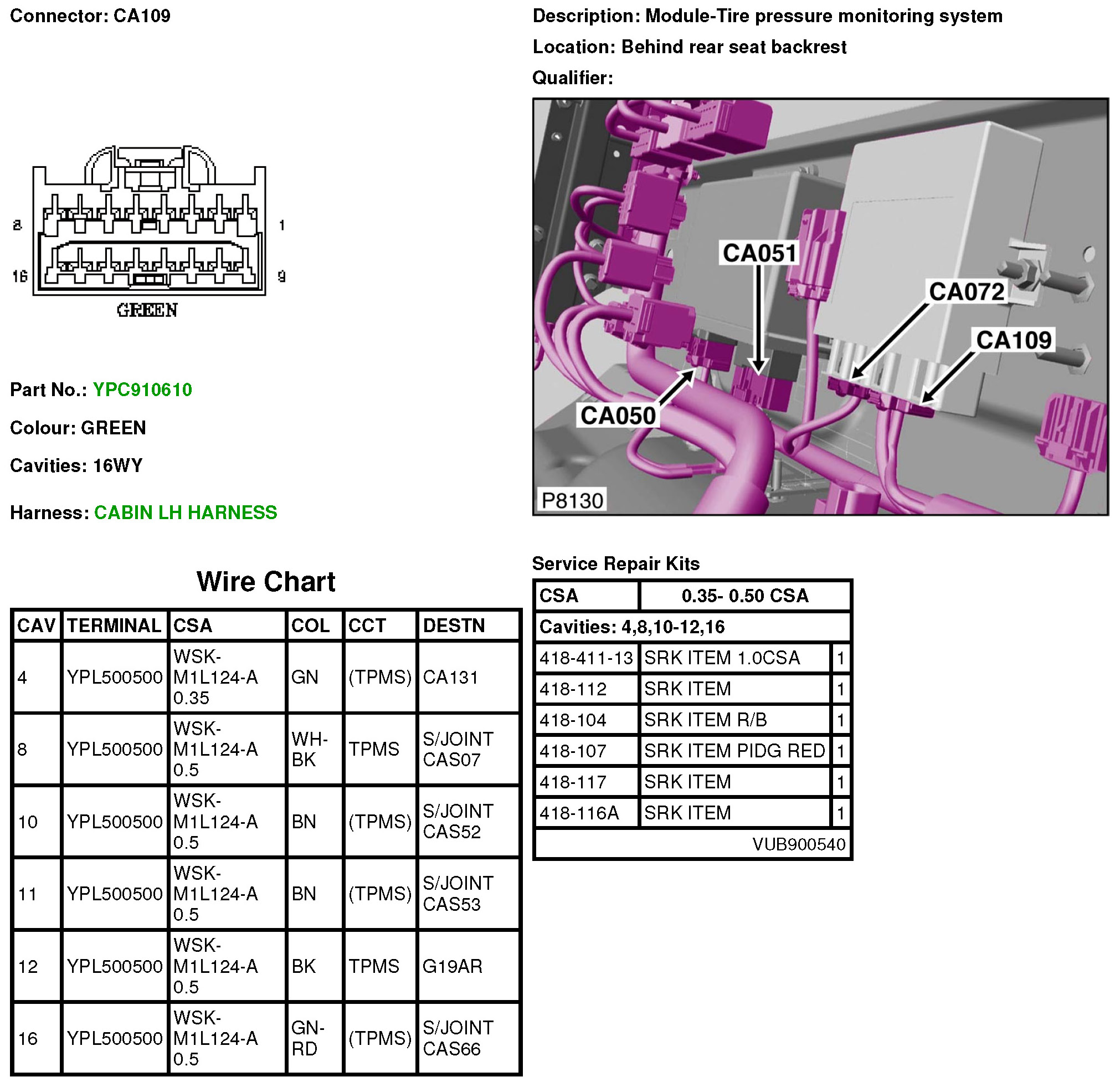

CA109 Module-Tire Pressure Monitoring System
CA109 Module-Tire Pressure Monitoring System
CA109
