Home
>>
Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wheel Speed Sensor
>>

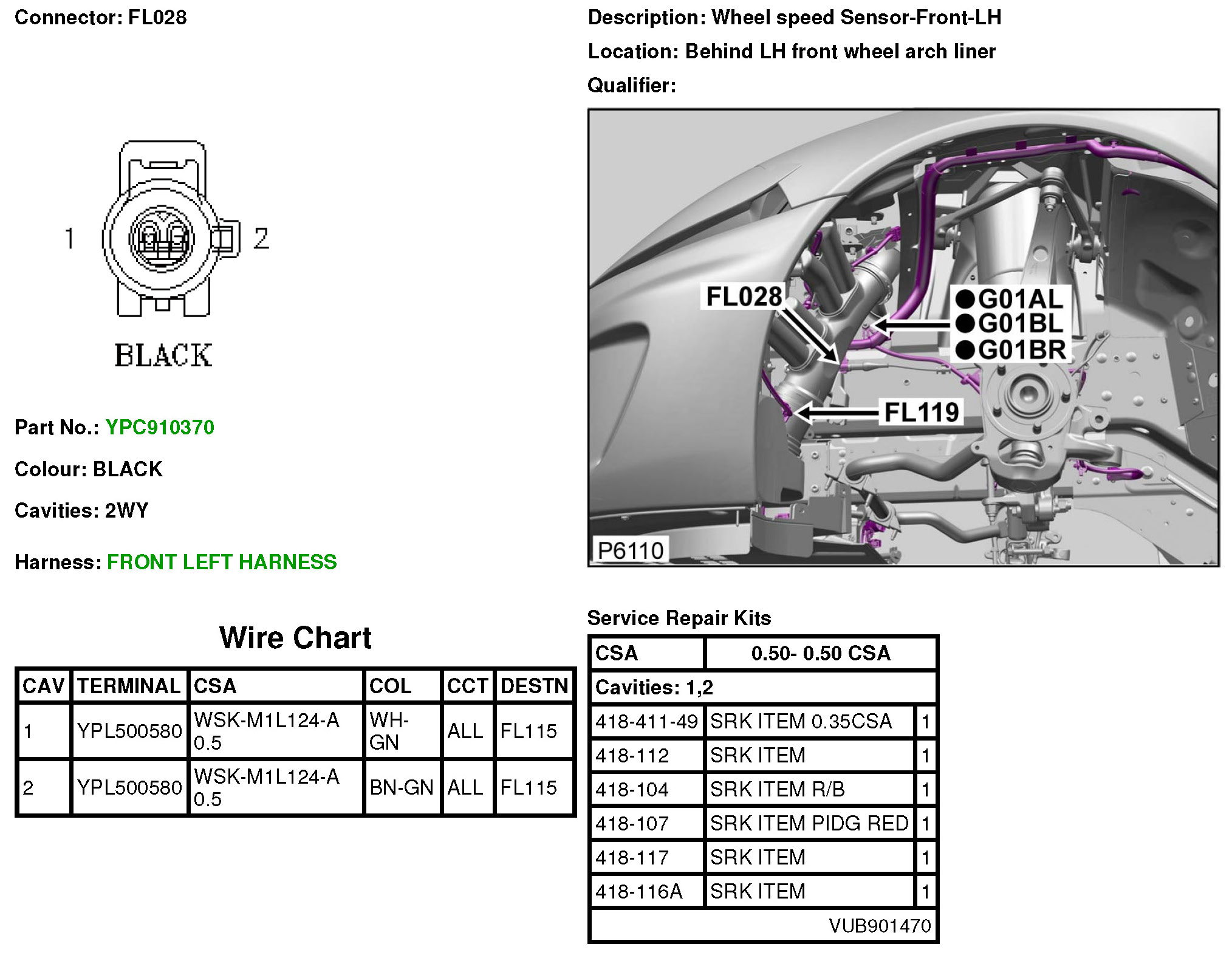

FL028 Wheel Speed Sensor-Front-LH
FL028 Wheel Speed Sensor-Front-LH
FL028
