Operation CHARM
: Car repair manuals for everyone.
Home
>>
Jaguar
>>
2012
>>
XK (X150) V8-5.0L SC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
PH012-PS047
>>

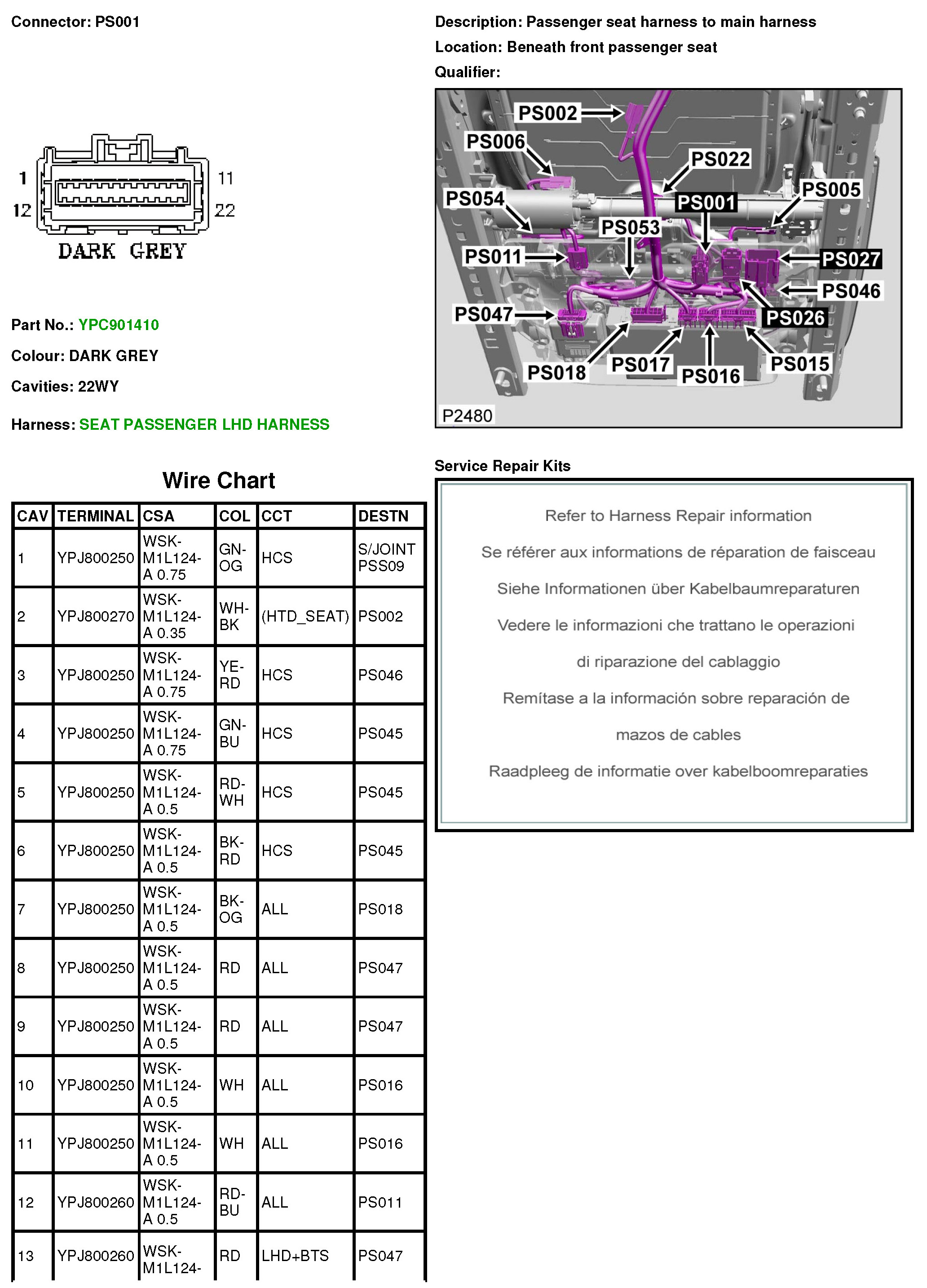

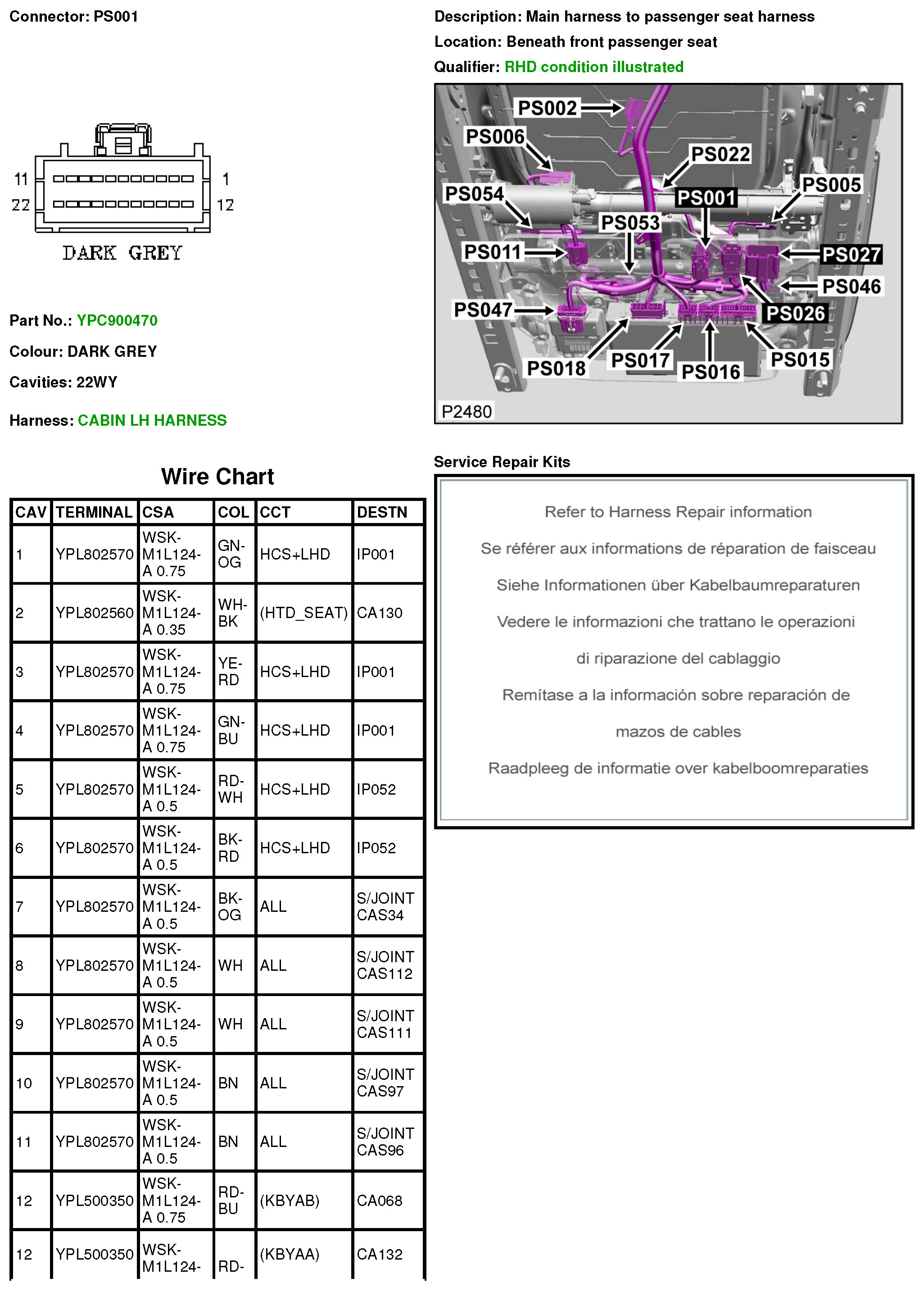

PS001
PS001
PS001
PS001
