Front End Sheet Metal Repairs - Front Fender

Removal and Installation

Removal

1. NOTE: The front fender is manufactured from mild steel.







The front fender is serviced as a separate bolt-on panel.

2. The front fender is replaced in conjunction with:
1. Front bumper cover

3. For additional information relating to this repair procedure please see the following:
For additional information, refer to: Health and Safety Precautions / Body Repairs / Corrosion Protection / Body and Frame.

4. Disconnect the battery ground cable.
For additional information, refer to: Battery Disconnect and Connect.

5. Remove the front bumper cover.
For additional information, refer to: Front Bumper Cover.

6. Remove the fender splash shield.
For additional information, refer to: Fender Splash Shield.

7. If the right-hand front fender is to be repaired, remove the windshield washer reservoir.
For additional information, refer to: Windshield Washer Reservoir.

8. Remove the headlamp assembly.
For additional information, refer to: Headlamp Assembly.

9. Remove the rocker panel outer moulding.

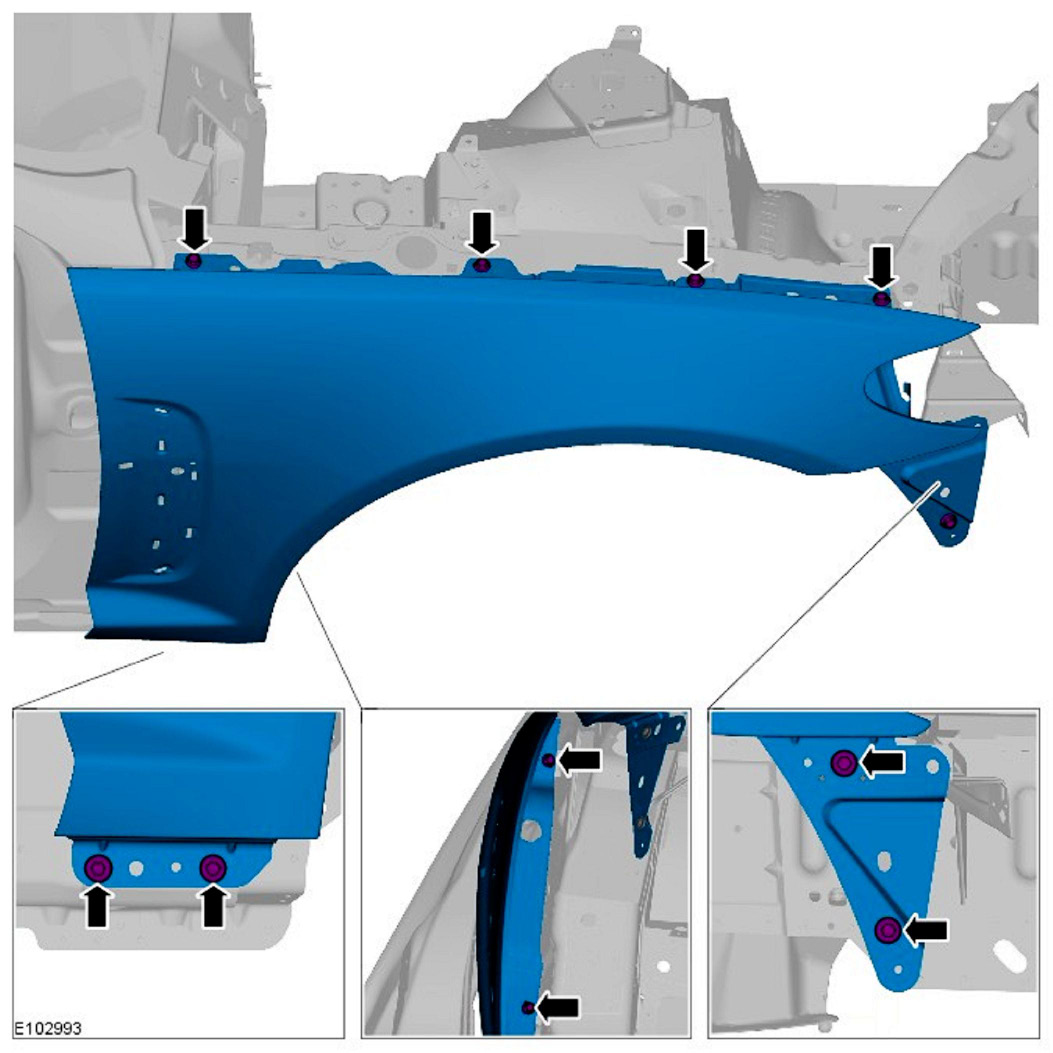

10. Remove the front fender.







11. NOTE: Do not disassemble further if the component is removed for access only.

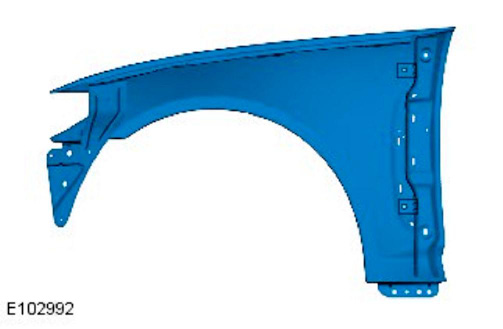

Remove the front fender moulding.

Installation

1. Offer up the new panel. Check alignment, if correct, proceed to next step, if not rectify and recheck before proceeding.
2. Install the front fender.
- Tighten to 10 Nm.







3. The installation of associated panels and components is the reversal of removal procedure.
