Air Bag Control Module: Service and Repair

Trustmark Authoring Standards (TAS) Repair Procedures

NOTE: TAS style procedures can be identified by steps that have no accompanying step text and the magenta color of the electrical connectors and fasteners such as nuts, bolts, clamps or clips.

A TAS removal and installation procedure uses a sequence of color illustrations to indicate the order to be followed when removing/disassembling or installing/assembling a component.

Specification data
Specification procedures will only contain technical data that is not already part of a repair procedure.

Sequence of tasks
If components must be removed or installed in a specific sequence, the sequence will be identified numerically in a graphic and the corresponding text will be numbered accordingly.

Special Tools, Equipment, Materials and Torque Figures

Special tools will be shown with the tool numbers in the illustration. The special tool numbers, general equipment, materials and torque figures used for the procedure step will be shown in the text column.

TAS Graphics
Colors used in the graphic are as follows:
Blue - Component to be removed/installed or disassembled/assembled.
Green and Brown - Additional components that need to be removed/installed or disassembled/assembled prior to the target component.
Yellow - Component that is touched or affected in a way but remains in the vehicle. It may be detached, attached, moved, modified, checked, adjusted etc.
Magenta - Electrical connectors and fasteners such as nuts, bolts, clamps and clips.
Pale Blue - Special tool(s) and general equipment.

One illustration may have multiple steps assigned to it.

Numbered pointers are used to indicate the number of electrical connectors and fasteners such as nuts, bolts, clamps and clips.

Items in the illustration can be transparent or use cutouts to show hidden details.

Supplemental Restraint System - Restraints Control Module (RCM)

Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Make the air bag supplemental restraint system (SRS) safe.
Refer to: Standard Workshop Practices.

2. WARNING: To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before repairing or replacing any air bag supplementary restraints system (SRS) components. To deplete the backup power supply energy, disconnect the battery ground cable and wait for one minute. Failure to follow this instruction may result in personal injury.

Refer to: Battery Disconnect and Connect.

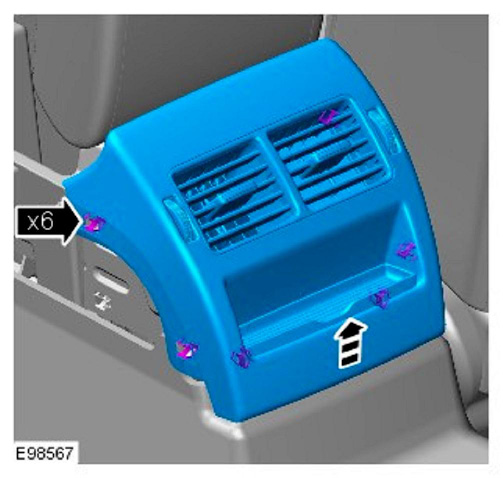

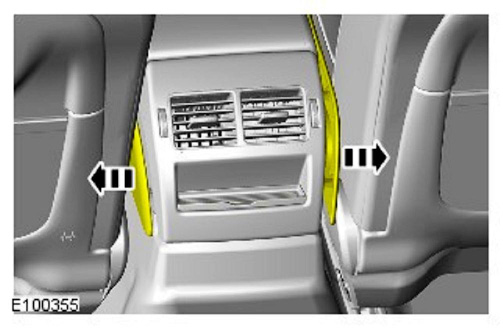

4.

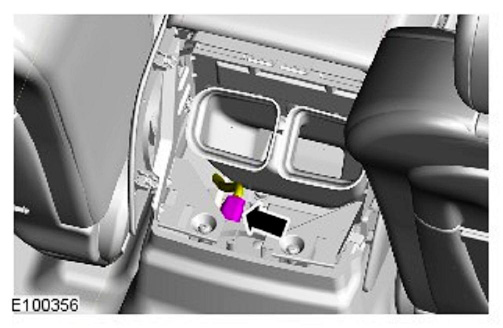

5.

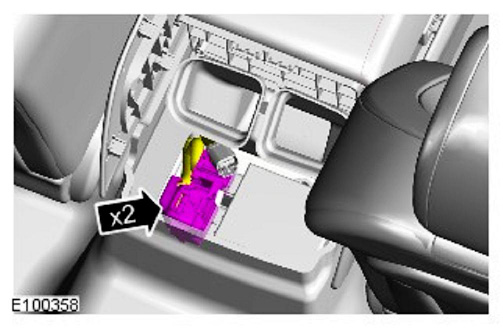

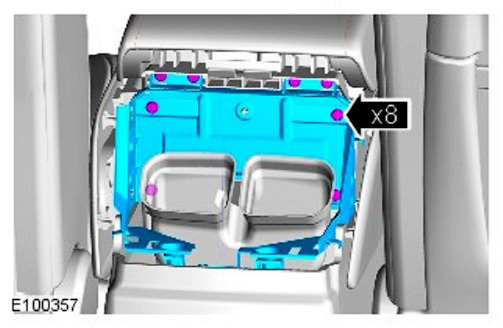

6. Torque: 6 Nm

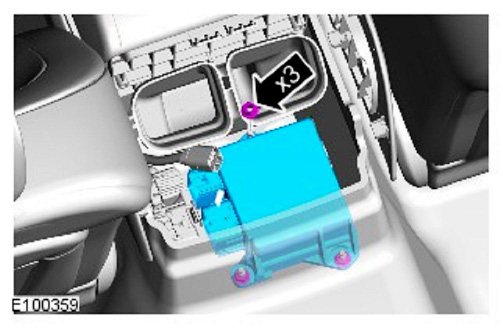

8. NOTE:
- If the SRS component is to be replaced, the bar code of the new unit must be recorded.
- The RCM will record and store impact data. The module must be replaced when three records are noted.

Torque: 10 Nm

Installation

1. To install, reverse the removal procedure.
2. If a new component has been installed, configure using Jaguar approved diagnostic equipment.
