Clearance and Design Specifications

Front
IDENTIFICATION

Differential Identification:

General Specifications:

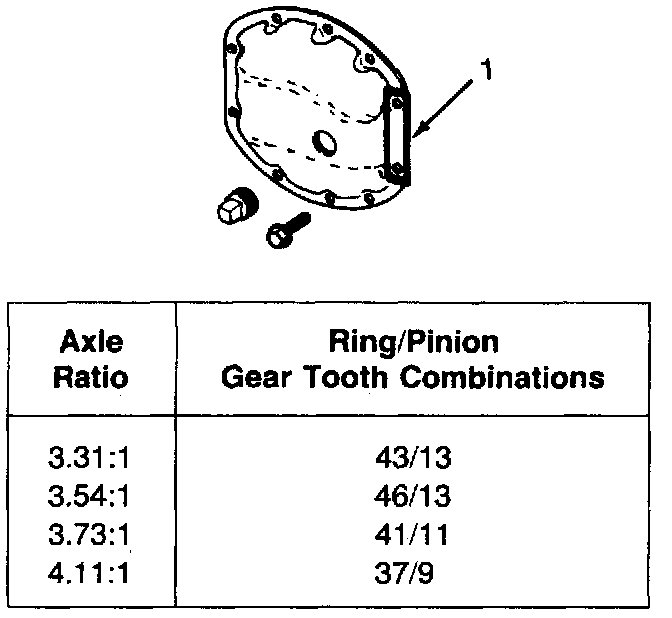

The axle ratio, ring and pinion gear tooth combinations, along with a production identification number are stamped on a tag attached to the differential housing cover (1).

NOTE: The production identification number is a manufacturing assembly number for identification only, and should not be confused with the service replacement part number.

Heavy Duty, Pinion Variance Chart:
