Daytime Running Lamp Control Unit: Service and Repair

REMOVAL

Daytime Running Lamp Module:

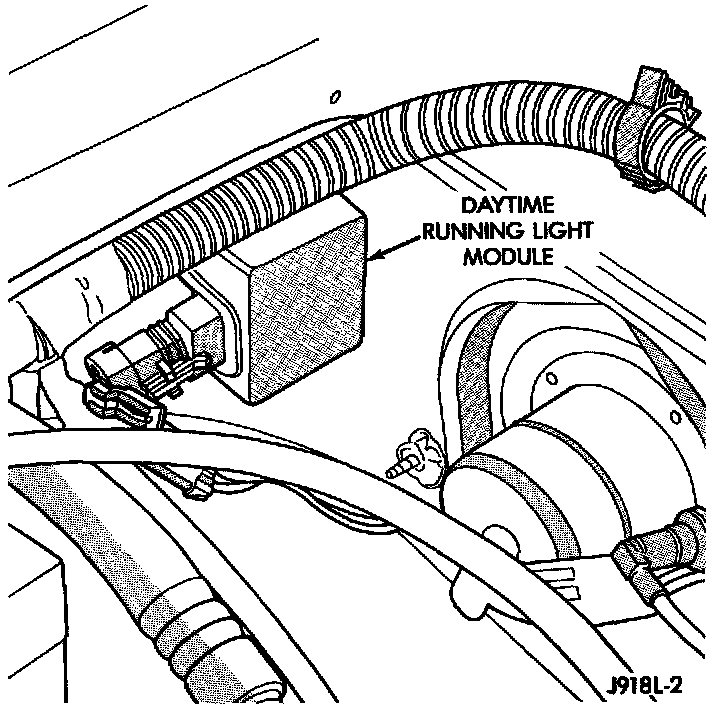

The Daytime Running Lights (DRL) module is located on the right fender inner panel adjacent to the dash panel.
1. Disconnect the wire harness connector from the module.
2. Remove the screws that attach the module to the fender inner panel.
3. Remove the module from the fender inner panel.

INSTALLATION
1. Position the module on the right fender inner panel.
2. Install the attaching screws. Tighten the screws securely.
3. Connect the wire harness connector to the module.
