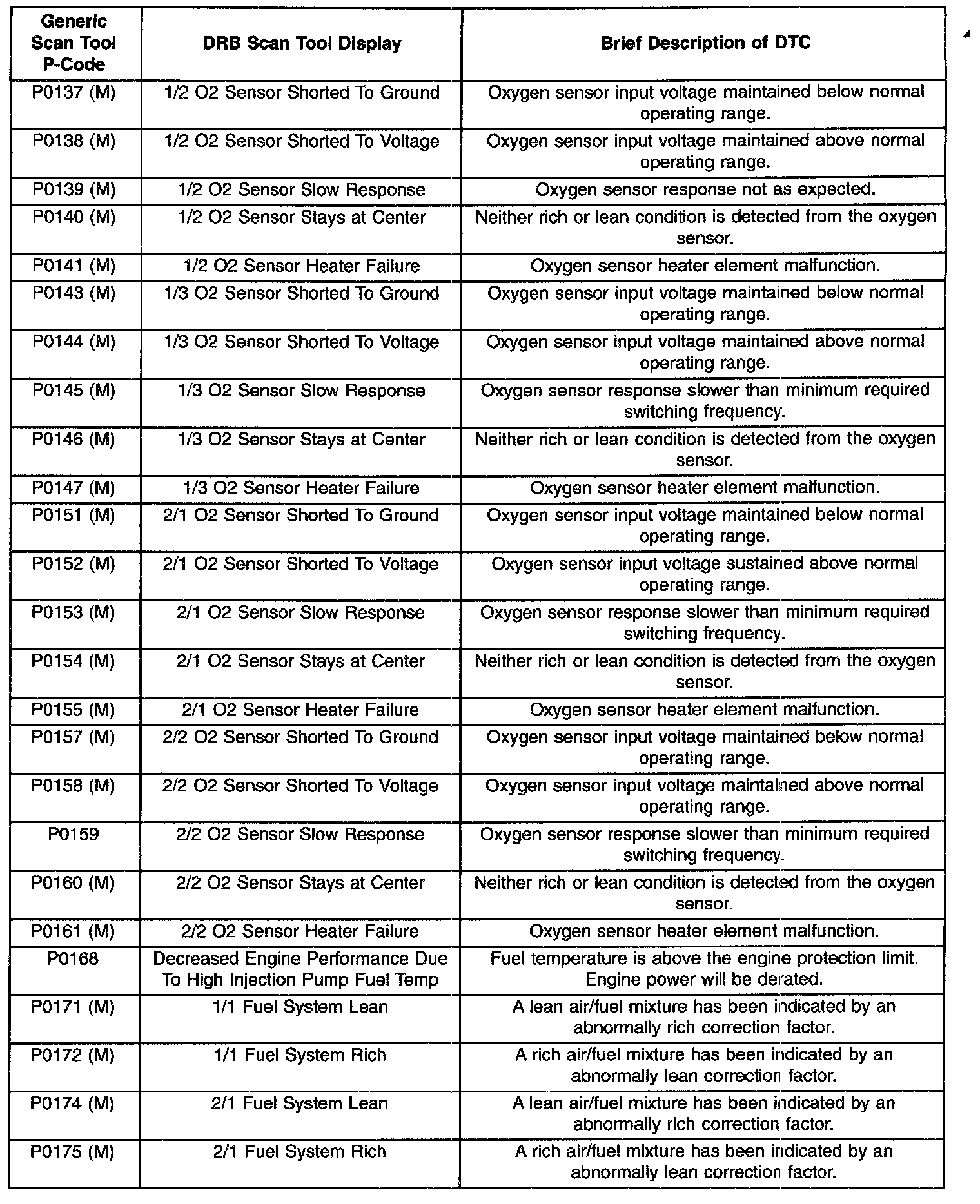

Diagnostic Trouble Code Description Chart (P0137 To P0175):

Diagnostic Trouble Code Description Chart (P0176 To P0230):

Diagnostic Trouble Code Description Chart (P0232 To P0352):

Diagnostic Trouble Code Description Chart (P0353 To P0455):

Diagnostic Trouble Code Description Chart (P0456 To P0645):

Diagnostic Trouble Code Description Chart (P0700 To P0753):

Diagnostic Trouble Code Description Chart (P0756 To P1290):

Diagnostic Trouble Code Description Chart (P1291 To P1478):

Diagnostic Trouble Code Description Chart (P1479 To P1594):

Diagnostic Trouble Code Description Chart (P1594 To P1690):

Diagnostic Trouble Code Description Chart (P1691 To P1762):

Diagnostic Trouble Code Description Chart (P1762 To P1899):

DIAGNOSTIC TROUBLE CODES
OPERATION
A Diagnostic Trouble Code (DTC) indicates that the Powertrain Control Module (PCM) has recognized an abnormal condition in the system.

DTC's are the results of a system or circuit failure, but do not directly identify the failed component or components.

Technicians must retrieve stored DTC's by connecting the DRB III scan tool (or an equivalent scan tool) to the 16-way data link connector. This connector is located on the lower edge of the instrument panel near the steering column.

Obtaining DTC's

WARNING: APPLY PARKING BRAKE AND/OR BLOCK WHEELS BEFORE PERFORMING ANY TEST ON AN OPERATING ENGINE.

1. Connect the DRB scan tool to data link (diagnostic) connector.
2. Turn the ignition switch on, access Read Fault Screen. Record all the DTC's shown on the DRB scan tool.
3. To erase DTC's, use the Erase Trouble Code data screen on the DRB scan tool.


NOTE: For a list of DTC's, refer to the charts.

DIAGNOSTIC TROUBLE CODE
DESCRIPTIONS
M. CHECK ENGINE lamp (Malfunction Indicator Lamp or MIL) illuminated during engine operation if this DTC was recorded (depending if required by CARB and/or EPA).
G. Generator lamp illuminated
