Disassembly

1. Remove transmission from vehicle.
2. Install a suitable tail shaft housing plug to avoid contaminating internal components with cleaning solvents.
3. Clean exterior of transmission with suitable solvent or pressure washer.
4. Remove torque converter from transmission.
5. Remove throttle and shift levers from valve body manual shaft and throttle lever shaft.

Fig. 69:

6. Mount transmission in repair stand C-3750-B or similar type stand (Fig. 69).
7. Remove extension housing.
8. Remove fluid pan.

Fig. 70:

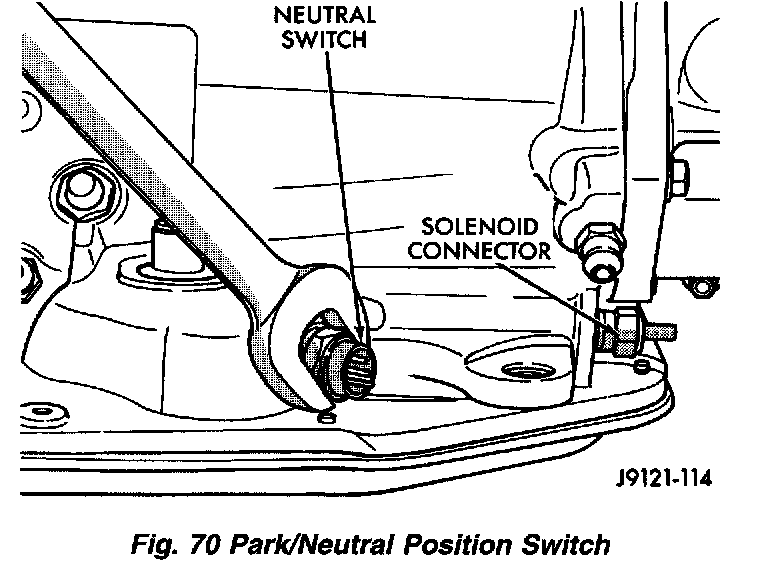

9. Remove [1][2]park/neutral position switch and seal (Fig. 70).
10. Remove valve body.

Fig. 71:

11. Remove accumulator spring and piston (Fig. 71).

NOTE: The 32RH is equipped with an additional spring under the accumulator piston.

Fig. 72:

12. Loosen front band adjusting screw lock nut (Fig. 72) 4-5 turns. Then tighten band adjusting screw until band is tight around front clutch. This prevents front/rear clutches from coming out with pump and possibly damaging clutch or pump components.
13. Remove oil pump bolts.

Fig. 73:

14. Thread bolts of Slide Hammer Tools C-3752 into threaded holes in pump body flange (Fig. 73).
15. Bump slide hammer weights outward to remove pump and reaction shaft support assembly from case (Fig. 73).
16. Loosen front band adjusting screw until band is completely loose (Fig. 72).

Fig. 74:

17. Squeeze front band together and remove band strut (Fig. 74).

Fig. 75:

18. Remove front and rear clutch units as an assembly. Grasp input shaft, hold clutch units together and remove them from case (Fig. 75).

Fig. 76:

19. Lift front clutch off rear clutch (Fig. 76). Set clutch units aside for overhaul.

Fig. 77:

20. Remove output shaft thrust washer from output shaft (or from rear clutch hub) (Fig. 77).
21. Remove output shaft thrust plate and washer from output shaft hub (Fig. 77).

Fig. 78:

22. Remove front band from case (Fig. 78).
23. Remove extension housing from transmission case.
24. Remove governor body and park gear from output shaft.

Fig. 79:

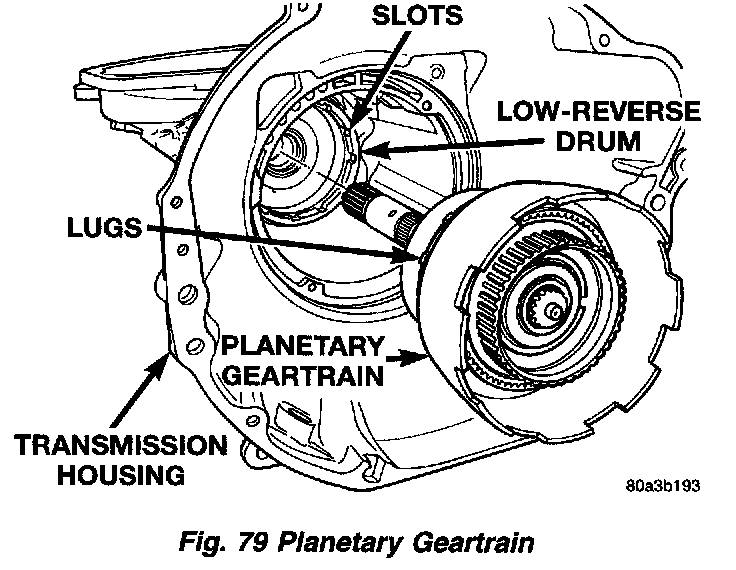

25. Remove output shaft and planetary gear-train as assembly (Fig. 79). Support gear-train with both hands during removal. Do not allow machined surfaces on output shaft to become nicked or scratched.

Fig. 80:

26. Loosen rear band adjusting screw 4-5 turns (Fig. 80).

Fig. 81:

27. Remove snap ring that secures low-reverse drum to rear support hub, however do not remove drum (Fig. 81).

Fig. 82:

28. Remove bolts attaching rear support to transmission case and pull support from low-reverse drum (Fig. 82).

Fig. 83:

29. Remove bolts attaching overrunning clutch cam and low-reverse drum to transmission case (Fig. 83).

REAR BAND-32RH.
30. Remove rear band. The 32RH transmission is equipped with a double-wrap band that does not require a link bar.

Fig. 84:

a. Remove low-reverse drum and overrunning clutch as assembly. Slide drum and clutch through rear band and out of case (Fig. 84). Set drum and clutch assembly aside for cleaning and inspection.
b. Remove rear band from case (Fig. 84).
31. Remove rear band. The 30RH transmission is equipped with a single-wrap band with a link bar.
a. Using snap-ring pliers, pull rear band anchor pin (located on the servo side of the rear support) From transmission case.

Fig. 85:

b. Remove rear band and link from transmission (Fig. 85).

Fig. 86:

c. Separate rear band from link (Fig. 86).
32. If necessary remove front and rear band servo levers. All transmission components can be serviced without removing the levers.

Fig. 87:

a. Using a 1/4 inch drive extension remove front band reaction pin access plug (Fig. 87).

Fig. 88:

b. Remove front band reaction pin with pencil magnet. Pin is accessible from converter housing side of case (Fig. 88).

Fig. 89:

c. Remove front band lever (Fig. 89).

Fig. 90:

d. Using snap-ring pliers, pull rear band lever pivot from transmission case (Fig. 90).
e. Separate rear band servo lever from transmission.

Fig. 91:

33. Compress front servo rod guide about 1/8 inch with large C-clamp and Tool C-4470, or Spring Compressor Tool C-3422-B (Fig. 91).
34. Remove front servo rod guide snap ring (Fig. 91). Exercise caution when removing snap ring. Servo bore can be scratched or nicked if care is not exercised.
35. Remove compressor tools and remove front servo rod guide, spring and servo piston.

Fig. 92:

36. Compress rear servo spring retainer about 1/16 in. with C-clamp and Tool C-4470 or SP-5560 (Fig. 92). Valve Spring Compressor C-3422-B can also be used to compress spring retainer.
37. Remove rear servo spring retainer snap ring. Then remove compressor tools and remove rear servo spring and piston.
