System Specifications

General:

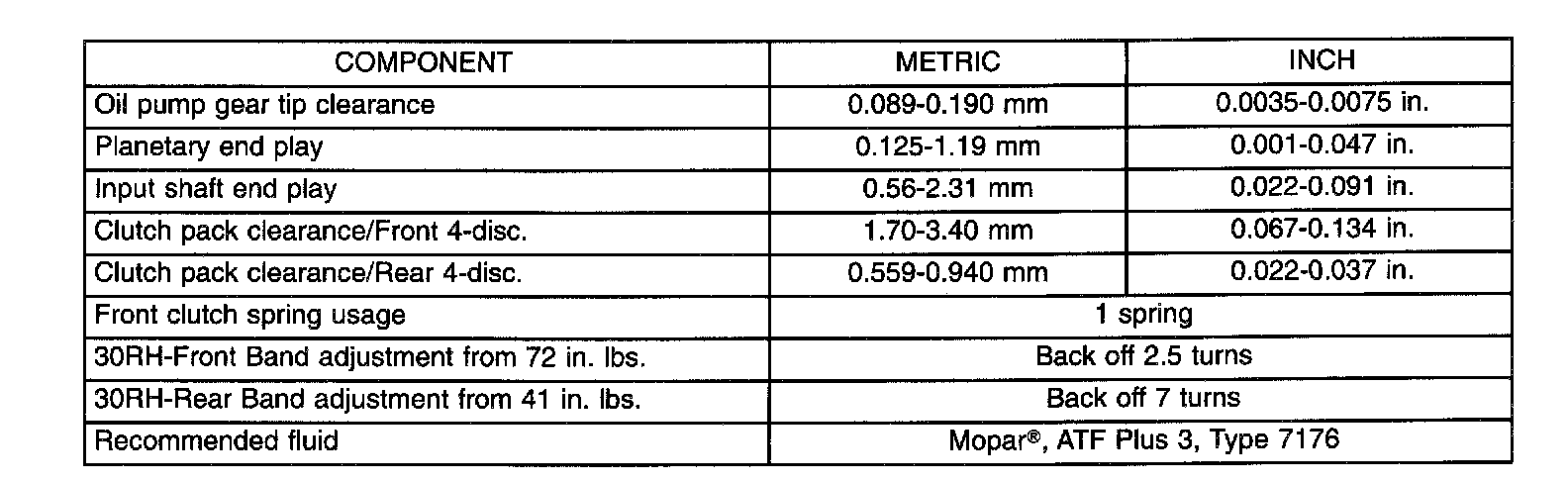

SPECIFICATIONS


General:

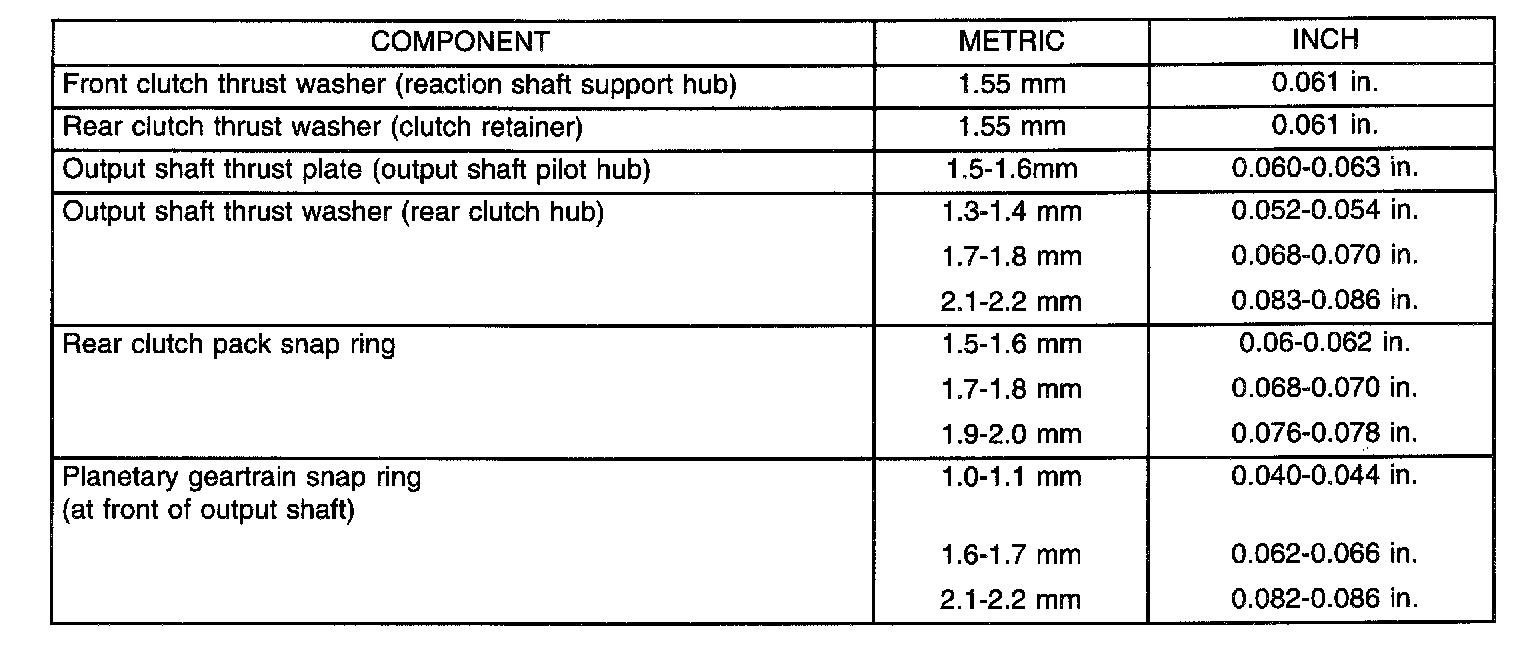

THRUST WASHER/SPACER/SNAP RING DIMENSIONS


General:




Pressure:

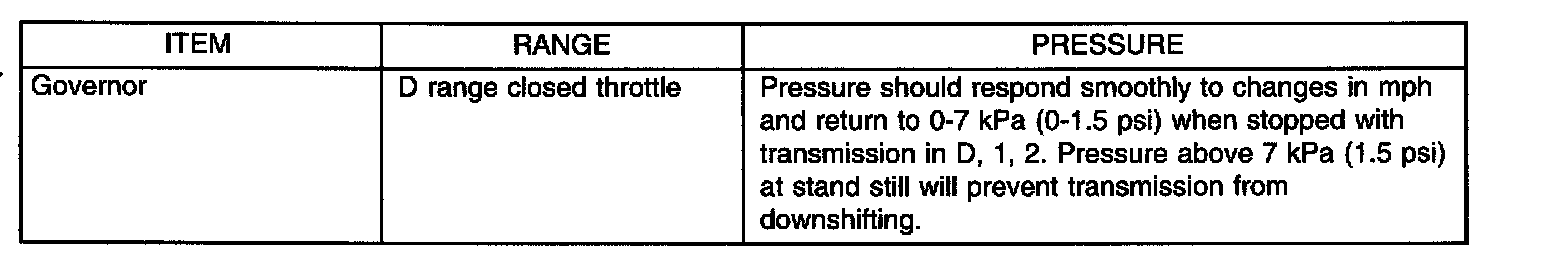

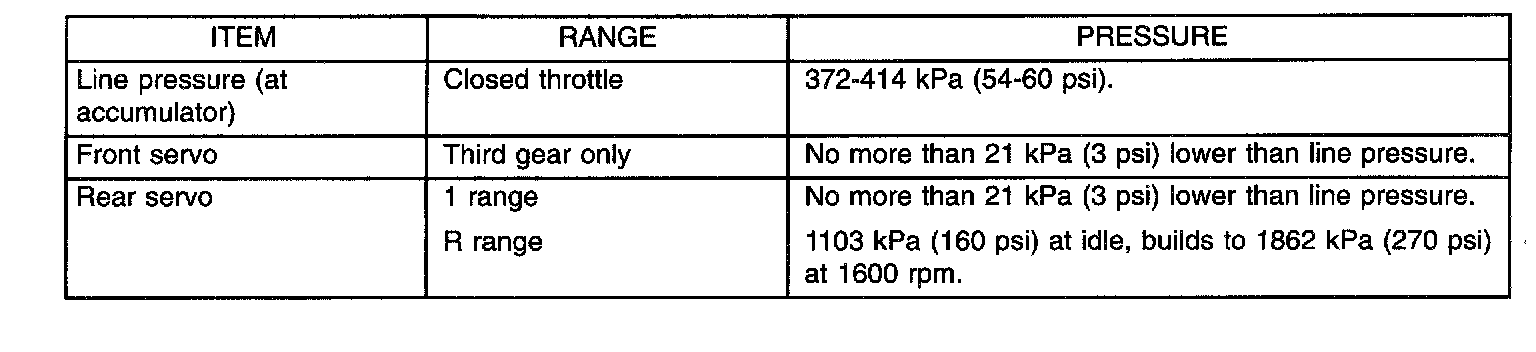

PRESSURE TEST-ALL


Torque:

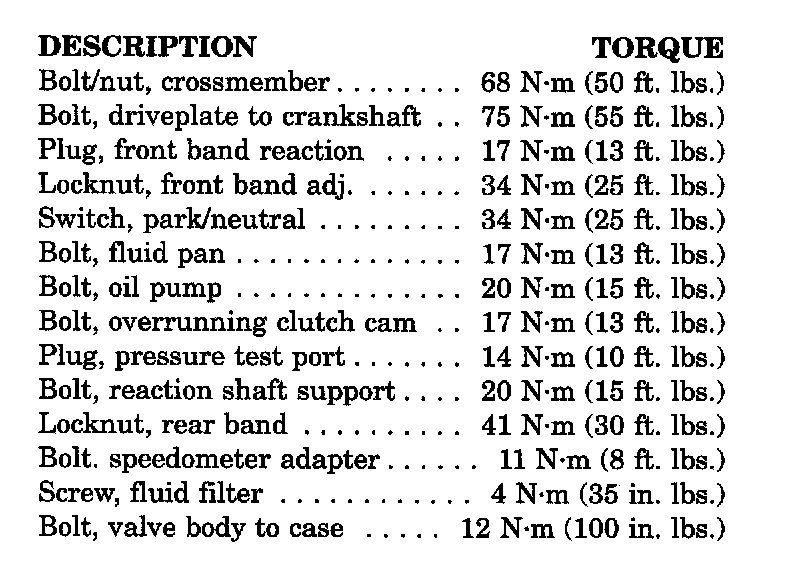

TORQUE
