Grand Cherokee 2WD L6-4.0L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module
Powertrain Control C1 - Black 32 Way:

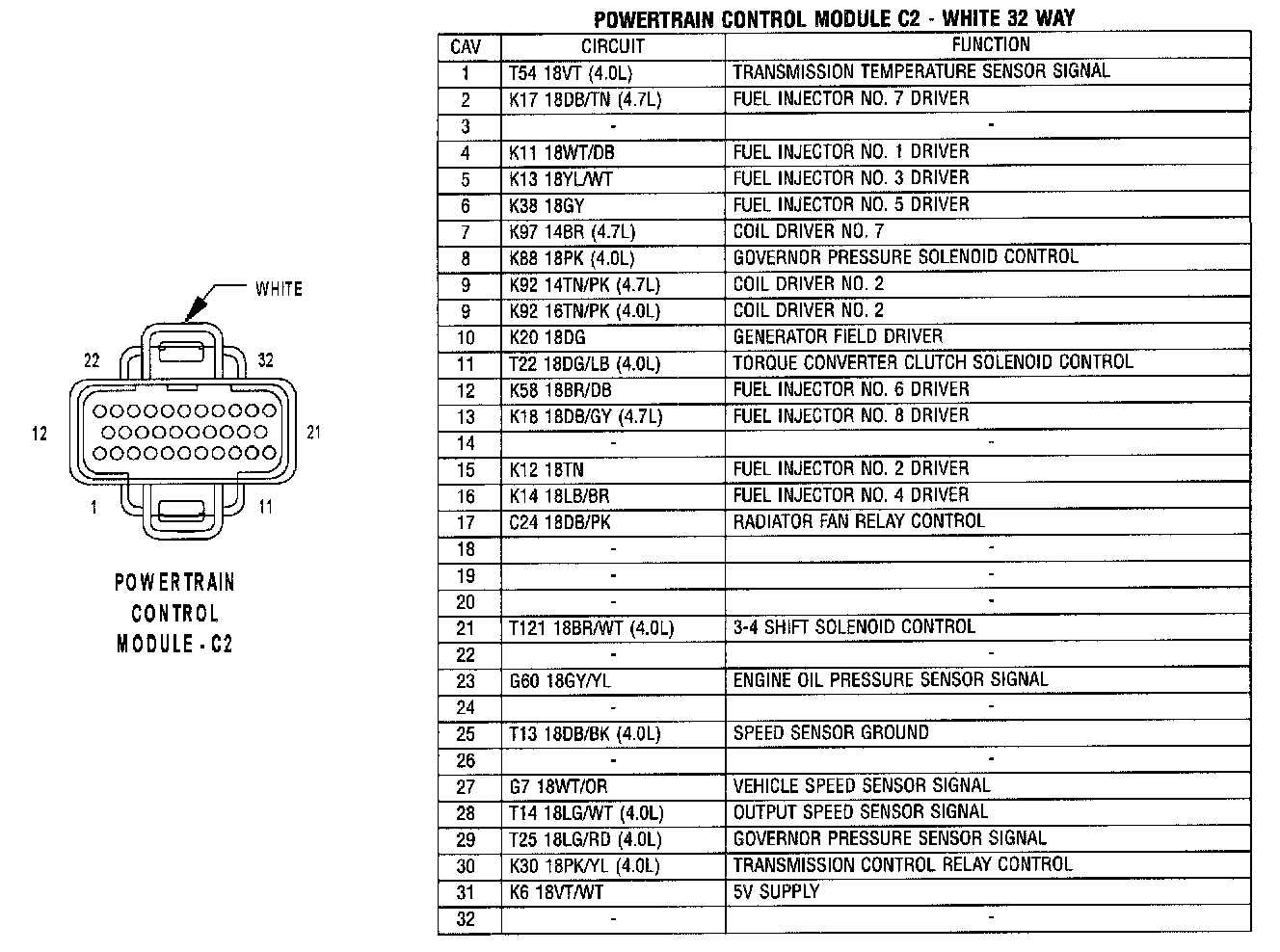

Powertrain Control Module C2 - White 32 Way:

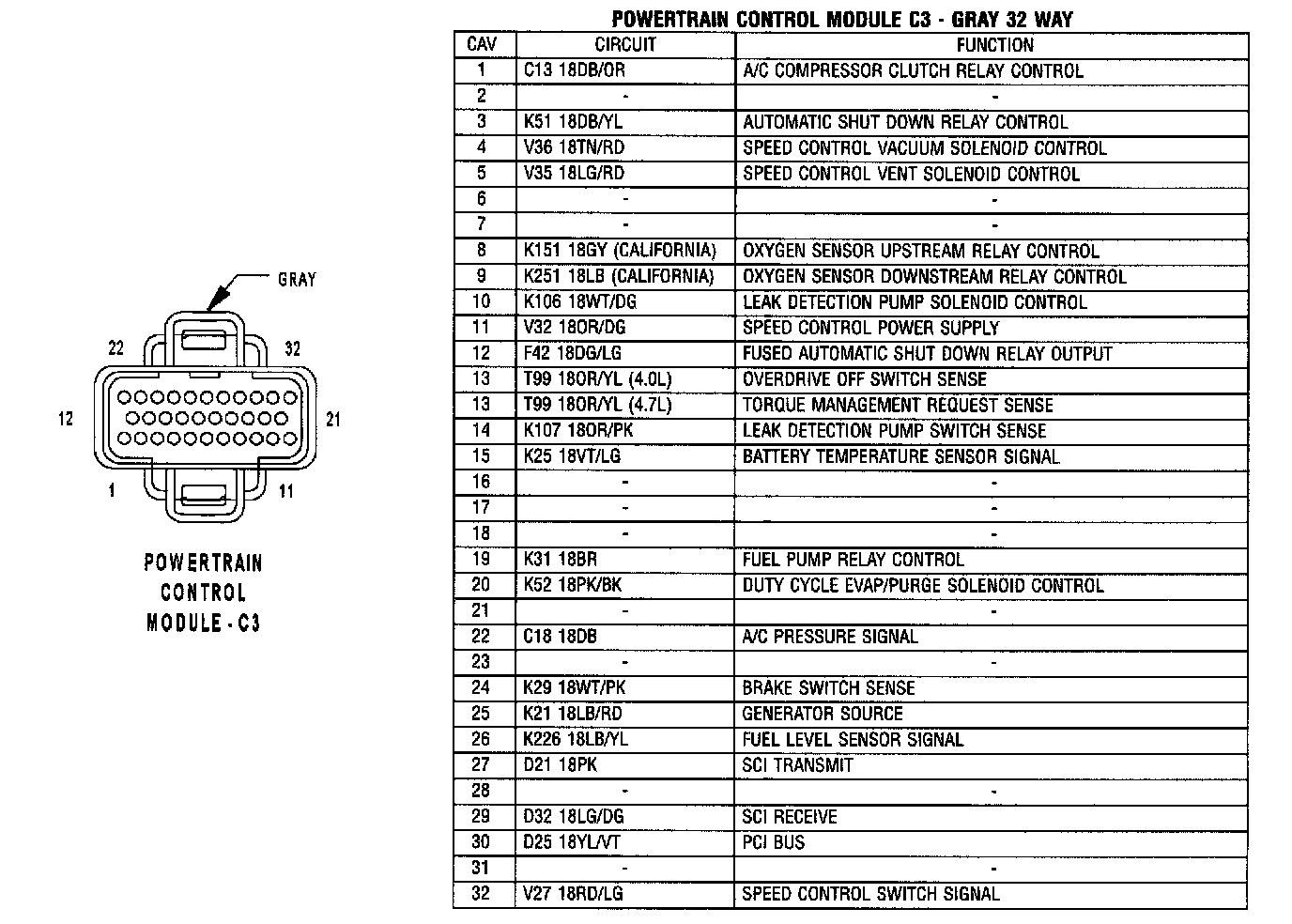

Powertrain Control Module C3 - Gray 32 Way:
POWERTRAIN CONTROL MODULE
