Driver Squib Circuit Open (Active)

Test 1:

Tests 2 - 3:

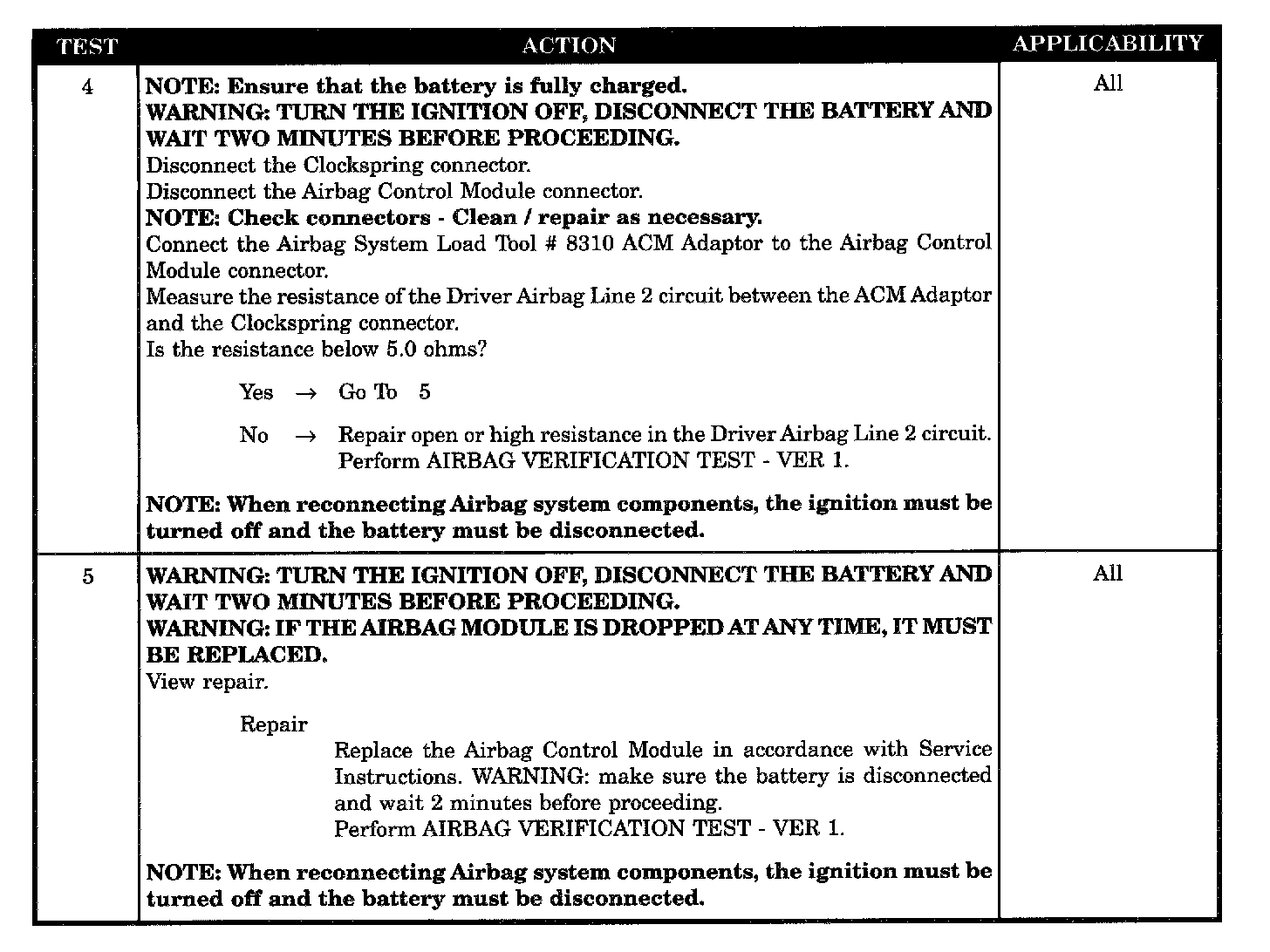

Tests 4 - 5:

SYMPTOM
DRIVER SQUIB CIRCUIT OPEN - ACTIVE

WHEN MONITORED
When the ignition is ON, the ACM monitors the resistance of the Driver Squib circuits.

SET CONDITION
The ACM has detected an open circuit or high resistance in the Driver Squib circuits.

POSSIBLE CAUSES
- Driver airbag circuits open
- Clockspring, driver airbag circuits open
- Driver airbag line 1 open
- Driver airbag line 2 open
- ACM, driver airbag circuit open
