Position Sensor/Switch, Differential Lock

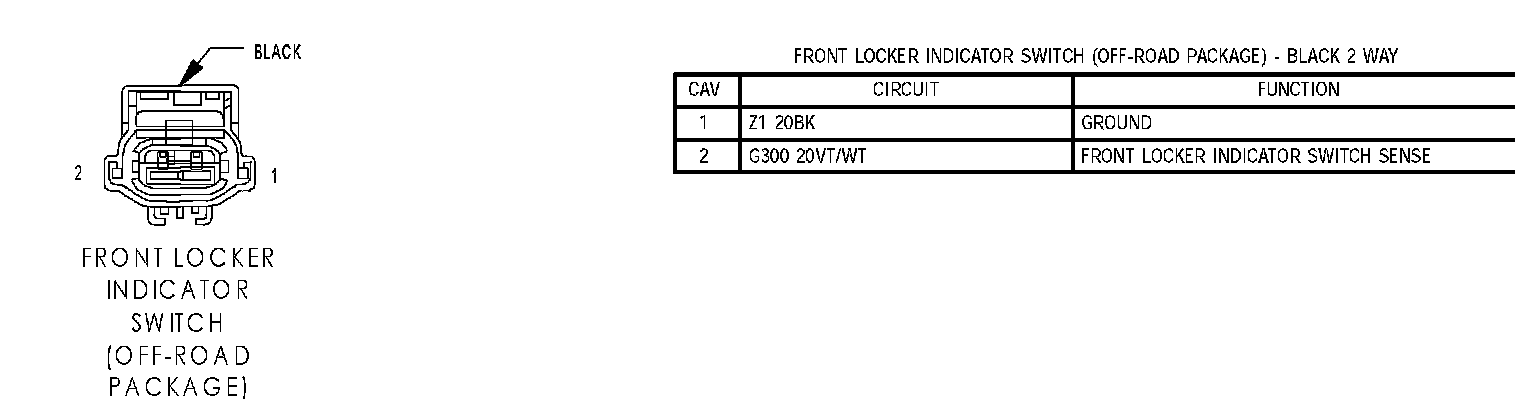

Front Locker Indicator Switch (Off-Road Package):

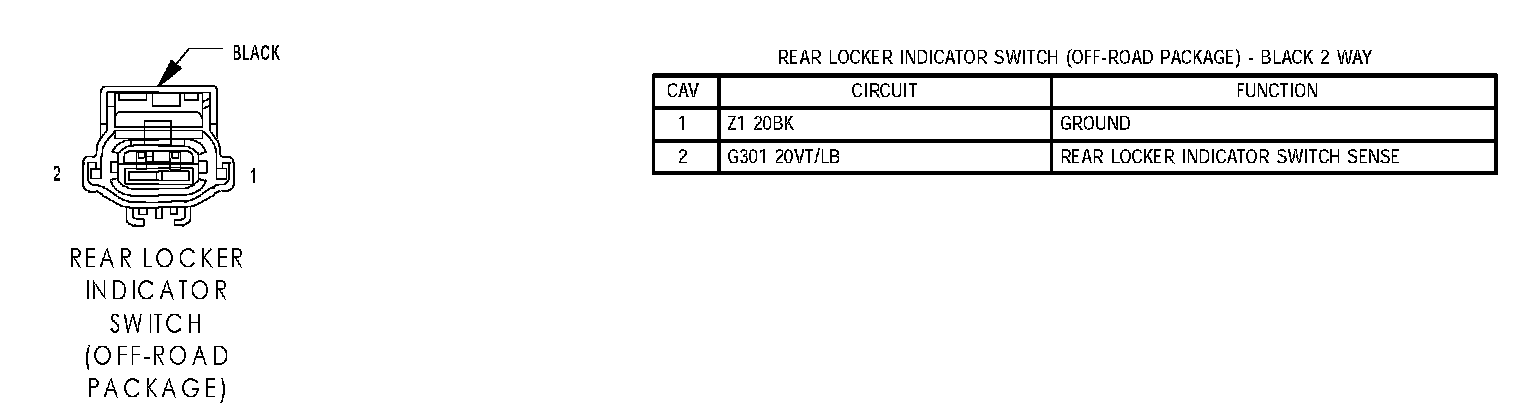

Rear Locker Indicator Switch (Off-Road Package):
