"No Bus" In VF Display

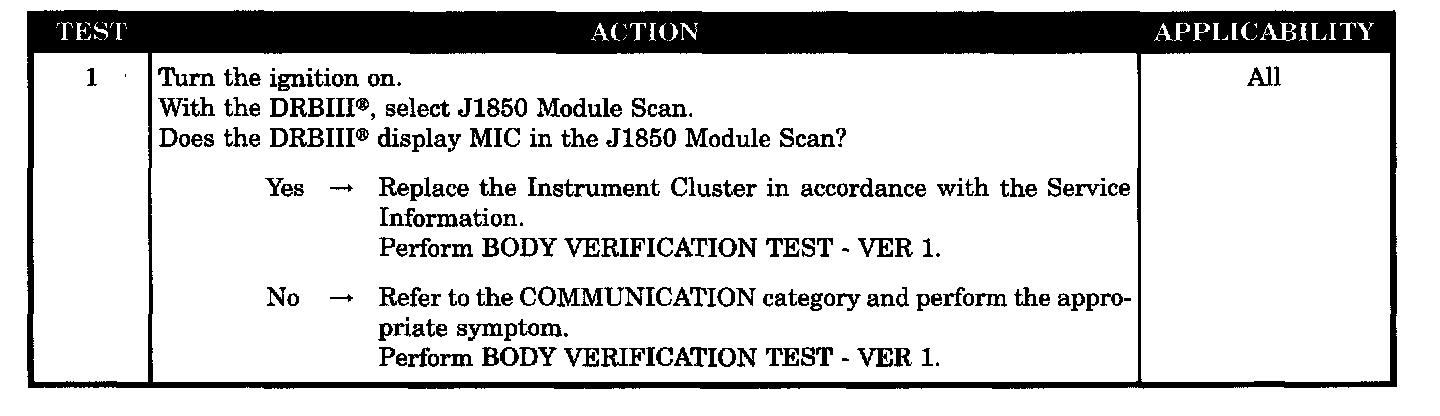

Test 1:






SYMPTOM
"NO BUS" IN VF DISPLAY

- PCI bus messages not rec'd by MIC
- Instrument cluster
